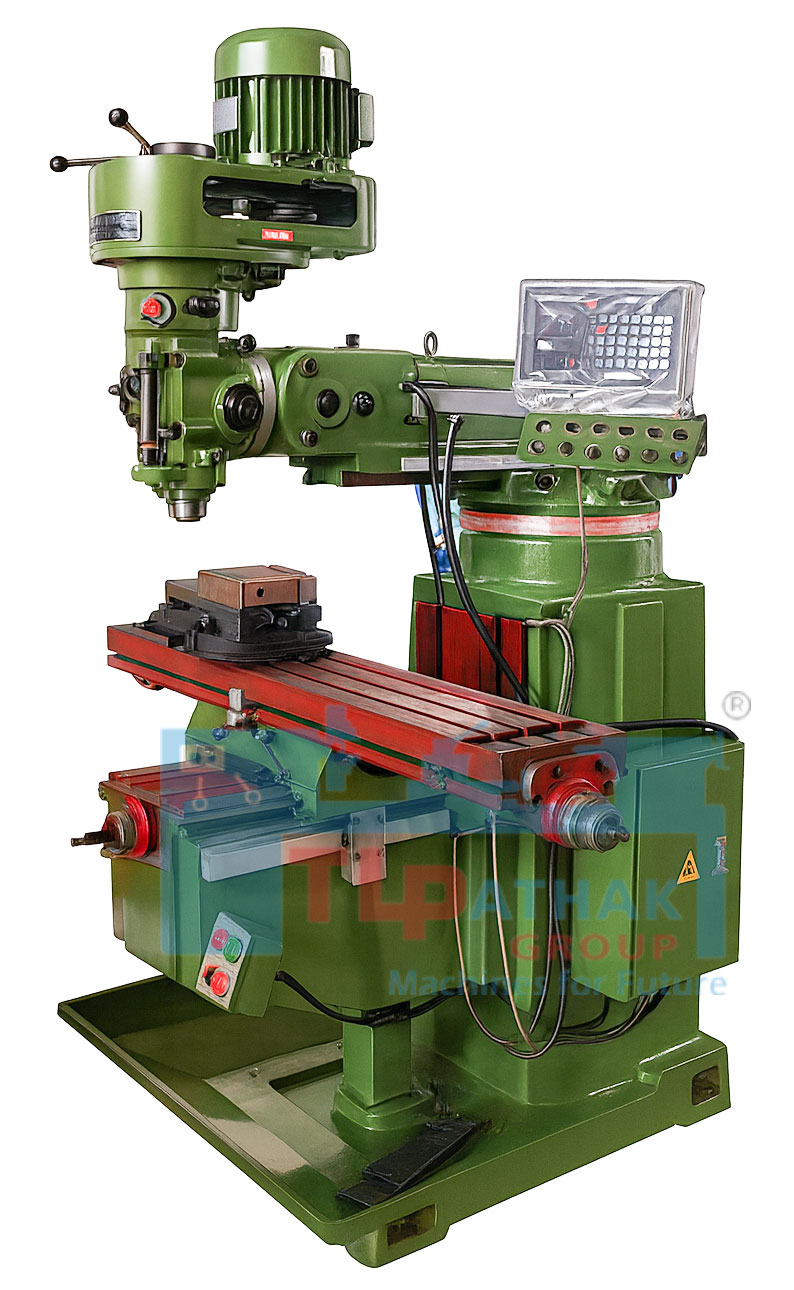

Ram Turret Milling Machine
Milling MachinesDownload Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
Machine Vice
Milling Chuck
Spanner
Horizontal Milling Hilt
Boring Head
BS Universal Diving Head
Clamping Kit
DRO
Universal Dividing Head
Slotting Head
V/H Rotary Table
Rotary Table
| MODEL | RTM 3 | RTM 4 | RTM 4A | RTM 4B | RTM 5 |
| Table size | 1270mm x254mm | 1370mm x 254mm | 1370mm x 254mm | 1370mm x 254mm | 1370mm x 305mm |
| T- Slot | 3 x16mm | 3 x16mm | 3 x 16mm | 3 x 16mm | 3 x 16mm |
| X- Axis | 760mm | 860mm | 860mm | 860mm | 900mm |
| Travel Y- Axis | 400mm | 400mm | 400mm | 400mm | 445mm |
| Z- Axis | 405mm | 405mm | 405mm | 405mm | 485mm |
| X- Axis | ? | ? | ? | ? | ? |
| Guide Way Y-Axis | ? | ? | ? | ? | ? |
| Z-Axis | ? | ? | ? | ? | ? |
| Ram Travel | 510mm | 580mm | 580mm | 580mm | 580mm |
| Spindle Taper | R8(NT30-Optional) | R8(NT30-Optional) | R8(NT30-Optional) | R8(NT30-Optional) | NT40 |
| Quill Travel | 127 | 127 | 127 | 127 | 127 |
| Spindle Nose to Table | 0-440mm | 0-440mm | 0-440mm | 0-440mm | 0-440mm |
| Head Tilt | 90 Deg Forward & backjeft & right | ||||
| Speed Step Number | 16 | 16 | 16 | 16 | 16 |
| Spindle Speed | 70-4620RPM | 70-4620RPM | 70-4620RPM | 70-4620RPM | 70-4620RPM |
| Quill Feed | 0.04,0.08,0.15 | 0.04,0.08,0.15 | 0.04,0.08,0.15 | 0.04,0.08,0.15 | 0.04,0.08,0.15 |
| Power | 3HP | 3HP | 3HP | 3HP | 3HP |
We have a team of engineers and professionals to develop an advanced ram turret milling machine that has a stationary spindle and the table is also movable at both perpendicular and parallel to the spindle axis to accomplish cutting. Our machines will help you do cutting by two methods, i.e., by raising or lowering the quill, and by moving the knee. We also have an export option to many foreign nations.

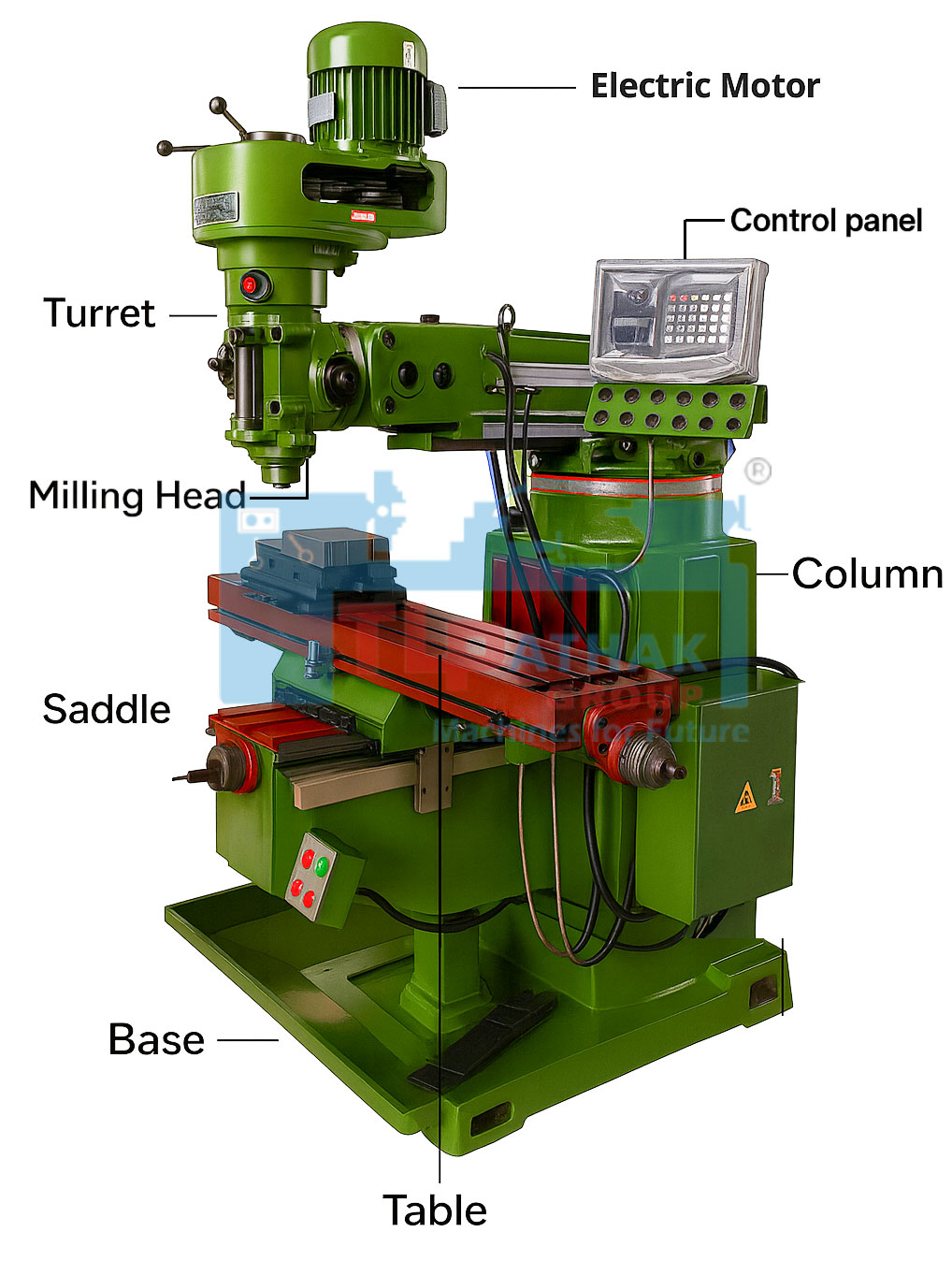

3D angled front view with all parts labeled for All Ram Turret Milling Machine
Key Features:
| Turret Head Design The milling head is mounted on a ram, which is attached to a turret that can rotate 360°. This allows the operator to position the milling head at any angle, enabling machining of complex and angled surfaces. |
| Ram Movement The ram can slide back and forth, increasing the machine’s reach and making it suitable for large workpieces. |
| Versatility It can perform both vertical and horizontal milling by adjusting the ram and turret head. |
| High Precision The rigid construction ensures accurate machining and fine surface finish. |
| Ease of Operation With multiple adjustable axes, it is user-friendly and suitable for tool rooms, workshops, and production units. |
Tool Rooms
Workshops
Small & Medium Scale Industries
Fabrication Workshops
Die & Mould Manufacturers
Slotting and keyway cutting
Drilling metal
Drilling wood
Drilling plastic
