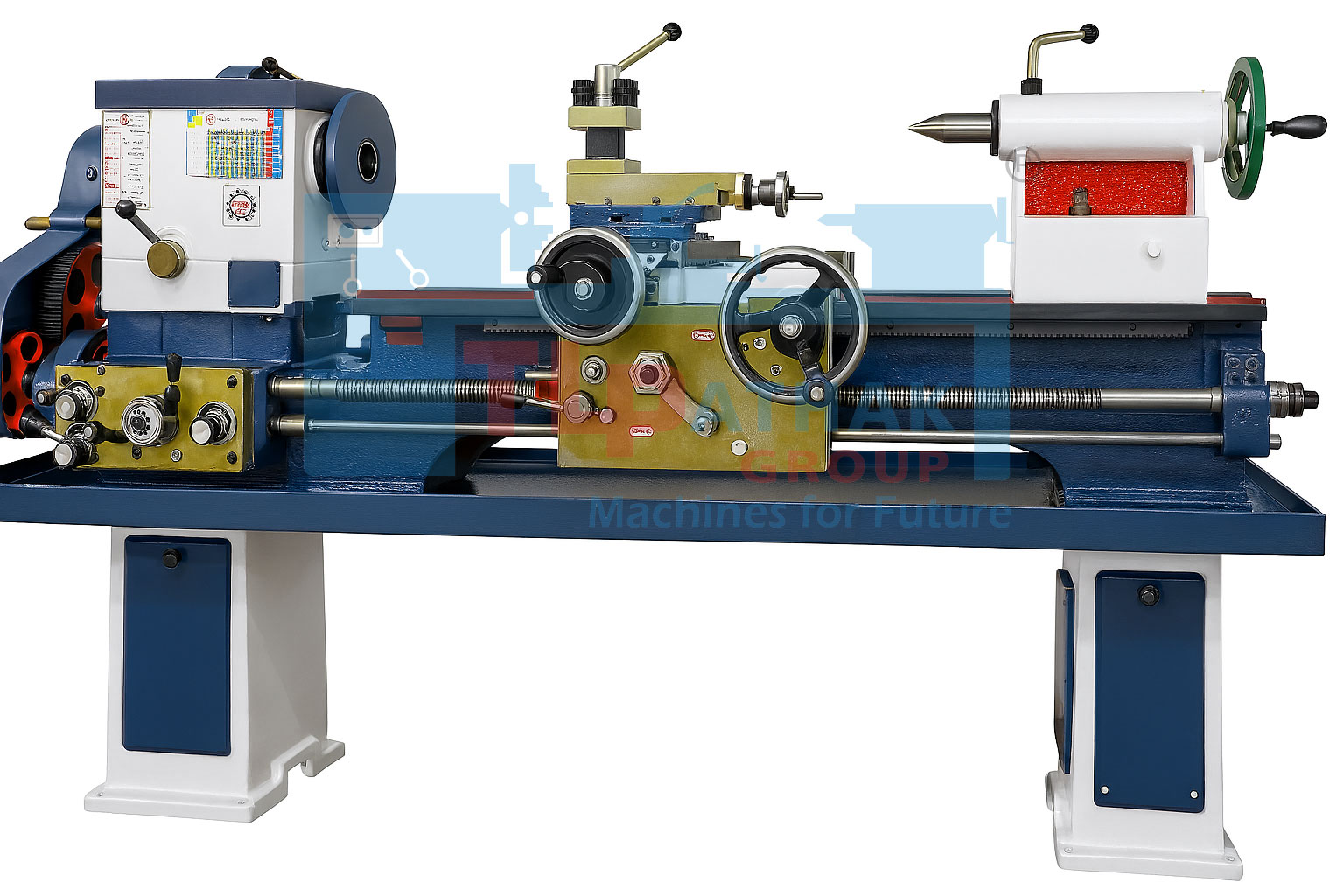

Light Duty Precision Lathe Machine
Lathe MachinesDownload Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
Motor Pulley
Thread Dial Indicator
Chuck Plate (2)
Toot Post Spanner
Dead Center-2 Nos
Face Plate
Follow Rest Assembly
Electric Coolant Pump
Electric Motor & Starter
3jaw self centering chuck
Taper Turning Attachment
Tool Post Grinder
4jaw Independent Chuck
Norton Gear Box
Keyway Cutting Attachment
Steady Rest
| Model | PLD-4 |
| Bed length (With head stock ) | 1370 mm |
| Bed Widht | 235 mm |
| Gap Length | 120 mm |
CAPACITIES |
|
| Height Of Center | 165 mm |
| Swing Over Bed | 320 mm |
| Swing Over Gap | 510 mm |
| Swing Over Cross Slide | 180 mm |
| Admit Between Center | 660 mm |
| Movement of Cross Slide | 215 mm |
| Movement of Compound Slide | 110 mm |
HEAD STOCK |
|
| Taper Bore In Spindle Sleeve | MT-3 |
| Spindle Thread | 6 Tpl |
| Spindle Bore | 41 mm |
| No.of Spindle Speed | 8 |
TAIL STOCK |
|
| Spindle Dia | 38 mm |
| Taper in Spindle | MT-3 |
| Spindle Movment | 125 mm |
THREADS |
|
| Metric Pitch | 1 to 6 mm |
| Pinch Pitch | 2 to 24 Tpl |
| Lead Screw | 4 TPL & 6 Tpl |
ELECTRICAL |
|
| Motor Power | 1 H.P/O.75kw |
DRIVE |
| V Belt |
GENERAL |
|
| Weight (Approx) | 460 KG |
| Floor Space (Approx) | L-1600 mm |
Pathak’s machines are prime in offering one of the most affordable and high-quality light-duty precision lathe machines as this machine is accessible in various specifications as per the needs of the operations of cutting, sliding, surfacing, and so on. These lathe machines are made for home workshops or MRO shops. Our experts manufacture this machine with the help of high-grade components.
| Construction Rigid cast iron body for vibration-free operation |
| Bed Hardened and ground, flat or V-type for precision and stability |
| Headstock Gear or belt-driven with hardened spindle; suitable for variable speeds |
| Tailstock Adjustable for taper turning and accurate center alignment |
| Carriage Equipped with cross slide, compound rest, and tool post for tool movement |
| Speed Range Variable spindle speeds suitable for different materials and operations |
| Chuck Compatibility 3-jaw or 4-jaw independent chucks |
| Threading Capability Metric and imperial threading options (optional change gears) |
3D angled front view with all parts labeled for Light Duty Precision Lathe Machine
| Precision turning of small components |
| Fine threading operations |
| Facing and taper turning |
| Machining non-ferrous metals (aluminum, brass, etc.) |
| Educational and training workshops |
| Model-making and prototyping |
| Repair and maintenance tasks |
| Light-duty shaft turning |
| Manufacturing of custom bolts, screws, and pins |
| Jewellery and watch part machining |
| Ideal for small-scale industries and tool rooms |
| Used in electronics and instrumentation component production |
| Suitable for R&D labs for testing and sample parts |
| Frequently used by hobbyists and artisans |
| Employed in repairing light machine parts |
Country Oil
Ship Building
Power Plants
Steel & Paper Mills
Mining Industries
Rolling Mill
Tool Rooms
Workshops
Small & Medium Scale Industries
Fabrication Workshops
Hydraulic Cylinder Manufacturing
Heavy Engineering
Precision turning of small parts
Making bushings, spacers, pins
Thread cutting and boring
DIY metalworking and model engineering
