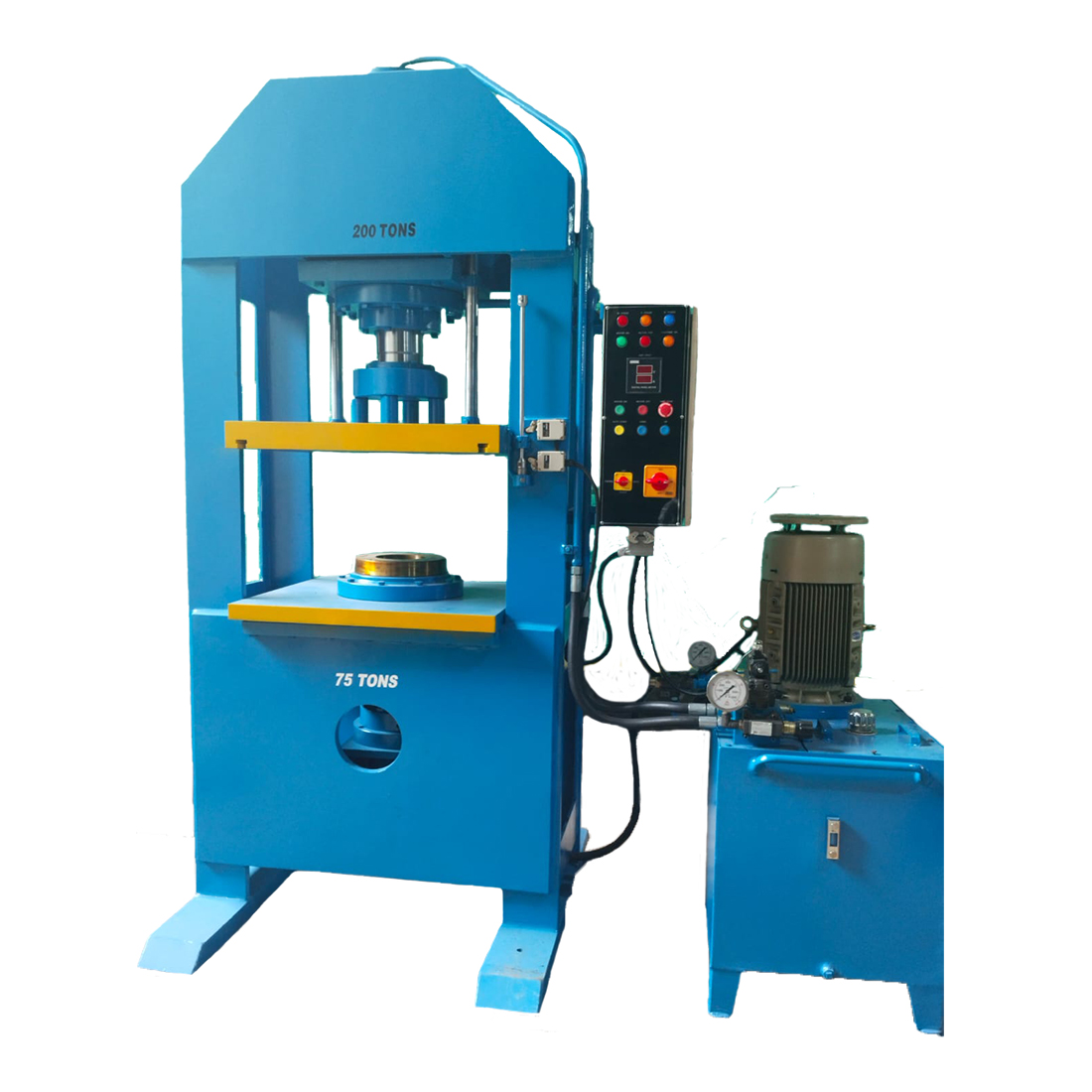

Hydraulic Deep Draw Die Cushion
Press MachinesThe Hydraulic Deep Draw Die Cushion from TL Pathak Group is a cutting-edge solution designed to elevate metal forming processes. Leveraging hydraulic force, it ensures precise and uniform pressure during deep drawing operations, mitigating the risk of wrinkles and defects in metal sheets. This technology plays a pivotal role in enhancing the overall quality and efficiency of deep-drawn components. The die cushion's durability and reliability make it a cornerstone in modern manufacturing, meeting the demands of diverse applications. TL Pathak Group's commitment to innovation and advanced engineering is evident in this solution, providing manufacturers with a tool that optimizes production outcomes and contributes to the seamless execution of metal forming tasks in various industries.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| MODEL | Cap.(Ton) | Platen Size | Day Light Gap (mm) | Main Cylinder Stroke (mm) | Die Cushion Gap (Ton) | Die Cushion Cylinder Stroke (mm) | Die Cushion Table (mm) | Motor (H.P.) |
| RDDP-100 | 100 | 600x600 | 500 | 400 | 40 | 200 | 300x300 | 10 |
| RDDP-150 | 150 | 900x700 | 600 | 400 | 60 | 250 | 600x400 | 20 |
| RDDP-250 | 200 | 1000x800 | 700 | 450 | 80 | 300 | 700x400 | 20 |
| RDDP-400 | 300 | 1200x1000 | 800 | 500 | 150 | 300 | 800x600 | 25 |
| RDDP-500 | 400 | 1200x1200 | 800 | 500 | 200 | 350 | 900x600 | 30 |
| RDDP-600 | 500 | 1400x1200 | 900 | 650 | 200 | 400 | 900x600 | 30x2 |
| RDDP-800 | 600 | 1500x1500 | 1000 | 600 | 250 | 400 | 1000x800 | 30x2 |
| RDDP-1000 | 800 | 1800x1500 | 1200 | 750 | 300 | 450 | 1200x1000 | 40x2 |
| RDDP-1200 | 1000 | 1800x1800 | 1200 | 750 | 350 | 500 | 1500x1200 | 50x2 |
