Manual Surface Grinder

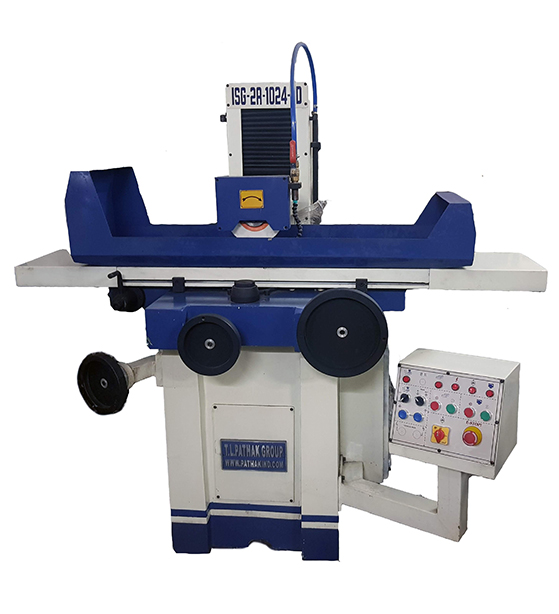

Grinding MachinesThe Manual Surface Grinder is a product which gives accurate results and it is easy to handle. These products are the result of our experts who had planned and have one long year of experience in the manufacturing of precision horizontal surface grinding Machines. The machines need power design with selection of materials, proper manufacturing techniques and craftsmanship.
From ₹
275,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
Magnetic Chuck
Precision Vice
Electromagnetic Chuck
Digital Readout
| Descriptions | Model | PISG-618 A, 1A, 2A, 3A, ED/HD | PISG-820 A, 1A,2A,3A, ED/HD | PISG-1024 A, 1A, 2A, 3A, ED/HD | PISG-1224 A, 1A, 2A 3A, ED/HD |
| Table size | 150x450mm. (6"x18") | 200x500mm (8" 20") | 200x500mm (10" x 24") | 300 x 600 mm (12" x 24") | |
| Max. grinding length | Longitudinal | 475mm (19") | 525mm (21") | 625mm (25') | 625mm (25") |
| Max. grinding Width | Crosswise | 160m (6 1/4) | 212mm (81/2") | 212mm (101/2") | 312mm (12 1/2") |
| Max. Distance from table surface to spindle centerline | 250mm (10") | 400mm (16") | 450 mm (18") | ||
| Standard Magnetic Chuck Size | 160x350mm (6"x14") | ||||
| Longitidinal Movement of table | Hand wheel per rev. | 100mm (4") | |||
| Table speed elect. autofeed | |||||
| Max travel hydraulic | 475mm (19") | 525 mm (21") | 625mm (25") | 625mm (31") | |
| Table speed infinitely variable hydraulc | 50HZ, 5-25 m/min, 60HZ, 5-25 m/min | ||||
| Cross transverse travel | Max. auto transverse travel | 160m (61/4") | 212mm (8 1/4) | 262mm (10 1/2") | 312mm (12 1/2") |
| Handwheel per revolution | 5mm (0.2") | ||||
| Handwheel per graduation | 0.05mm (0.0012 1/2") | ||||
| Auto transverse increment | 1-10mm (0.04"-0.4") | ||||
| Wheelhead Vertical | Handwheel per revolution | 1mm (0.05") | |||
| Handwhee; per gradulution | 0.01 | ||||
| Griding spindle drive | Power rating | 1. H.P | 2 H.P | ||
| Speed | 50 HZ, 2850 RPM., 60HZ, 3450 R.P.M | ||||
| Standard grinding wheel | Diamter | 178mm (7") | 203mm (8") | ||
| Width | 12 mm (1/2") | 19mm (3/4") | |||
| Bore | |||||
| Hydraulic motor | Power rating | 1HP X 6P | 2HP X 6P | ||
| Longitidinal feed motor | Power rating | 1HP X 6P | 1HP X 6P | 2HP X 6P | |
| Floor space | Length x width x height total space require | 1370 x 1020 x 1845 mm (54"x40"x73") | 2030x1370x1630 mm (80" x 54" x 64") | 2450 x 1500 x 1630mm (96" x 61' x 64") | 2500 x 1680 x 2500mm (98"x66"x98") |
| Packing dimesnsions | LxWxH | 1270 x 920 x 1820 mm (50" x 36" x 72") | 1680 x 1270 x 1650 mm (66"x50'x65") | 1780 x 1320 x 1650 mm (70'x52'x65") | 1780 x 1440 x 1700 mm (70" x 56" x 67") |
