All Geared Auto Feed Pillar Drill 40mm
Drill MachinesA Non-Gear Pillar Drill Machine is a manually operated vertical drilling machine that uses a flat belt or V-belt drive system instead of mechanical gear transmission. It is ideal for basic to medium-duty drilling operations where variable speed adjustment is required through pulley changes rather than gearbox control.
- Cost effective and low maintenance
- Simple operation and easy speed adjustment
- Ideal for small-scale and precision work
- Quieter than geared counterparts
From ₹
100,000
To
158,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
| Drilling capacity in Steel | 40mm |
| Spindle Taper | JT-6 |
| Spindle Travel | 87 |
| Pillar Diameter | 48 |
| Pillar Length | 765 |
| Distance btw centre of spindle & pillar front | 150 |
| Max Distance btw Spindle & Table | 390 |
| Max Distance btw Spindle & Base | 503 |
| Table working space | Ø 200 |
| Base Working Surface (Machined) | 175 x 175 |
| Overall size of base | 320 x 320 |
| No of Spindle Speeds | 4 |
| Range of Spindle Speeds (rpm) | 640-1040-1640-2540 |
| V Belt | A 36 |
| Motor | 1/2 H.P |
| Net Weight | 52 Kg |
| Space Occupied (LxBxH) | 390 x 300 x 955 |
We are considered as a brand in the drill machines tools as we provide high and precision drilling machines across the globe to our clients. Our base plate is made of close-grained cast iron to ensure the rigidity and strength of the machine. The machine is made under the supervision of an experienced technical team as they are very much dedicated to their work.
Key Components
| Pillar/Column: Rigid vertical post supporting the head and table. |
| Drill Head: Houses the motor and spindle assembly; manually operated. |
| Belt & Pulley System: Used to change spindle speeds by shifting belts on stepped pulleys. |
| Spindle & Chuck: Holds and rotates the drill bit. |
| Adjustable Work Table: Moves vertically along the pillar; may tilt or rotate depending on the model. |
| Base: Heavy duty casting to provide stability during operation. |

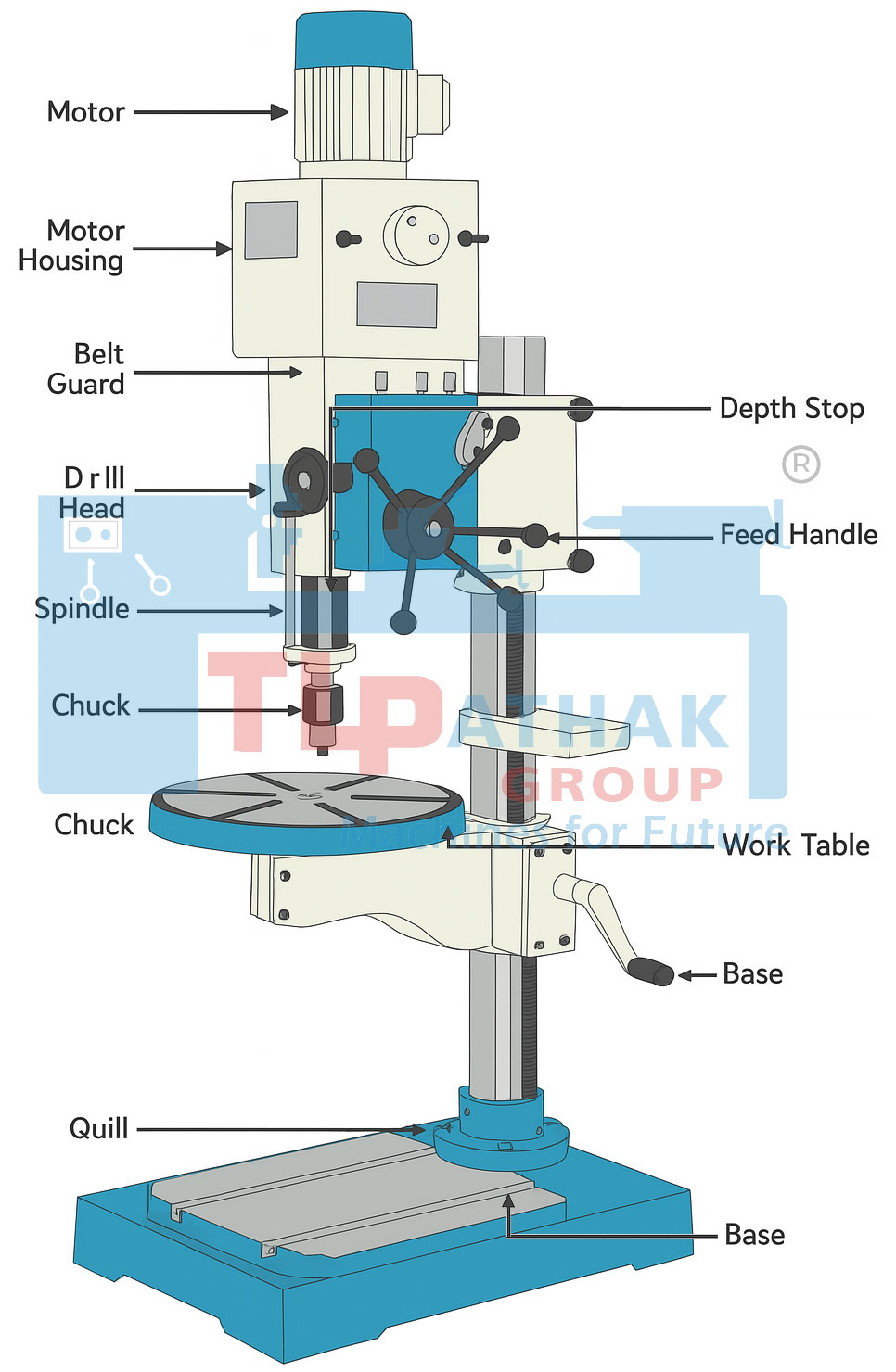

3D angled front view with all parts labeled for All Geared Auto Feed Pillar Drill 40mm
Tool Rooms
Educational Institutes
Workshops
Small & Medium Scale Industries
Fabrication Workshops
Face and end milling
Precision drilling
Fabrication units
Drilling metal
Drilling wood
Drilling plastic
