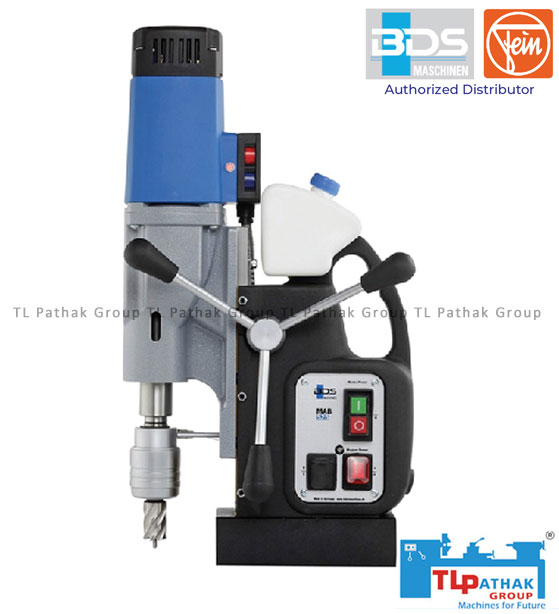

MAB 525 Swivel Base Magnetic Drilling Tapping Machine
Drill MachinesAdvantages
- High Accuracy: Ensures straight and precise holes even on vertical and overhead positions.
- Time-Saving: Faster drilling compared to conventional drilling machines.
- Versatile Application: Suitable for fabrication, construction, maintenance, and industrial workshops.
- Durable Design: Built with a robust motor and rigid body for long service life.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
| EAN | TLP-525 |
|---|---|
| Cutting Depth | 75 mm |
| Twist Drilling | 20 mm |
| Tapping | M20 |
| Reaming | 20 mm |
| Motor Output | 1600 Watts |
| Stroke | 160 mm |
| Magnet Size | 90 x 180 x 48 mm |
| Magnet Power | 13650 N |
| Weight | 16 Kg. |
| Morse Taper | MT3 |
| Speed Gears | 2 |
| Speed 1 | 70 – 280 min-1 |
| Speed 2 | 180 – 580 min-1 |
| Speed 3 | x |
| Speed 4 | x |
| Advantages | Carbon brush indicator, Internal cabling, KEYLESS drill chuck, Magnet indicator, Oil bath gearbox, Reversible motor, Steady watt control, Variable speed & torque |
| Includes | 1 Attached cooling tank, 1 drill drift & 1 taper drift, 1 Gear rim drill chuck, 1 KEYLESS drill chuck, 1 Safety chain, 1 Transport case, 2 ejector pin, 3 Tapping adapters |
| Core Drilling | 50 mm |
| Countersink | 50 mm |
Our swivel base drilling machine allows precise and accurate centering of the hole to be drilled without moving the complete weight of the machine at the same time. We provide a two-speed oil bath gearbox that needs no maintenance in the future. Our team will install the machine without charging any installation charges because we want our customers to be fully satisfied with our services.
3D angled front view with all parts labeled for Magnetic Drilling Cum Tapping Machine
Key Features:
| Core Drilling Capacity: Up to 50 mm diameter with annular cutters. |
| Tapping Capacity: Up to M20 thread size. |
| Magnetic Base: Provides firm grip on metallic surfaces, ensuring vibration-free and precise machining. |
| Multi-Functionality: Performs core drilling, twist drilling, reaming, countersinking, and tapping. |
| Portable & Compact: Easy to carry and use on-site, particularly suitable for steel structures, fabrication, bridges, and heavy engineering works. |
Steel fabrication and erection
Shipbuilding and offshore industries
Heavy machinery maintenance
Bridge construction
Railway track construction
Boiler manufacturing
Pipeline manufacturing
Tank manufacturing
