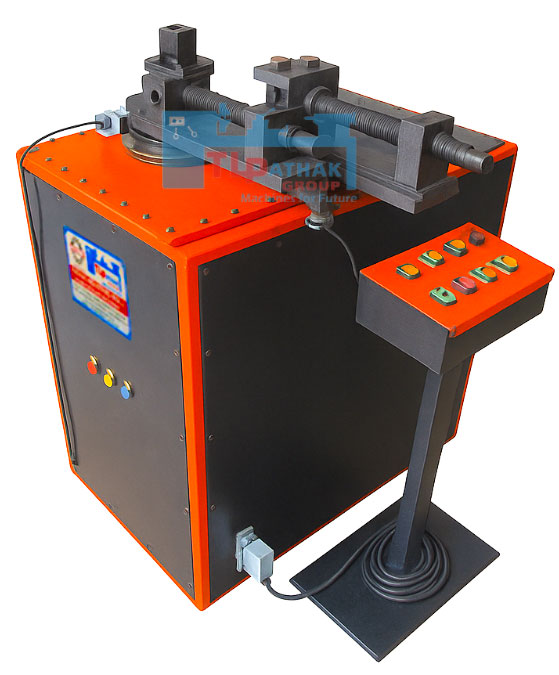

Motor Based Degree Pipe Bending Machines
Section Bending MachineA Motor Based Degree Pipe Bending Machine is a specialized industrial machine designed to bend pipes and tubes at precise angles using an electric motor as the main driving force. Unlike manual pipe bending tools, these machines provide accuracy, repeatability, and efficiency in shaping pipes for different applications in construction, automotive, furniture, and fabrication industries.
Advantages
- High Accuracy & Consistency compared to manual bending.
- Time-Saving for mass production.
- Reduces Material Waste by minimizing trial-and-error.
- Safe & Easy Operation with push-button controls.
- Customizable for different pipe diameters and bending angles.
From ₹
285,000
To
375,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
Encoder Based Automation
Mandrill System
| Model Name | ROUND PIPE | SQUARE PIPE | ROUND BAR | SQUARE BAR | MOTOR | MOTO RISE | HYDRAULIC | CYLINDER NOS |
| PMBM 1.5''-2 MM | OD 38*2mm | 38*38*2mm | 15mm | 15*15mm | 2 HP | YES | NO | NO |
| PMBM 2''-3 MM | OD 50*3mm | 50*50*3mm | 18mm | 18mm | 3 HP | YES | NO | NO |
| PHBM 2''- 3 MM | OD 50*3mm | 50*50*3mm | 18mm | 18mm | 3 HP | NO | YES | 1 NOS |
| PHBM 2''-5 MM | OD 50*5mm | 50*50*3mm | 20mm | 20mm | 5 HP | NO | YES | 1 NOS |
| PHBM 2.5''-5 MM | OD 63*5mm | 63*63*5mm | 25mm | 25mm | 5 HP | NO | YES | 1 NOS |
| PHBM 3''-5 MM | OD 76*5mm | 76*76*5mm | 28mm | 28mm | 7.5 HP | NO | YES | 1 NOS |
| PHCBM 2''-3 MM | OD 50*3mm | 50*50*3mm | 18mm | 18mm | 3 HP | NO | YES | 3 NOS |
| PHCBM 2''-5 MM | OD 50 5mm | 50*50*3mm | 20mm | 20mm | 5 HP | NO | YES | 3 NOS |
| PHCBM 2.5''-5 MM | OD 63*5mm | 63*63*5mm | 25mm | 25mm | 5 HP | NO | YES | 3 NOS |
| PHCBM 3''-5 MM | OD 76 5mm | 76*76*5mm | 28mm | 28mm | 7.5 HP | NO | YES | 3 NOS |
| PHCBM3.5''- 5 MM | OD 90*5mm | 90*90*5mm | 35mm | 35mm | 7.5 HP | NO | YES | 3 NOS |
| PHCBM 4''-5 MM | OD 114*5mm | 110*110*5mm | 40mm | 40mm | 10 HP | NO | YES | 3 NOS |
This machine provides an automated structure for all your industrial works. This machine has an encoded based system pre-installed in it. It never let you compromise with the quality of the product. This machine perfectly bends and gives shape to your products. With boiler tubes attached to it, this motor based degree pipe bending machine is the best to opt for.

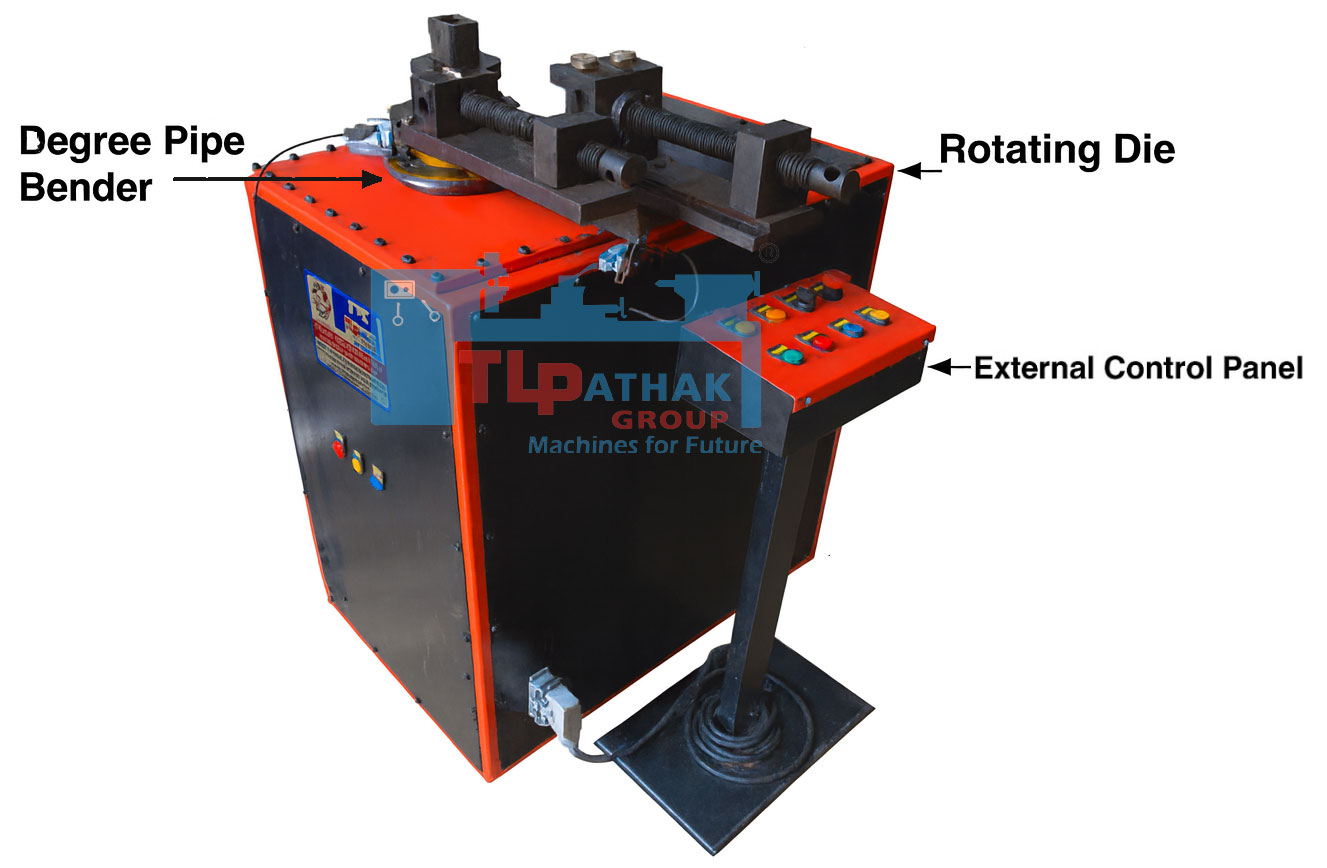

3D angled front view with all parts labeled for Motor Based Degree Pipe Bending Machines
Key Features
| Motorized Operation Powered by an electric motor, eliminating heavy manual labor. | Degree Control Allows precise bending angles (commonly 0° to 180°) as per requirement. |
| Heavy Duty Construction Built with a rigid steel body to handle pipes of different diameters and thicknesses. | Control Panel Equipped with push buttons/switches for forward, reverse, and stop functions. Some models may include digital angle controllers for automatic stopping at the desired bend. |
| Versatility Suitable for steel, stainless steel, copper, aluminum, and PVC pipes depending on the machine’s tonnage and design. | Tooling System Comes with interchangeable dies for bending pipes of various sizes. |
Automotive
Building Construction
Boiler Tubes
Chemical Plants
Electrical Appliances
Furniture
Gymnasium Equipment
Irrigation System
Material Handing Equipment
Stores Display Equipment
