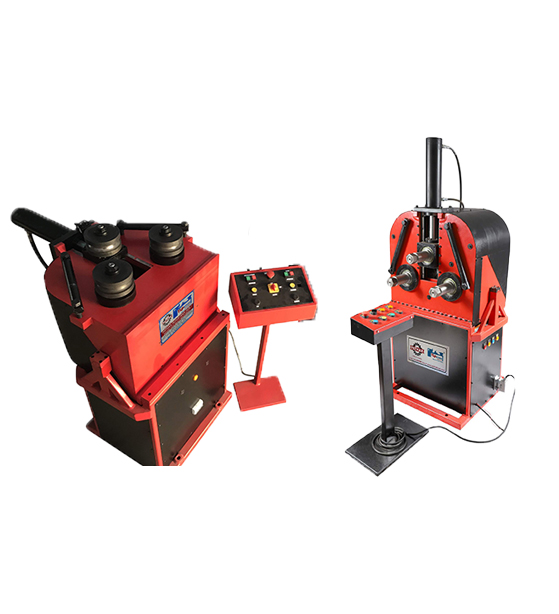

Section Bending Machine
Section Bending MachineWe provide high capacity section bending machine that is best for all your industrial purposes. Our machine comes with a varied range of bending materials like aluminium steel, carbon steel etc. Our machine comes with two style operations i.e electrical and manual. It ensures complete accuracy with minimal error.
From ₹
325,000
To
1,250,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
Standard Roller
Fiber Rollers
Optional Roller
| Model no | PRBM-300 | PHRBM-300 | PRBM-400 | PHRBM-400 | PHDRBM-400 | PHRBM-500 | PHRBM-600 | PHRBM-700 |
| Round pipe | OD50*3mm | OD50*3mm | OD75*5mm | OD75*5mm | OD75*5mm | OD90*5mm | OD100*5mm | OD120*5mm |
| Square pipe | 50*50*3mm | 50*50*3mm | 75*75*5mm | 75*75*5mm | 75*75*5mm | 90*90*5mm | 100*100*5mm | 100*100*5mm |
| Rectanguler pipe | 60*40*3mm | 60*40*3mm | 80*60*5mm | 80*60*5mm | 80*60*5mm | 90*70*5mm | 100*70*5mm | 110*80*5mm |
| Angle | 50*5mm | 50*5mm | 50*6mm | 50*6mm | 50*6mm | 75*7mm | 90*8mm | 100*10mm |
| T-Angle | 100*10mm | 100*10mm | 100*12mm | 100*12mm | 100*12mm | 150*14mm | 180*16mm | 200*20mm |
| Flat Bar | 50*10mm | 50*10mm | 60*10mm | 60*10mm | 60*10mm | 90*10mm | 100*20mm | 100*20mm |
| Channel | 100*50*5mm | 100*50*5mm | 100*50*6mm | 100*50*6mm | 100*50*6mm | 150*75*5mm | 180*90*8mm | 200*100*10mm |
| Round bar | 25mm | 25mm | 30mm | 30mm | 30mm | 35mm | 40mm | 45mm |
| Square bar | 25*25mm | 25*25mm | 30*30mm | 30*30mm | 30*30mm | 35*35mm | 40*40mm | 45*45mm |
| Motor | 3 HP | 3 HP & 1 HP | 5 HP | 5 HP & 1 HP | 7.5 HP & 3 HP | 7.5 HP & 2 HP | 10 HP & 3 HP | 10 & 5 HP |
| Mechinal jack | YES | NO | YES | NO | NO | NO | NO | NO |
| Hydrualic Cylinder | NO | YES | NO | YES | YES | YES | YES | YES |
| Hrozintal & Vertical | YES | YES | YES | YES | NO | NO | NO | NO |
Square Rectangular Pipe
Solid Round & Squares Bars
Angle Flat Bar
Edged Flat Bar
Solid Round Bars
