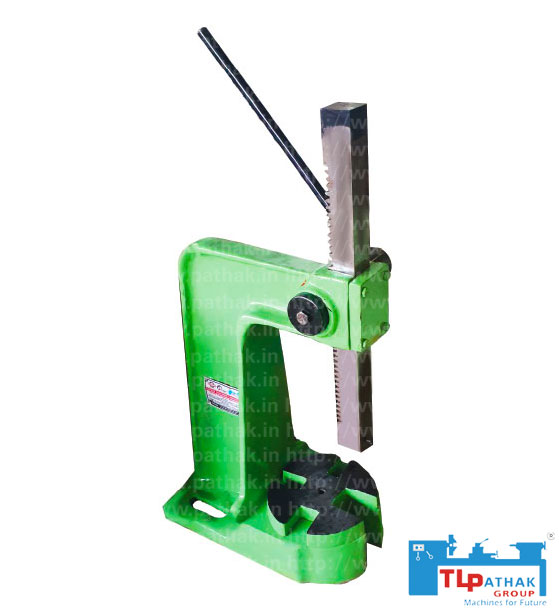

Arbour Press
Press MachinesOur team provides the best quality Arbour Press Machine used in various functions and are Spring Returned Press and performs various smaller tasks like staking, riveting, installing, configuring and removing bearings. Our team made this machine with the latest technology. Hence, various latest features are available that a customer requires, and it's made by premium raw quality material which ensures durability and extended machine life.
From ₹
40,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Arbour Press | Square | Round | ||
| Model No. | Ram | Ram | ||
| AP-1 | AP-2 | AP-3 | AP-4 | |
| Max Pressure Exrted (Tons) | 1 1/2 | 1 | 1 1/2 | 3 |
| Centre to back | 5 1/2 | 6 3/4 | 7 1/2 | 10 |
| Max. high from base to guide | 11 | 12 | 13 1/2 | 18 3/4 |
| Max. High arbour | 9 | 12 | 13 1/2 | 18 3/4 |
| Plate to guide | ||||
| Size of arbour round or square | 1 1/4 | 1/2 | 1 3/4 | 2 3/4 |
| Approx net weight | 35 KG | 60 KG | 80 KG | 140 KG |
