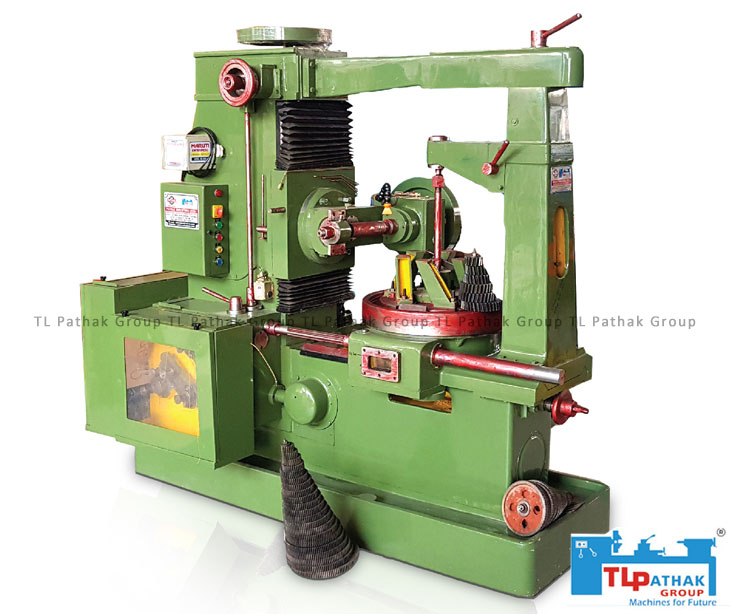

Universal Gear Hobbing Machine
Workshop EquipmentsUniversal Gear Hobbing Machine is used for perform the operation of hobbing on the gears to create the desired teeth profiles. It is gradually creates cut into the martial, usually cylindrically shaped, to form teeth or splines with the help of a special cutting tool, known as the hob. The teeth profiles generated with the gear hobbing machine are quite accurate. It is usually preferred for manufacturing and producing squr and helical gears. The Motor of the machine is mounted on the tailstock that powers the entire operation of the machine. Raw material is first mounted on the chuck rigidly and then the hob is fed to it in order to generate tooth profile.
From ₹
650,000
To
1,254,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Model | GH 450 | GH 750 | GH 800 |
| Maximum Dia. of Spur Gear | 18" | 30" | 24" |
| Minimum Dia. of Spur Gear | 1/2" | 1" | 1" |
| Maximum Module | 5 Module | 8 Module | 6 Module |
| Maxmum Travels of Hob Slide | 10" | 12" | 11" |
| Maximum Helical Gear Cutting - LH/RH | 45" LH/RH | 45" | 45 |
| Diameter of Work Table | 16" | 22" | 18 |
| Work Table Bore | 2" | 3" | 2.5" |
| Maximum Distance b/w Hob & Work Table | 11" | 18" | 1/4" |
| Maximum Dia. of Hob | 4" | 5" | 4" |
| Mounting Taper of Hob Spindle | Mt3 | Mt 4 | Mt 4 |
| Hob Spindle Speed | 6 | 8 | 6 |
| Electricals | |||
| Main Motor Power | 3 H.P | 3 H.P | 3 H.P |
| Rapid Motor Power | 1.5 H.P | 2 H.P | 2 H.P |
