Planer Cum Plano Milling Machine

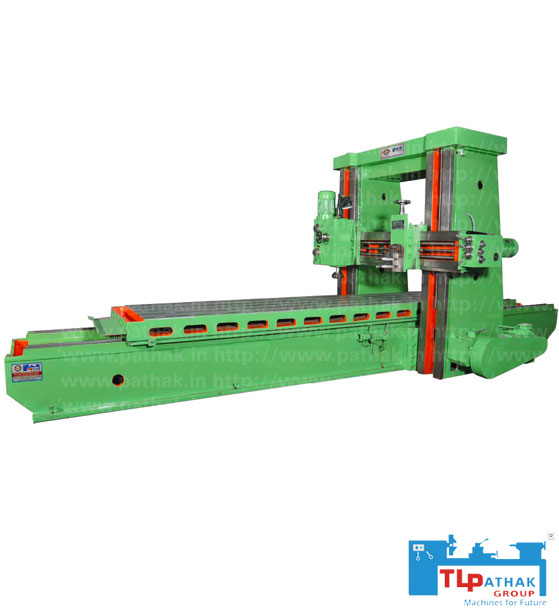

Workshop EquipmentsThe Planer Cum Plano Milling Machine by TL Pathak Group in India is a versatile and efficient tool that combines the functions of a planer and a plano milling machine. It is designed for shaping, surfacing, and milling large workpieces with high precision. This machine features a robust construction and powerful motors, ensuring stability and smooth operation. It offers adjustable feed rates, stroke lengths, and milling speeds, providing versatility for various machining tasks. With its superior craftsmanship and reliable performance, the Planer Cum Plano Milling Machine is a valuable addition to industries such as heavy machinery manufacturing, engineering, and metalworking.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
Step less table feeds & rapid system
Speed range covers both carbide & H.S.S. tools
Fixed or swivel head up to 45
Suitable for milling,Drilling,Facing Boring & Grinding
Safety cluthes for electrical & mechanical interlocking is provided for
Preventing trouble due to faulty operation
Automatic lifting & lowering of cross rail
Forced lubrication for guideways & gearboxes
Rapid operation to cross traverse of the milling head
Digital Read Out
Extra Milling Head on Cross Rail
Boring Head on Either of Side Columns
Grinding Head On Cross Rail
Automatic Locking of the Cross Rail
Bellow covers to the guideways
Optical read out
Right angle milling attachment
| MODEL | 1218/1225/1235 | 1625/1635/1645 | 2035/2045/2060 |
| Table Size (mm) | 800 x 2100/2800/3800 | 950 x 2800/3800/4800 | 1300 x 3800/4800/6300 |
| Table Stroke (mm) | 1800/2500/3500 | 2500/3500/4500 | 3500/4500/6000 |
| No. of T - Slots | 5 | 6 | 8 |
| Width of T - Slots (mm) | 20 | 20 | 20 |
| Distance Between T -Slots (mm) | 145 | 150 | 150 |
| Table Feed Stepless (mm/min) | 40-600 | 40-600 | 40-600 |
| Table Rapid Stepless (mm/min) | 3000 | 3000 | 3000 |
| Table Feed Motor (hp) | 2/3/3 | 3/5/5 | 5/7.5/7.5 |
| Width Between Column (mm) | 1200 | 1600 | 2000 |
Maximum Height under Spindle (mm) |
1000 | 1000 | 1000 |
| Vertical Traverse of cross Rail (mm) | 1030 | 1030 | 1030 |
| Vertical Feed of Cross Rail (mm/min) | 300 | 300 | 300 |
| Cross Rail Feed Motor (hp) | 3 | 3 | 3 |
| Horizontal Traverse of one Saddle (mm) | 1700 | 2100 | 2500 |
| Saddle Cross Feed Motor (hp) | 3 | 3 | 3 |
| Saddle Cross Feed Stepless (mm/min) | 40-600 | 40-600 | 40-600 |
| Saddle Cross Rapid Stepless (mm/min) | 2200 | 2200 | 2200 |
| Milling Head | |||
| RPM | 80-500 | 80-500 | 80-500 |
| Speeds | Variable (2 step) | Variable (2 step)/div> | Variable (2 step) |
| Motor (hp) | 5 | 5 | 5 |
| Spindle Nose | 150-50 | 150-50 | 150-50 |
| Quill Traverse (manual) (mm) | 100 | 100 | 100 |
| Maximum Cutter Die (mm) | 125/160 | 125/160 | 125/160 |
| Swivel (manual) | .45'' | .45'' | .45'' |
| Standard | - | (standard machine comes with one vertical head) | - |
| Optional | - | Up to four (Two on cross slide ) (Two , One each on Both Columns ) | - |
| Overall Size ( L x B x H) | 2700/3750/5250 x 3035 x 2900 | 3750/5250/6750 x 3435 x 2900 | 5250/6750/9000 x 3835 x 2900 |
