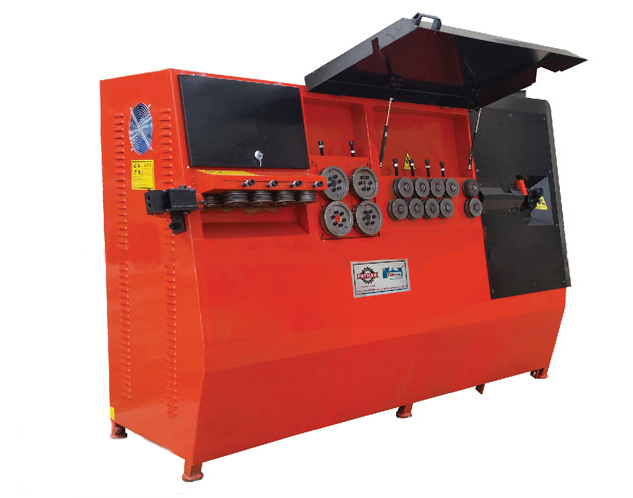

Automatic Stirup Bending Machines
Construction MachinesThis is a completely automated machine that does all the work very smoothly. The best part of this machine is that it controls everything digitally. It only bends the required amount of steel that is indeed required. This machine is one of the most professional machines one can opt for.
From ₹
1,025,000
To
1,288,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| MODEL | ASB2 4-10 CNC | ASB2 4-10 CNC | ASB4 4-12A CNC |
| Single round wire diameter | 4-10mm | 4-13mm | 4-13mm |
| Double round wire diameter | 4-8mm | 4-10mm | 4-10mm |
| Single ribbed wire diameter | 4-8mm | 4-10mm | 4-12mm |
| Double ribbed wire diameter | 4-6mm | 4-8mm | 4-10mm |
| Max bending angle | 180 | 180 | 180 |
| Central mandrel diameter | 20-30mm | 20-30mm | 20-30mm |
| Max pulling speed | 100m/min | 100m/min | 110m/min |
| Max bending speed | 1800pics/h | 1840pics/h | 1840pics/h |
| 2 Servo motor | 11kw+7.5kw | 13kw+7.5kw | 18kw+7.5kw |
| 1 Brake motor | 4kw | 4kw | 4kw |
| 1 Motor for air pump | 4kw | 4kw | 4kw |
| Voltage | 380V/415V | 380V/415V | 380V/415V |
| Average electric power consumption | 5kw/h | 5kw/h | 5kw/h |
| Working environment temperature | -5-40 C | -5-40 C | -5-40 C |
| Overall size | 3500x950x2000mm | 3500x1000x2150mm | 3500x1000x2150mm |
| Gross Weight | 2.35T | 2.5T | 2.55T |
