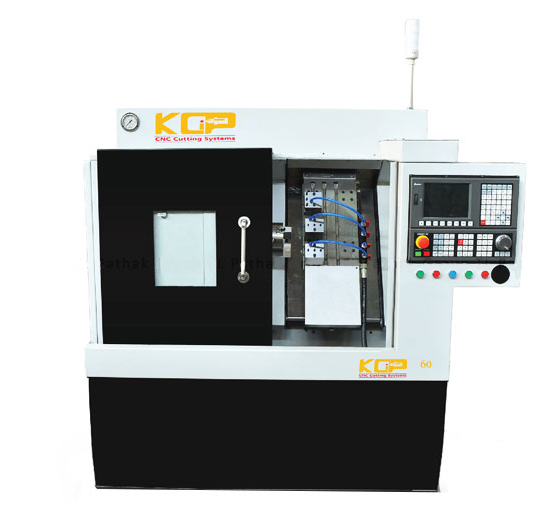

Cnc Lathe Machine KGP 60
CNC MachinesWe are prime and well-known manufacturers and exporters of CNC Lathe Machine KGP 60 in the market which provide a wide range of machines at great quality and affordable price. The machine has a maximum turning left of 180 mm and side turning diameter of 60 mm with a full power speed range of 80 to 3000 rpm which make it best in the category.
From ₹
985,000
To
1,245,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
CAPACITY |
||
| Max.Turning Length | mm | 180** |
| Max.job swing Diameter | mm | 180 |
| std.Turning Diameter | mm | 60 |
SLIDES |
||
| Cross (X-Axis) | mm | 300 |
| Longitudinal (Z-Axis) Travel | mm | 200 |
| Rapid Feed (X & Z Axis) | m/min | 24 |
MAIN SPINDLE |
||
| Spindle Motor Power | cont/30min.rating | 5.5/7 Kw |
| Spindle Bore | mm | 44 |
| Spindle Nose | - | A24 |
| STD.Chuck Dia | mm | 135 |
| Max.Bar capacity | mm | 36 |
| Spindle Speed Range | mm | 100/5000* |
| Full Power Speed Range | rpm | 800-3000 |
TOOLING (GANG STYLE) |
||
| Tool Holder Shank height x width | mm | 20x20 |
| Boring Bar Shank Diameter | mm | 32max |
| ACCURACY (AS PER VDI/DGQ 3341) | ||
| Positioning | mm | 0.015 |
| Repeatability | mm | 0.003 |
MACHINE SIZE |
||
| Machine Size | mm | 1760 |
| Floor Space (Length x Width) | mm | 1540 x 1208 |
| Machine Weight | kgs | 1550 Approx) |
| CNC System | GSK 988T/980 TDC/928 T without servo spindle | - |
