Gantry Type CNC Drilling Machine

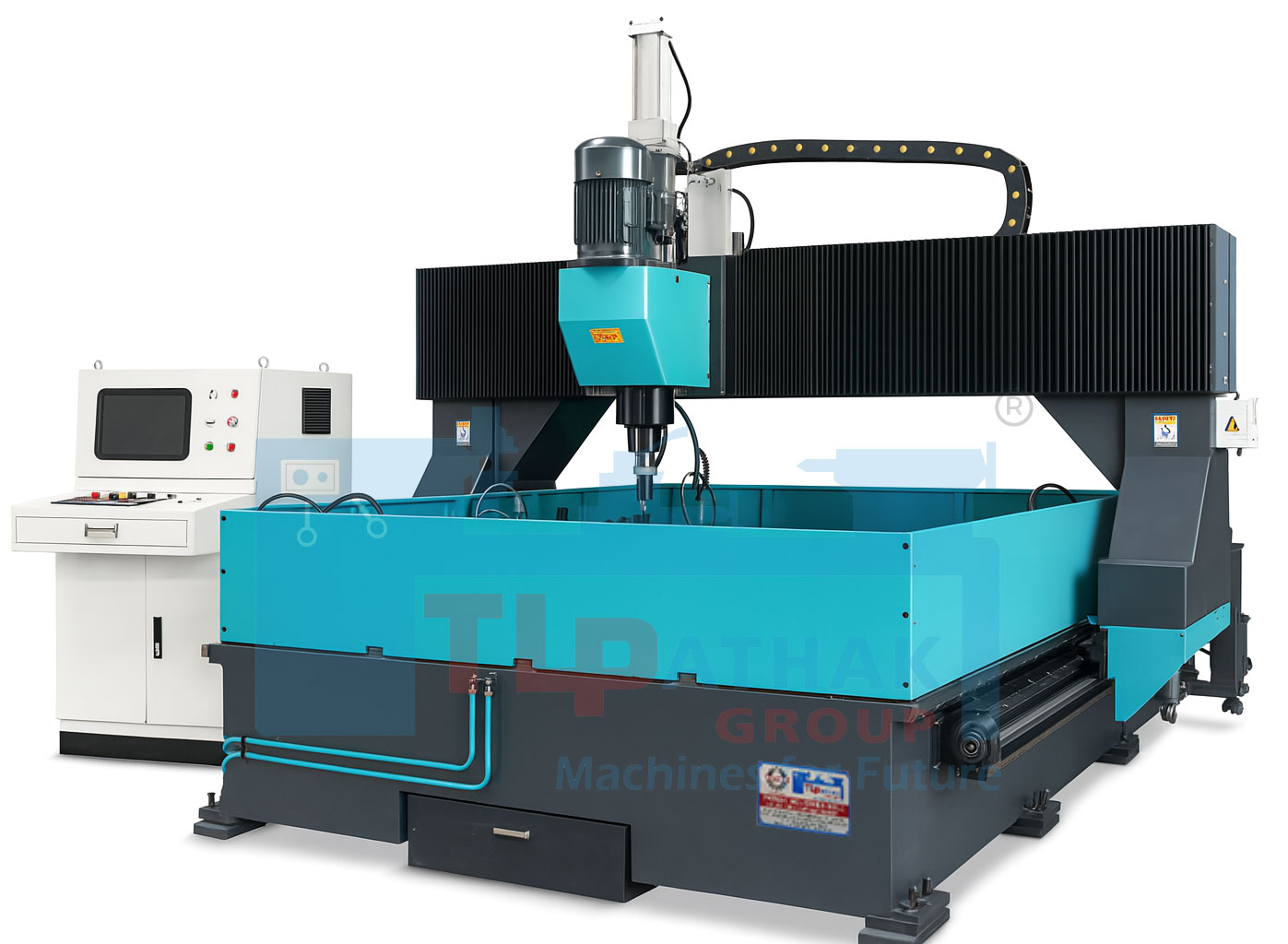

Drill MachinesA Gantry Type CNC Drilling Machine is a high-performance, computer-controlled drilling system designed for processing large plates or workpieces, typically used in industries such as shipbuilding, bridge construction, wind energy, steel fabrication, and heavy engineering.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
| Model | TLP-PD-2016 | TLP-PD-2016/2 | TLP-PD-3016 | TLP-PD-3016/2 |
| Processing Scope | 2000x1600 mm | 2000x1600 mm | 3000x1600 mm | 3000x1600 mm |
| Stack Thickness | 100 mm | |||
| Spindle Number | 1 | 2 | 1 | 2 |
| Spindle Model | Morse 4 # Taper Hole | |||
| Spindle Rotating Speed (r/min) | 120-560 | |||
| Feed Motor | Hydraulic Automatic Stroke Drilling Power Head | |||
| Feed Stock | 180 mm | |||
| Drilling Diameter | 12-5 (12-63 optional) mm | |||
| Main Motor Power (KW) | 5.5/7.5 (optional) | 5.5x2/7.5x2 (optional) | 5.5/7.5 (optional) | 5.5x2/7.5x2 (optional) |
| Drilling Precision | +- 0.5 mm | |||
| Re-Positioning Precision | +- 0.2 mm | |||
| Number of Clamping Cylinders | 12 | |||
| Clamping Force | 7.5 KN | |||
| Clamping System | Double Side Button Control of Gantry | |||
| Hydraulic Pump Pressure | 6 Mpa | |||
| Control System | PLC+IPC | |||
| Size | 3500x2650x2870 mm | |||
The TL Pathak Group presents its Gantry Type CNC Drilling Machine, a cutting-edge solution for precise and efficient drilling operations in various industries. This sophisticated machinery combines advanced CNC technology with robust gantry structure, ensuring exceptional performance and reliability,with a spacious work area and high load-bearing capacity, the Gantry Type CNC Drilling Machine accommodates large workpieces with ease, making it suitable for diverse manufacturing tasks. Its precision drilling capabilities guarantee accuracy and consistency, meeting the stringent requirements of modern production processes,equipped with intuitive CNC controls, operators can effortlessly program complex drilling operations, reducing setup time and enhancing productivity. The machine's rigid gantry design minimizes vibrations, ensuring stable and precise drilling even at high speeds.
Designed for versatility, this CNC drilling machine accommodates a wide range of materials, from metals to composites, enabling flexibility in manufacturing applications. Additionally, advanced safety features prioritize operator well-being while maintaining uninterrupted workflow.
Overall, the TL Pathak Group's Gantry Type CNC Drilling Machine embodies innovation, reliability, and efficiency, empowering businesses to streamline their operations and achieve superior results in the ever-evolving industrial landscape.

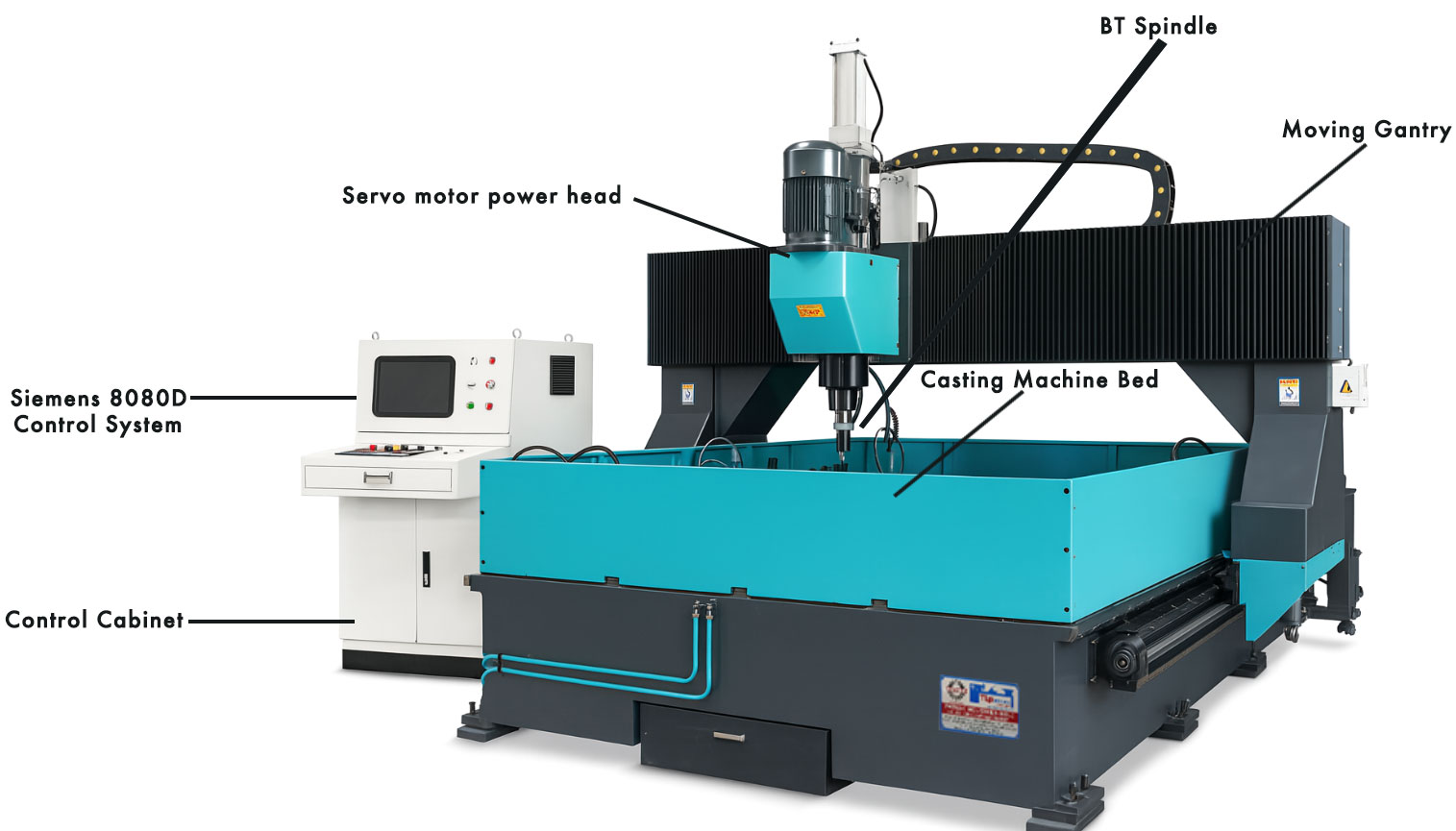

3D angled front view with all parts labeled for Gantry Type CNC Drilling Machine
Key Features
| Gantry Structure: Rigid gantry frame offers stability and precision, allowing the spindle to travel in X, Y, and Z axes over a fixed workpiece. |
| CNC Control System: Advanced CNC controller (e.g., FANUC, Siemens, or GSK) ensures high-speed and precise automated drilling operations. |
| Large Working Area: Suitable for drilling large steel plates, beams, or frames with high repeatability. |
| Multiple Drilling Heads (Optional): Some models offer multiple heads for simultaneous multi-point drilling to boost productivity. |
| Servo Motors & Linear Guideways: Ensures smooth, accurate, and fast positioning of the spindle. |
Application of Gantry Type CNC Drilling Machine
| Wind tower base flange hole drilling |
| Boiler and pressure vessel manufacturing |
| Bridge and highway structure fabrication |
| Marine and shipbuilding industries |
| Aerospace and aircraft component drilling |
| Large mold plate and die plate drilling |
| Transformer tank and radiator plate hole processing |
Uses of Gantry Type CNC Drilling Machine
| Drilling precise holes in large and heavy metal plates |
| Multi-hole drilling with automatic tool changing |
| High-speed, high-volume drilling with CNC control |
| Drilling operations with coolant/lubricant integration |
| Milling and tapping operations (in combination machines) |
| Automatic positioning and hole pattern programming |
| Reducing manual labor for large workpiece machining |
| Improving productivity and accuracy in steel fabrication |
Marine and shipbuilding industries
Bridge and tower construction
Wind turbine components
Boiler and pressure vessel manufacturing
Steel structure fabrication
