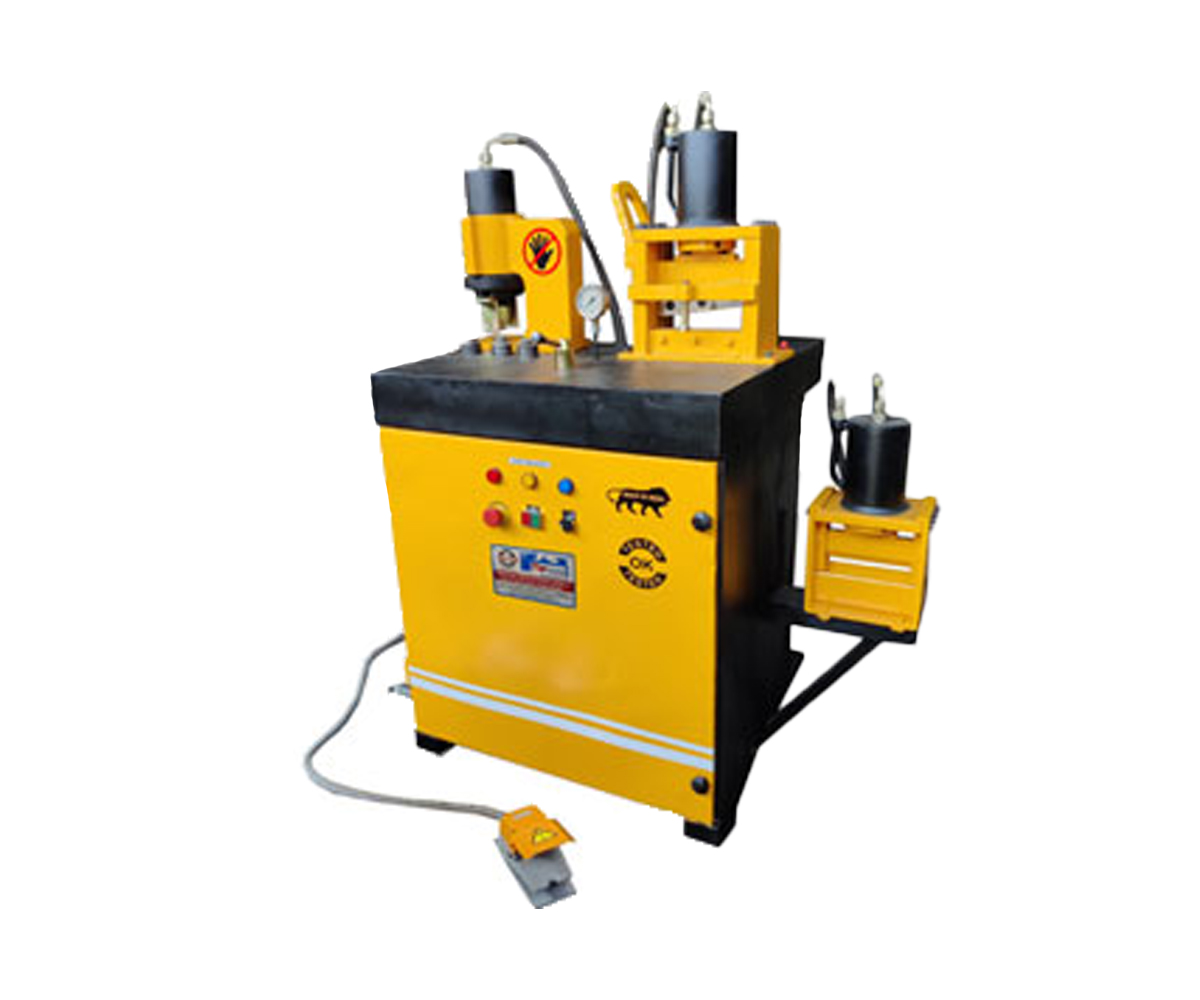

Multifuncation Busbar 3 in 1 Machine
Other MachinesWe manufacture one of the best cutting machines as our machines are made with strong structure and also have a good life span. They have a fast cycle time and high-quality cutting, bending, and punching. We have produced this machine to improve the working efficiency and save the time of our customers as these machines are made with the use of advanced products and techniques.
From ₹
288,000
To
345,000
Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Punching | CH-70 |
| Punching capacity of copper row/aluminum row | |
| 200*12mm (width thickness) punching mold (mm) | 010.5 013.8 017.5 020.5 |
| Punching Force | 35T |
| Cutting | CWC-200 |
| cutting capacity of copper row/aluminum row | |
| 200*12mm(width thickness) Cutting Force | 20T |
| Bending | 200A |
| Bending capacity of copper row/aluminum row | |
| 200*12mm (width thickness) Bending Force | 20T |
| Motor Power | 0.75KW |
| Voltage | 220V 50Hz |
| Table size : (mm) | 700(L)*700(W)*850(H) |
| Oil delivery | low2 5L/min, high 0.9L/min |
| Pressure rating | low 0-20, high 20 700kgf cm |
| Weight | 207kg |
| Packing | wooden box tray packaging |
| Dimension (mm) | 750*960*1220mm |
Busbar Machine Application
