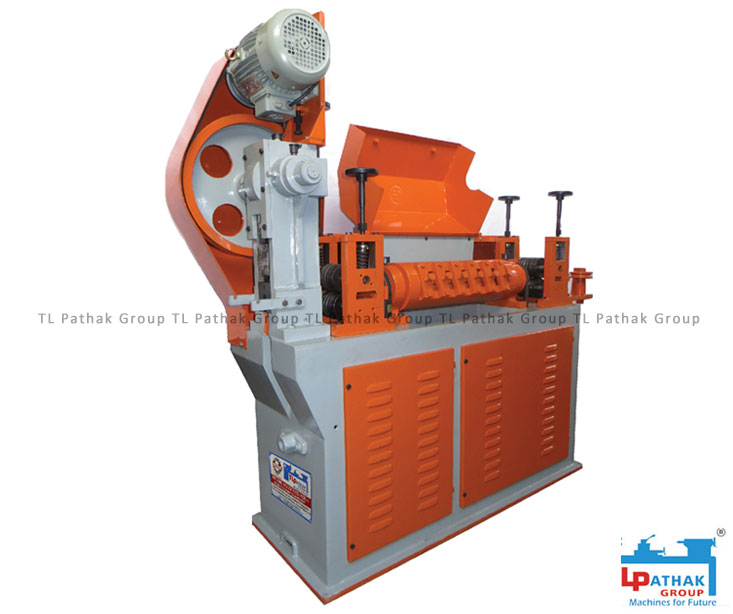

Wire Straightening and Cut off Machine

Wire Industry Machinery

This machine has a maximum feeding capacity of 90 feet per minute. The power of H.P varies from 2 to 25 H.P. It has its required rpm of around 1440 rpm. This machine requires different floor space according to the machine. It automatically cuts the wire according to the length of wire it takes. This also varies from machine to machine.

Send Enquiry

Download Catalog Request Catalog

Order By Phone

Shipping Information Usually dispatched With In business days

+91-9124009247 OR Call Me Back

Specifications

MODEL	PWS -04	PWS - 06	PWS -08	PWS - 10	PWS - 12	PWS -16
In Thickness of Wire mm	1.5 to 4mm	2 to 6mm	2.5 to 8mm	3 to 10mm	4 to 12mm	14 to 20mm
In Length of Wire to be Cut automatically mm	28 to 1000 mm Length can be increased as per requirement.	28 to 1000 mm Length can be increased as per requirement.	40 to 1000 mm Length can be increased as per requirement.	45 to 1000 mm Length can be increased as per requirement.	50 to 1000 mm Length can be increased as per requirement.	100 to 1500 mm Length can be increased as per requirement.
Feeding Capacity Per min.	90' Feet	90' Feet	90' Feet	90' Feet	90' Feet	40' Feet
Power of Motor H.P	2 HP	3 HP	5 HP	5 HP	10 HP	3 + 25 HP
Required R.P.M	1440	1440	1440	1440	1440	1440
Approx Weight in kg . Net/ Cross	300 / 425	380 / 550	480 / 650	550 / 700	600 / 750	2200 /2750
Floor Space required	3' X 8' Feet	3' x 12' Feet	4' x 12' Feet	4' x 12' Feet	5' x 12' Feet	8' X 28' Feet
