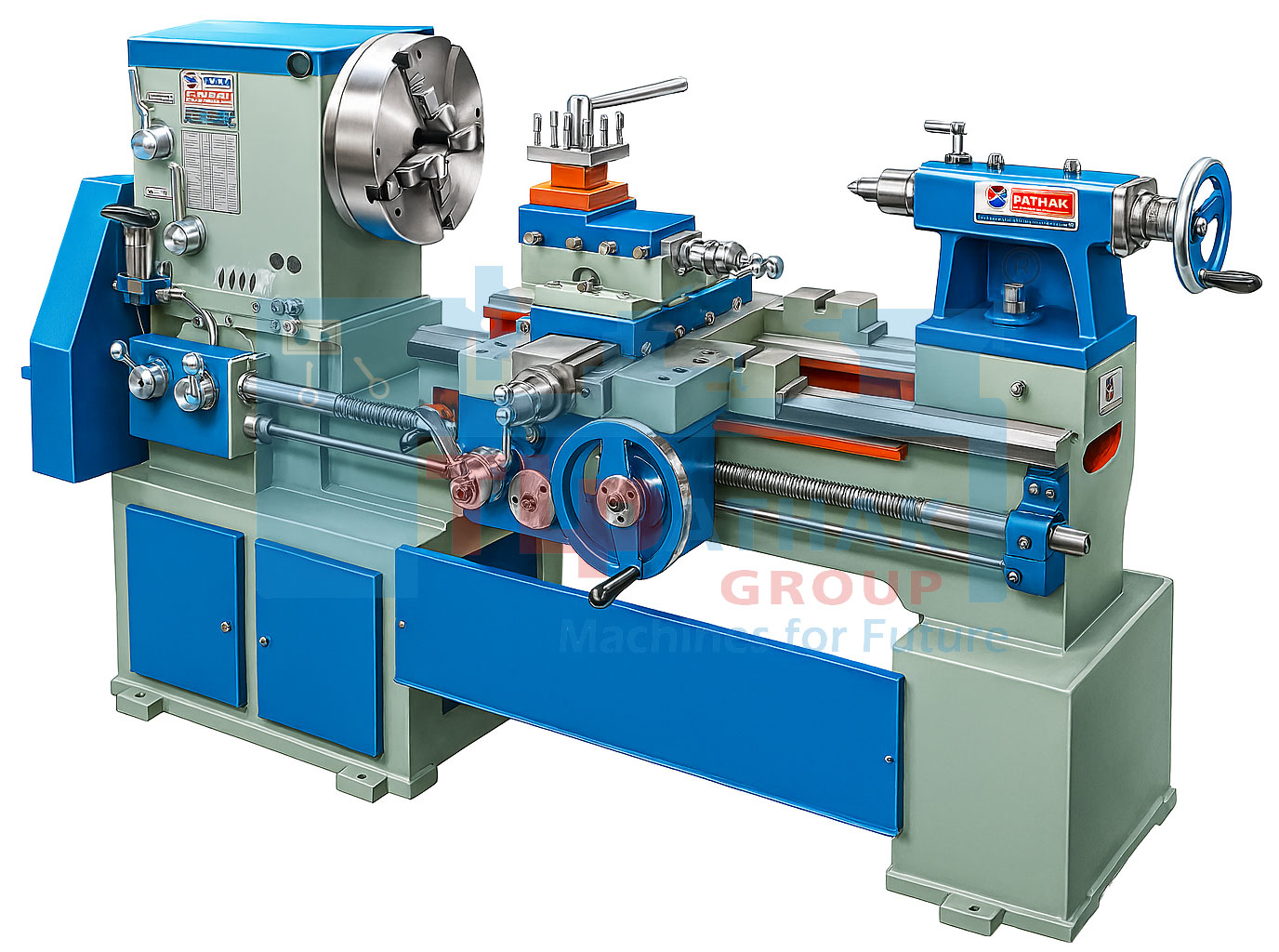

Heavy Duty Cone Pulley Lathe Machine ST-6
Lathe MachinesDownload Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
Face Plate
Chuck Plate
Set Of 22 Change Gears
Stationery Steady
Follow Rest Assembly
Dead Centers
Electric Coolant Pump
Electric Motor & Starter
3jaw self centering chuck
Gears To Cut Metric Threads
Taper Turning Attachment
Tool Post Grinder
4jaw Independent Chuck
Norton Gear Box
Digital Read Out
Revolving Center
Keyway Cutting Attachment
| Model | ST-4 | ST-6 | SMT-8 | DK-10 |
| Length of Bed (With Head Stock) | 4'-6" | 6'-0" | 8'-0" | 10'-10" |
| Width of Bed | 12" | 14" | 16" | 18" |
| Centre of BED | 10" | 12" | 14" | 16" |
| Width of gap | 5" | 9" | 12" | 14" |
| Swing over saddle (dia) | 10" | 12" | 14" | 16" |
| Swing in gap (dia) | 28" | 38" | 41" | 47" |
| Admit between centers | 2'-3" | 3'-0" | 4'-6" | 5'-8" |
| Hollow Spindle | 1.3/4" | 2.1/8" | 3.1/8" | 3.5/8" |
| No. Of Spindle Speeds | 6 | 6 | 6 | 6 |
| Dia. Of Leedscrew | 1.3/8" | 1.5/8" | 1.5/8" | 1.5/5" |
| Dia. Of Feedshaft | 1" | 1.1/8" | 1.1/8" | 1.3/8" |
| Power Require | 1 H.P | 2 H.P | 3H.P | 3 H.P |
| R.P.M of Motor (Aprox.) | 1440 | 1440 | 960 | 960 |
| NETT Weight (Aprox.) | 800 KGS | 1200 KGS | 1800 KGS | 2300 KGS |
We are considered one of the most famous manufacturers of heavy-duty cone pulley lathe machine ST-6 because our machine is of precise quality that is fitted with a 3-speeds semi Norton gearbox. This machine is very much affordable. Our machines are very easy to operate and also it requires very low cost for maintenance.
Key Features
| Cone Pulley Drive System: Enables manual speed variation using stepped pulleys. |
| Sturdy Bed & Headstock: Designed to absorb vibrations and provide long operational life. |
| Wide Range of Operations: Turning, facing, taper cutting, threading, and more. |
| Tailstock Support: Enhances precision while machining long components. |
| Gearbox or Manual Feed: Depending on model, allows threading and auto-feed. |

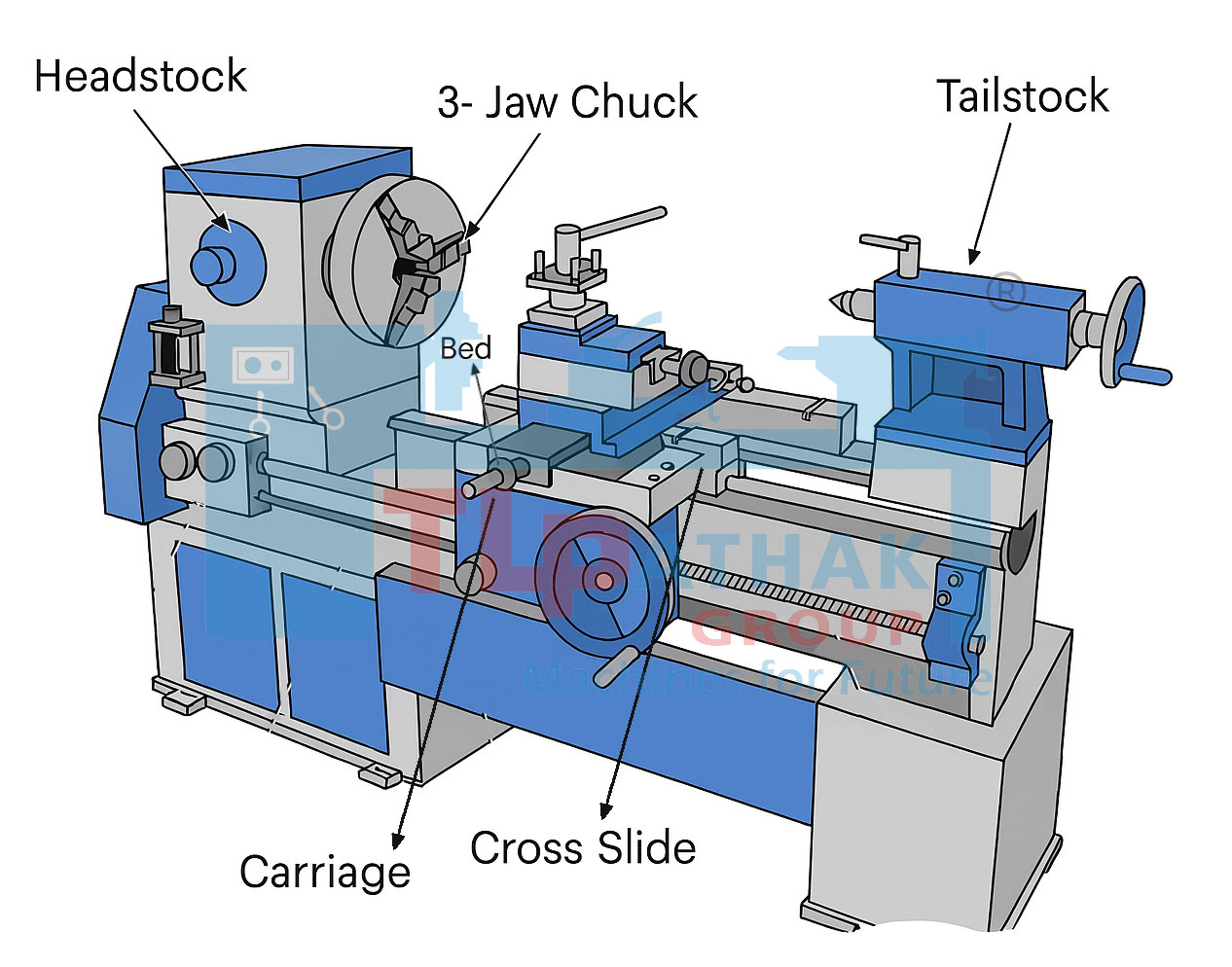

3D angled front view with all parts labeled for Heavy Duty Cone Pulley Lathe Machine ST-6
Applications For Heavy Duty Cone Pulley Lathe Machine
| Used for heavy and long workpieces in large-scale industries |
| Turning, facing, and taper turning of large diameter shafts |
| Ideal for rough machining operations on cast iron, steel, and other hard materials |
| Drilling, boring, and internal threading of heavy components |
| Manufacturing of large rollers, cylinders, and industrial shafts |
| Used in railway workshops for repairing wheel axles |
| Employed in shipbuilding industries for machining marine parts |
| Maintenance and repair work in heavy engineering industries |
| Suitable for high torque and slow-speed operations |
| Used for reconditioning worn-out machine parts |
Ship Building
Power Plants
Steel & Paper Mills
Mining Industries
Textile Industries
Tool Rooms
Educational Institutes
Small & Medium Scale Industries
Fabrication Workshops
Sugar Mills
Metal Fabrication Shops
Automotive Industry
Aerospace Industry
General Sheet Metal Cutting
Appliance Manufacturing
Shaft turning and thread cutting
Heavy Engineering
Precision turning of small parts
DIY metalworking and model engineering
Used for heavy and long workpieces in large scale industries
Turning, facing and taper turning of large diameter shafts
