All Geared Radial Drill Machine With Auto Feed
Drill MachinesThe All Geared Radial Drill Machine with Auto Feed is a heavy-duty industrial drilling machine engineered for precise and efficient drilling operations on large and heavy workpieces. It combines the strength of geared transmission with the convenience of automatic feed, making it ideal for high production environments.
From ₹
250,000
Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
| MODEL NO. | PRD40GA |
| Drilling capacity in mild steel | 40 |
| No. of spindle speed 9 | 80 to 1500 |
| working area of base | 870 * 760 |
| Dia of RAM | 78 |
| Spindle travel | 260 |
| Spindle nose | M.T.4 |
| Max. Min. Distance spindle nose to nose | 925 to 230 |
| Max.Distance spindle nose to nose | 620 |
| Max.Min.Distance spindle nose to column | 875 * 360 |
| Size of Box Table | 305 *305 *380 |
| Size of base (L*W*H) | 760 *1290*190 |
| Overall height of machine | 2000 |
| Spindle feed by | hand.&Auto feed |
| Drill Head motor | 2HP,RPM 1440 |
| Elevating motor | 0.5 HP, 1440 RPM |
| Net weight | 900 kgs. |
| Lifting Vee Belt | A 23 |
| Number of Autofeed | 0.05 |
Our team makes this machine by using a high-quality material so as to ensure easy operation, low maintenance, and peak performance. This geared radial drill machine with auto feed has a feature that it will make no noise and vibration while working. We provide our equipment as per the specifications of our customers. Many industries are providing boring devices but our machines are well-maintained and provide convenience to our customers.

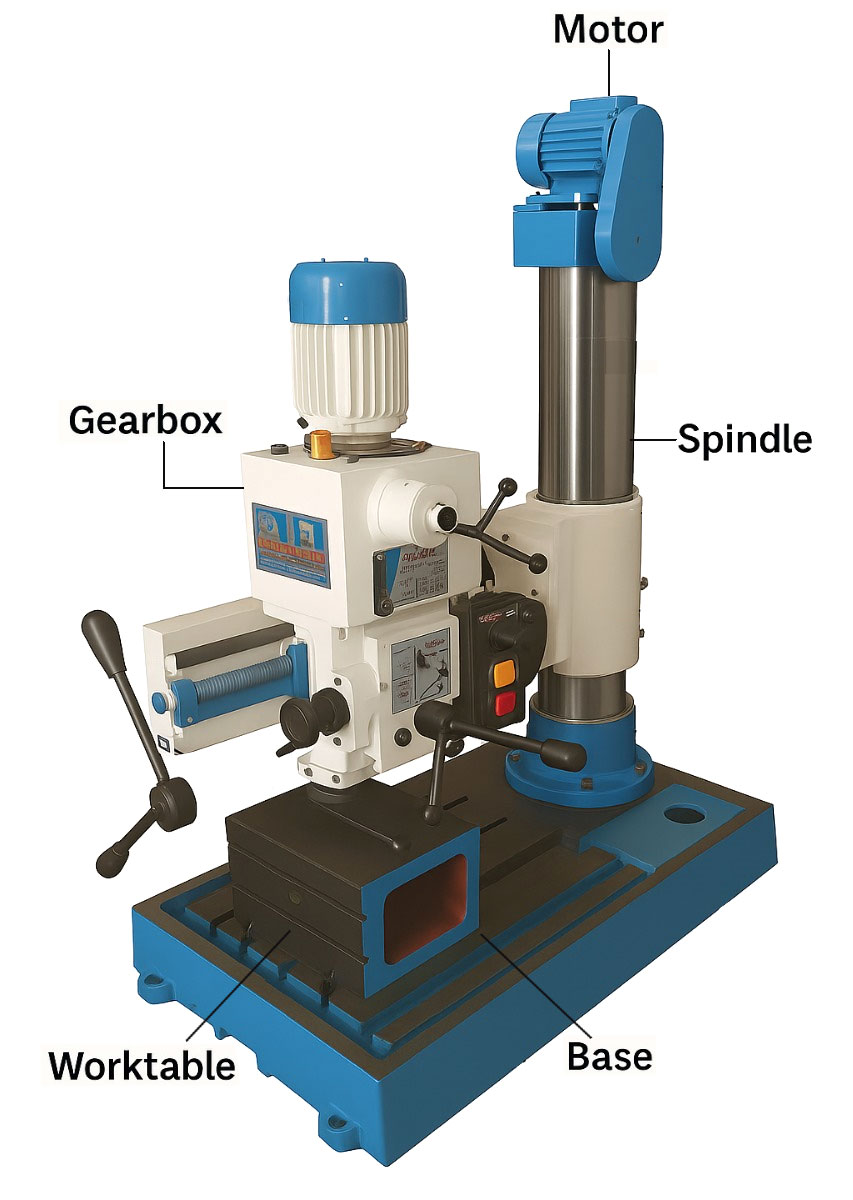

3D angled front view with all parts labeled for All Geared Radial Drill Machine With Auto Feed
Key Features:
| All Geared Head: Ensures consistent torque at various spindle speeds for effective drilling on a wide range of materials. |
| Radial Arm Movement: Allows the drill head to move radially, vertically, and swing around the column ideal for handling large workpieces. |
| Auto Feed Mechanism: Enables automatic feeding of the spindle for uniform and fatigue-free deep hole drilling. |
| Rigid Structure: Constructed with graded cast iron or steel for enhanced rigidity, vibration resistance, and durability. |
| Precision Gears: High-quality hardened and ground gears ensure smooth operation and extended service life. |
Ship Building
Power Plants
Mining Industries
Tool Rooms
Workshops
Railway Workshops
