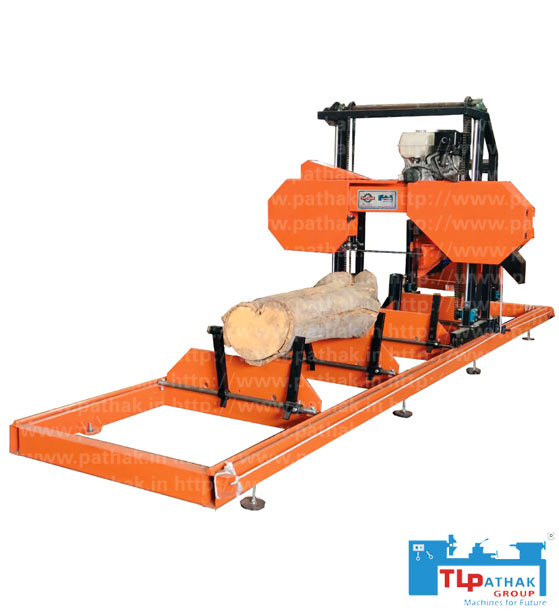

Portable Saw Mill Trolley Type Bandsaw
Wood Working MachinesPathak manufacturers best quality portable sawmill trolley type bandsaw mainly used for wood cutting like Wooden Logs and Cutting Wooden Blocks for Making different types of Furniture. The machine is made with premium quality raw material ensures durability and efficiency of work. Also, it's straightforward to use this machine which helps in the smooth functioning of any task done by the customer.
From ₹
450,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Wheel (Diameter x Width) | Casting 18"x1.5" |
| Blade (Length x Width) | 13"x1.5" |
| Power Option | Petrol 10HP-3600 rpm (Honda GX390, Manual Start) 10HP 3 Phase Electric Motor |
| Bed Size | 5m x 1m (Custom Bed Length Available) |
| Max. Log Diameter Cutting Capacity | 24" |
| Max. Length of Cut | 14' (can be extended with bed extension) |
| Max. Width of Cut | 24" |
| Max. Depth of Cut | 10" |
| Band Saw Head Reverse Forward Up-Down | Manual Hand Crank |
| Blade Height Indication | Red pointer on a scale |
| Number of Side Supports for Log | 3 Nos |
| Number of Log Clamps | 3 Nos |
| Number of Bed Leveling Feet | 8 Nos |
| Blade Guide Arm | Fixed |
