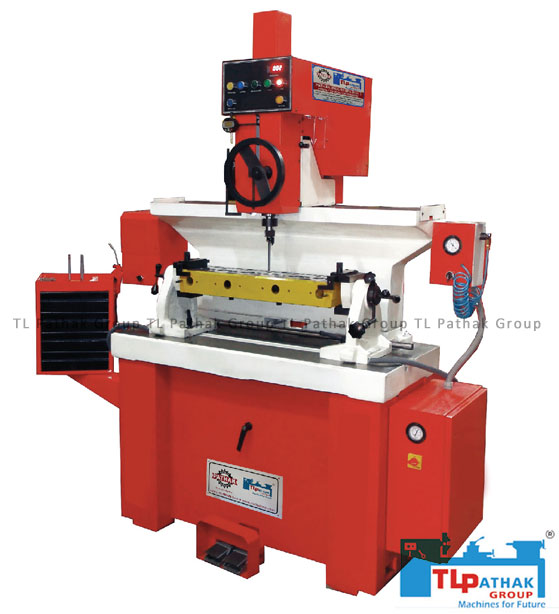

Vertical Seat Cutting Machine
Garage MachinesPathak manufactures the best quality Vertical seat cutting machines with high-speed reliability and is easy to use for customers and its vibration-free experience. Its Vacuum tester helps check valve seats before eliminating the cylinder head drawers rapidly. Its top trays worked as a practical storage capacity tool, and the machine is made of high-quality material that provides durability to customers.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| MODEL | PVSCM - 1000 |
| Spindle | 90mm |
| Spindle Motor | 0.75 kw / 1Hp |
| Maximum Spindle Travel | 150mm |
| Maximum Spindle Tilt (Either Side of Zero) | 200 |
| Seat Angel | 450 , 300 |
| Spindle Speed (Variable) | 40 to 300 rpm |
| Clamping Table Size | 1300mm x 550mm |
| Set Dia (Minimum To Maximum STD) | 28 to 45 (opt - 18 to 60) |
| Spindle Head Travels (Front & Back) | 40mm |
| Spindle Head Travels (Left & Right) | 1200mm |
| Electrical Requirements | 3 Phase 15 Amp 1 Hp |
| Air Requirements | 100 Psi 8 bar |
| Distance From Table To Spindle | 400mm |
| Floor Space Requirements | 1600mm x 900mm x 2200mm |
| Machine Weight (Approx) | 950kg |
| Machine Gross Weight | 1200kg |
| Clamping Block Travels (Front & Back) | 130mm |
