Manual Hydraulic Pipe Bender

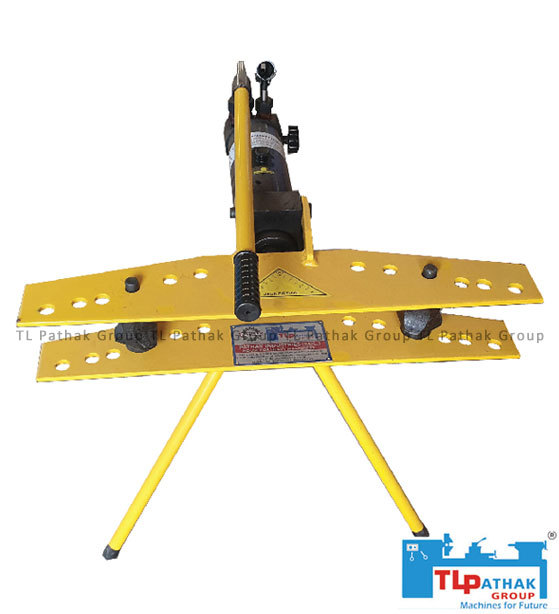

Section Bending MachineThis hydraulic pipe Bender provides easier and more accurate bending. The best part is it can bend a few specific pipes at just one go. It is more convenient to use and works faster. It’s inside environment is quite friendly and one can usually get acquainted to it. The design is quite portable for all the construction works and it can be bent into the range of 4 degree.
From ₹
28,000
To
78,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Model | Max Pressure | Max Stroke | Bending dies | Pipe wall thickness | G.W | Volume | Packing way |
| HHW-1A | 6T | 150mm | 3/8'',1/2'',3/4'',1'' | 1.5-3.5mm | 17kg | 43x38x13 cm | Metal case |
| HHW-2 | 13T | 250mm | 1/2'',3/4'',1'',11/4'',11/2'',2'' | 2.75-4.5mm | 49kg | 73x32x20 cm | Plywood |
| HHW-3 | 20T | 290mm | 1/2'',3/4'',1'',11/4'',11/2'',2'',21/2'',3'' | 2.75-5mm | 98kg | 93x40x21 cm | Plywood |
| HHW-4 | 23T | 370mm | 1/2'',3/4'',1'',11/4'',11/2'',2'',21/2'',3'',4'' | 2.75-6mm | 118x46x23 cm | Plywood |
