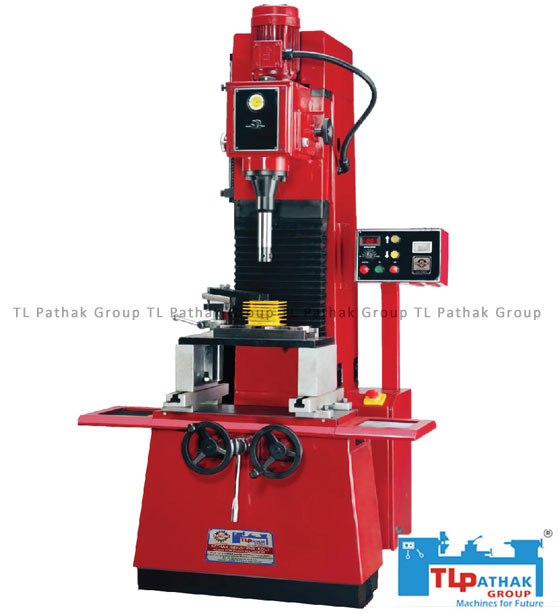

Two Wheeler Single Cylinder Boring Machine
Garage MachinesAvailable Best quality Two Wheeler Single Cylinder Boring Machine manufactured by our skilful engineer's team mainly used to two-wheeler cylinder block boring and performing accurate boring and quick toolset clamping of the cylinder block. We made this machine with the latest technology to provide smooth and efficient working functions to our customers.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| MODEL | PVCB 700 | PVCB 600 |
| Boring Capcity | 48 - 110 MM (1.9'' - 3'') | 38 - 78 MM (1.5'' - 3'') |
| Max.Boring Head Travels | 300 MM (11.9'') | 300 MM (11.9'') |
| Spindle Speed (Infinitely Variable) | 50 - 550 RPM | 50 - 550 RPM |
| Spindle Feed | 0.05 MM / Revolution | 0.05 MM/ Revolution |
| Max distance from spindle center to column | 250 MM (9.9'') | 250 MM (9.9'') |
| Working table size (L x W) | 700 x 300 MM (27.55'' X 11.9'') | 600 x 300 MM (23.6'' X 11.9'') |
| Table Traverse - Longitudinal | 350 MM (17.7'') | 250 MM (9.9'') |
| Table Traverse - Cross wise | 30 MM(1,2'') | 30 MM (1.2'') |
| Motors Spindle Speed | 0.75 WW/1 HP | 0.75 KW / 1 HP |
| Motor Rapid Speed | 0.19 KW / 0.25 HP | 0.19 KW / 0.25 HP |
| Length of Machine | 1300 MM (51'') | 1150 MM (45'') |
| Width of Machine | 1000 MM (40'') | 1000 MM (40'') |
| Height of Machine | 1905 MM (75'') | 1750 MM (68'') |
| Packing Case Outer Size (LxWxH) | 1450 X 1200 X 2155 MM (57'' X 47.3'' X 85'') | 1350 X 1200 X 2000 MM (45.3''X 39.4'' X 69'') |
| Cross Weight (Approx) | 1400 KGS | 1000 KGS |
| Net Weight (Approx) | 1000 KGS | 750 KGS |
| Shipping Volume | 4 M 3 | 3M 3 |
