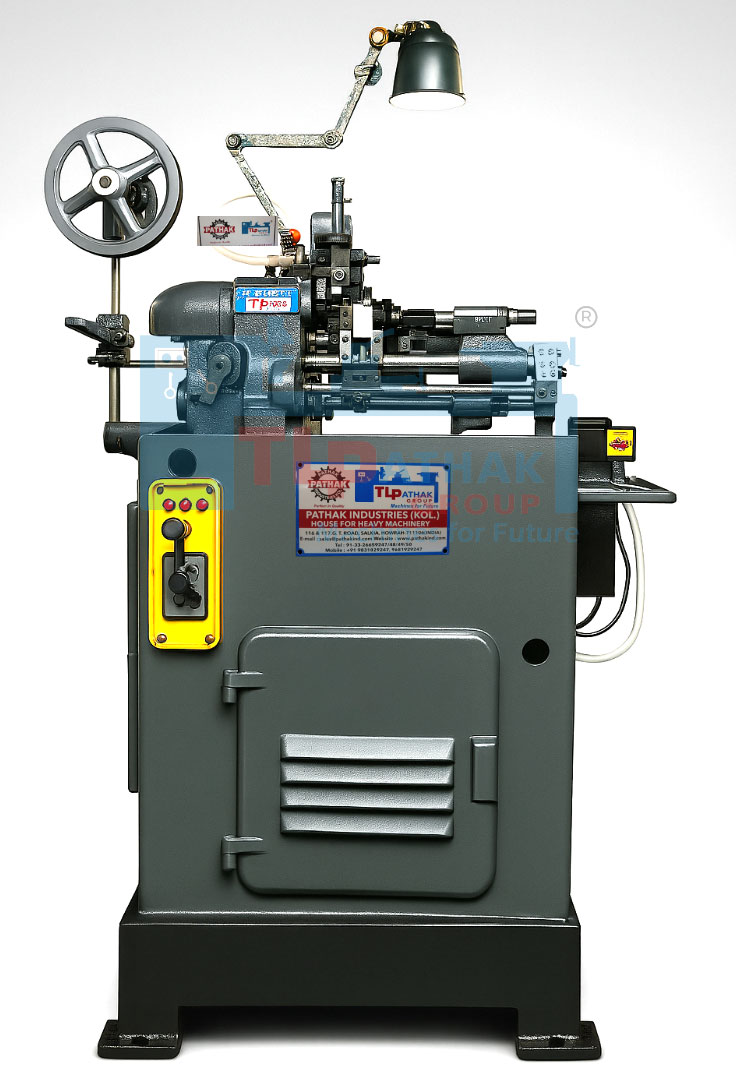

Single Spindle Automatic Lathe
Lathe MachinesDownload Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
Front & Rear Main Slides
Bar Stopper
One Set of Cam
One Silent Gravity Bar Feed Chest
Single Vertical Slide
Two Piece Parting Attachment
Four Piece parting Attachment
AC Drive
Additional Tool
Holder and Chemfering Attachment
| Model | Pal-25 MM | Pal-32 MM | Pal - 40 MM | Pal-50 MM | Pal-60 MM | Pal-70 MM |
| Max Capacity Round Bar | 22 mm | 30 mm | 37 mm | 47 mm | 56 mm | 65 mm |
| Hexagonal | 22 mm | 25 mm | 32 mm | 47 mm | 56 mm | 65 mm |
| Square | 18 mm | 24 mm | 27 mm | 36 mm | 42 mm | 45 mm |
| Maximum Turning Lenght | 40 mm | 45 mm | 50 mm | 60 mm | 70 mm | 76 mm |
| Maximum Drill | 40 mm | 50 mm | 55 nm | 60 mm | 65 mm | 70 mm |
| Electric Drive Motor | 2 HP | 3 HP | 3 HP | 5 HP | 5 HP | 7 HP |
| 1440 Rpm | 1440 RPM | 1440 RPM | 960 RPM | 960 RPM | 960 RPM |
We are a leading manufacturer that provides high precision, robust, and cost-effective machines to its customers. Our single-spindle automatic lathe machines are suitable for the mass production of precision parts as they are extremely versatile machines that provide a big return on small investment jobs. These machines are included in automobile, electronics, bicycles, diesel engines, radios, and textile & general engineering industries.
Key Features
| Single main spindle for handling one workpiece at a time |
| Automatic bar feeding system for continuous production |
| Cam-operated or CNC-controlled tool slides |
| High-speed operations suitable for mass production |
| Ideal for small to medium-sized precision parts |
3D angled front view with all parts labeled for Single Spindle Automatic Lathe
Application of Single Spindle Automatic Lathe
| Single Spindle Automatic Lathe Machine |
| Mass production of turned components |
| Manufacturing of precision parts for automotive, aerospace, and electronics industries |
| Production of small to medium-sized cylindrical parts |
| High-speed machining of simple to moderately complex parts |
| Machining of components like screws, bolts, nuts, pins, and shafts |
| Used in the production of watch parts, medical devices, and connectors |
| Turning, facing, and threading operations |
| Drilling, reaming, and boring |
| Grooving and knurling |
| Chamfering and parting-off |
| Automated machining with minimal manual intervention |
| Reducing cycle time and improving production efficiency in batch jobs |
Ship Building
Power Plants
Steel & Paper Mills
Mining Industries
Educational Institutes
Aerospace
Automotive Industry
