MAB 1300 Most Powerful Magnetic Drilling Tapping Machine
Drill MachinesA Magnetic Drilling Cum Tapping Machine (130 mm Core Drilling & M42 Tapping) is a heavy-duty portable machine designed for precision drilling and tapping operations on ferrous materials. Equipped with a powerful electromagnet base, it securely attaches to metal surfaces, ensuring stability and accuracy even in vertical or overhead positions.
This machine is capable of core drilling up to 130 mm diameter and tapping threads up to M42, making it highly suitable for large-scale industrial applications. It integrates both drilling and tapping functions in a single unit, eliminating the need for separate machines and improving productivity.
This machine is capable of core drilling up to 130 mm diameter and tapping threads up to M42, making it highly suitable for large-scale industrial applications. It integrates both drilling and tapping functions in a single unit, eliminating the need for separate machines and improving productivity.
From ₹
335,500
To
345,500
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
| EAN | TPL-1300 |
|---|---|
| Core Drilling | 130 mm |
| Twist Drilling | 45 mm |
| Tapping | M42 |
| Countersink | 80 mm |
| Reaming | 50 mm |
| Motor Output | 2300 Watts |
| Stroke | 310 mm / 85 mm |
| Magnet Size | 120 x 360 x 65 mm |
| Magnet Power | 29250 N |
| Weight | 51 Kg. |
| Morse Taper | MT4 |
| Speed Gears | 4 |
| Speed 1 | 30 – 80 min-1 |
| Speed 2 | 50 – 120 min-1 |
| Speed 3 | 130 – 350 min-1 |
| Speed 4 | 210 – 550 min-1 |
| Advantages | Carbon brush indicator, KEYLESS drill chuck, Magnet indicator, Oil bath gearbox, Power assist servo feed, Reversible motor, Steady watt control, Variable speed & torque |
| Includes | 1 Attached cooling tank, 1 Carry case on wheels, 1 drill drift & 1 taper drift, 1 offset screwdriver, 1 Operating manual, 4 ejector pins |
We are one of the most reputed manufacturers of drilling machines that provides superior performance with exceptional power delivery. Our machines are equipped with the most powerful speed that delivers a capacity of up to 133 mm. It can also do tapping or thread cutting up to M42 size in one shot. The price of this machine are affordable.

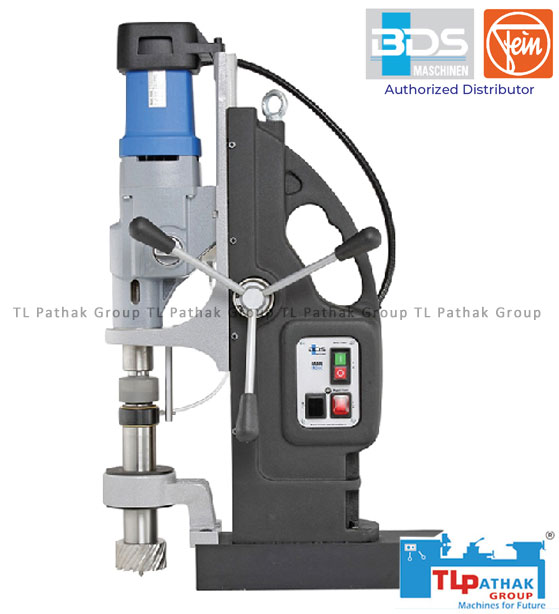

3D angled front view with all parts labeled for Magnetic Drilling Cum Tapping Machine
Key Features| Core Drilling Capacity Up to 130 mm diameter |
| Tapping Capacity Up to M42 threads |
| Magnetic Base Strong holding force for safety and precision |
| Dual Functionality Combines drilling and tapping in one compact unit |
| Versatility Suitable for vertical, horizontal, and overhead operations |
| High Torque Motor Ensures smooth operation for heavy-duty applications |
| Portable Design Easy to move and position for on-site work |
Steel fabrication and erection
Shipbuilding and offshore industries
Heavy machinery maintenance
Bridge construction
Railway track construction
Boiler manufacturing
Pipeline manufacturing
Tank manufacturing
