Vertical Turning Lathe Machine

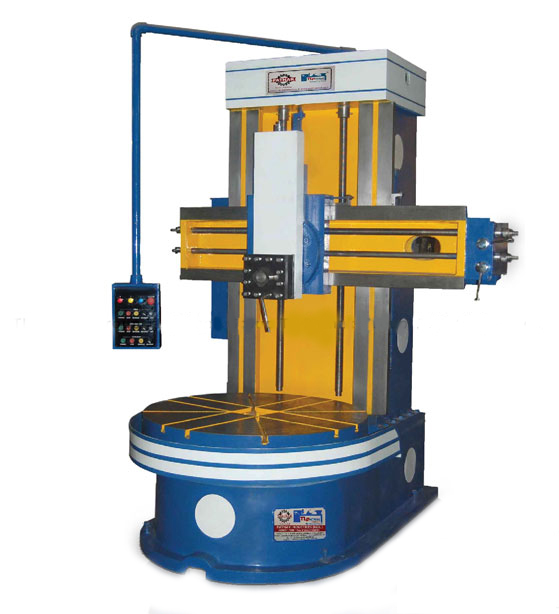

Workshop EquipmentsThe Vertical Turning Lathe Machine by TL Pathak Group in India is a powerful and efficient tool used for machining large and heavy workpieces. This machine is specifically designed for vertical turning operations, allowing for easy handling and precise machining. It features a robust and rigid structure, ensuring stability and vibration-free performance. Equipped with a high-performance motor and spindle, the Vertical Turning Lathe Machine delivers exceptional cutting power and accuracy. It offers a wide range of spindle speeds and feeds for versatile machining applications. With its advanced features and reliable construction, this machine is an essential asset for industries such as aerospace, automotive, and heavy machinery manufacturing.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Model | PVTL-600 | PVTL-1000 | PVTL-1500 | PVTL-2000 | PVTL-2500 | PVTL-3000 | PVTL-4000 |
| Size of Machine | 600 mm | 1000mm | 1500mm | 2000 mm | 2500 mm | 3000 | 4000 mm |
| Diameter of job table | 500 | 900 | 1300 | 1800 | 2300 | 2800 | 3800 |
| 3Max. Diameter Admit | 800 | 1050 | 1600 | 2200 | 2750 | 3250 | 4250 |
| Max. Height under Cross Rail | 400 | 600 | 1200 | 1500 | 1700 | 1800 | 2000 |
| 900 (Optional) | |||||||
| Verticial travel of turret | 300 | 400 | 500 | 700 | 750 | 750 | 1000 |
| Table speeds (Nine) low range | 32-60-120 | 3 To 120 RPM | 3 To 120 RPM | 0.75 To 30 RPM |
1.5 TO 100 RPM |
1.5 TO 100 RPM | 1.5 TO 100 RPM |
| High Range | 65-133-240 | - | - | - | - |
- |
- |
| Main Drive Motor | 2.2 kw 2 speed | 3.7 kw | 5.5 kw | 11 kw | 12 kw | 15 kw | 17.5 kw |
| 700/1444 RPM | 1440 RPM | 1440 RPM | 1440 RPM | 1440 RPM | 1440 RPM | 1440 RPM | |
| Rapid Drive Motor | 1.1 kw 1440 RPM | 1.5 KW 1400 RPM | 1.5 KW 1400 RPM | 3.7 KW 1400 RPM | 5 KW 1400 RPM | 7.5 KW 1400 RPM | 10 KW 1400 RPM |
| Cross Slide elevating motor | 1.5 kw 1440 RPM | 1.1 kw 1440 RPM | 2.2 KW 0.005 RPM | - |
- | - | - |
| Three feed rate are avaliable | 0.102 Per/min | 0.00.5/01/.015 | 0.025 to 1MM | To 40 Thou | |||
| for each table speed | 0.227 Per / min | - | - | - | - | - | - |
| 0.425 Per/min | - | - | - | - | - | - | |
