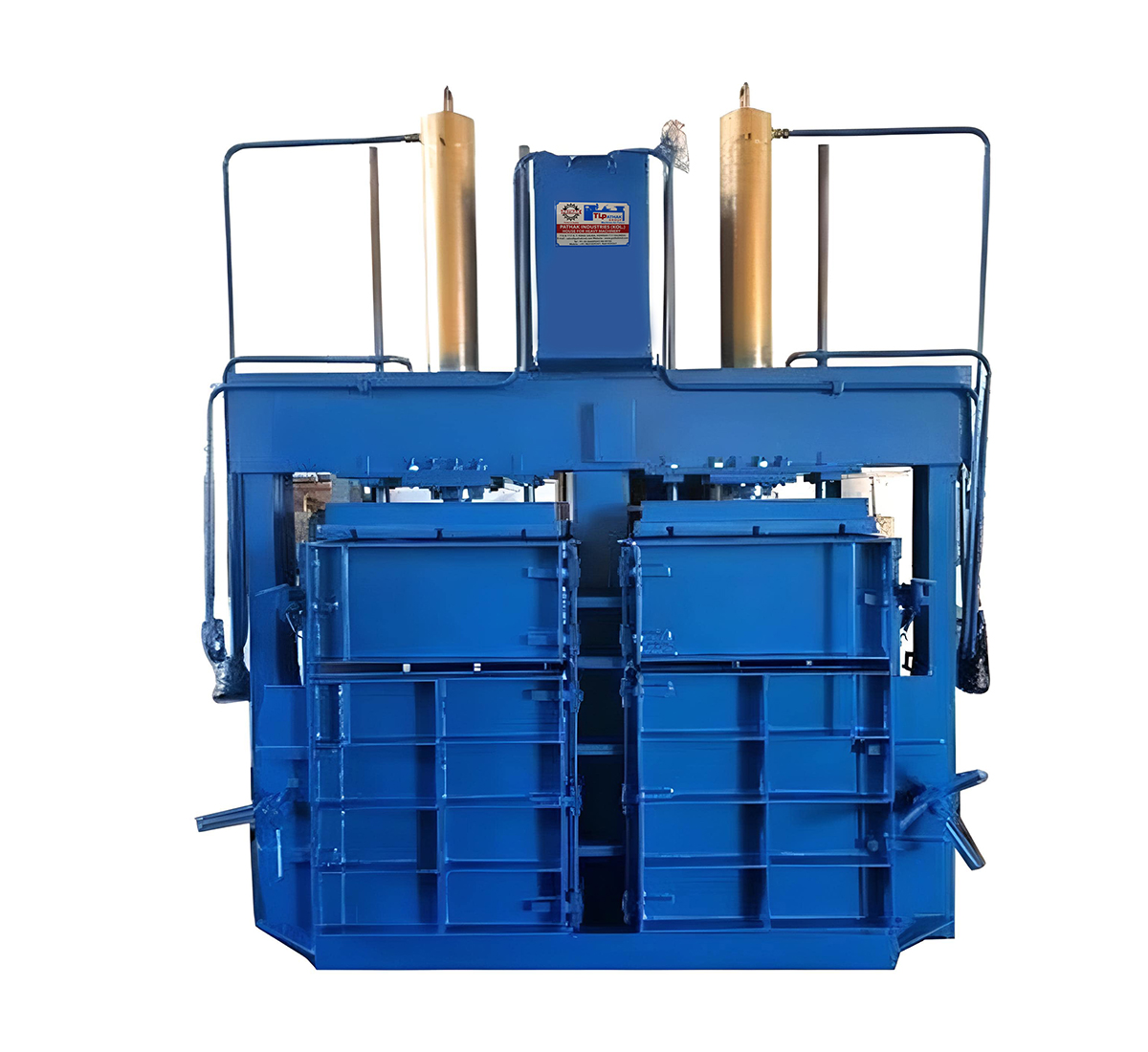

Double Chamber Double Cylinder Vertical Baler
Scrap Baling Machines
The Double Chamber Double Cylinder Vertical Baler by TL Pathak Group is an advanced waste compaction system designed for high efficiency. Featuring two chambers, each equipped with its hydraulic cylinder, this baler enables simultaneous loading in one chamber while the other compresses materials, ensuring continuous operation. The dual-cylinder design enhances processing speed, making it suitable for high-volume waste management needs. With user-friendly controls, safety interlocks, and automatic bale ejection, the baler ensures ease of operation and operator safety. The vertical orientation saves valuable floor space, making it ideal for facilities with limited areas. Versatile in handling materials like cardboard, paper, plastics, and textiles, it offers diverse waste management solutions. The TL Pathak Group's Double Chamber Double Cylinder Vertical Baler is a robust and reliable choice for businesses seeking efficient and simultaneous waste compaction for various recyclable materials.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Capacity | 50 Ton Pressure Double Chamber Single Cylinder Baler Machine |
| Bale Size | 36(L)x26(W) in inch |
| Bale Weight | Pet Bottle 120 to 150 kg/Cartoon 150 to 200 kg |
| Chamber Size | 34(L)x26(W)x50(H) in inch |
| No. of Cylinder | 2 nos. |
| No. of Tie | 3 nos. |
| No. of Door | 4 nos. |
| Cylinder Size | Pet Bottle 120 to 150 kg/Cartoon 150 to 200 kg |
| Bale Eject | Swing Plate |
| Oil Tank Capacity | 150 lit. |
| Production Rates | 10 to 15 minutes |
| Hydraulic System | Vane Pump System |
| Day Light Gap | 56 inch |
| Operation | Hand levers operate systems |
| Electric Motor | 10 H.P. Motor,3 Phase,1440 RPM,50 Hz |
| Overall Dimension | 120(L)x36(W)x130(H) in inch |
| Body Plate | 8 mm,10 mm,30 mm |
