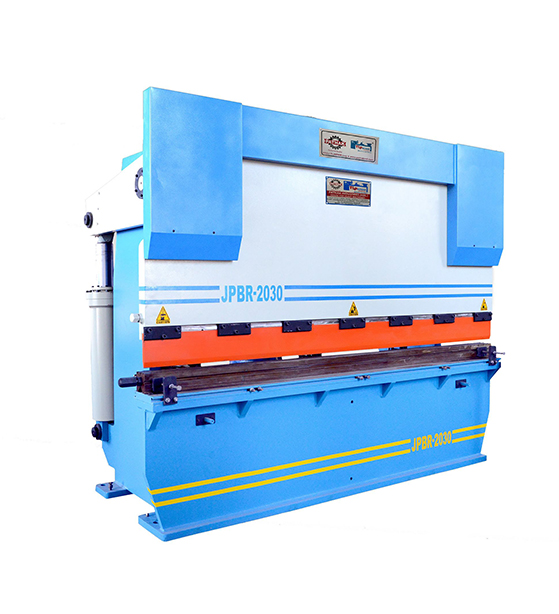

Hydraulic Press Brake Machine
Sheet Metal MachinesA Hydraulic Press Brake Machine is a high-precision industrial tool used for bending and shaping sheet metal and plate materials into desired angles and forms. It operates using hydraulic power, which provides consistent force, smooth operation, and high accuracy compared to traditional mechanical press brakes.
Advantages:
- High Accuracy & Repeatability – Ensures uniform bending angles.
- Energy Efficient – Consumes power only during operation.
- Versatile Applications – Suitable for a wide range of metals including steel, stainless steel, aluminum, and copper.
- Ease of Operation – Hydraulic controls reduce operator effort.
- Durability – Long service life with minimal maintenance.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
| Model | Tonage | Bending (Vap. M.M.(M.S) | Table Width | Clear Distance | Ram Stoke | Open Height | Depth | Power H.P | Speed App. Pre Ret. | Packing Dimension M.M. (LXWXH) |
| PHPB-212 | 20 | 1270x2 | 125 | 900 | 100 | 250 | 200 | 3 | 35-9-60 | 1400x1050x1900 |
| PHPB-320 | 30 | 2030x2 | 125 | l500 | 100 | 250 | 3 | 30-9-53 | 2200x1050x1900 | |
| PHPB-425 | 40 | 2540x2 | l50 | 2000 | 100 | 250 | 200 | 5 | 35-9-55 | 2200x1050x1900 |
| PHPB-530 | 50 | 3125x2 | 175 | 2500 | 125 | 250 | 200 | 5 | 30-7-55 | 3300x1050x1900 |
| PHPB-612 | 60 | 1270x4 | 175 | 900 | 125 | 330 | 200 | 5 | 25-6-50 | 1400x1200x2000 |
| PHPB-620 | 60 | 2030x4 | 175 | l550 | 125 | 330 | 200 | 5 | 26-6-50 | 2200x1200x2000 |
| PHPB-825 | 80 | 2540x4 | 200 | 2000 | l50 | 330 | 250 | 7.5 | 37-6-41 | 2700x1500x2200 |
| PHPB-1025 | 100 | 2540x6 | 200 | 2000 | l50 | 330 | 250 | 7.5 | 40-5-40 | 2700x1600x2300 |
| PHPB-1030 | 100 | 3125x4 | 200 | 2500 | l50 | 330 | 250 | 7.5 | 40-5-40 | 3300x1600x2300 |
| PHPB-1060 | 100 | 6000x2 | 200 | 5000 | l50 | 330 | 300 | 7.5 | 40-6-40 | 6200x1600x2300 |
| PHPB-1225 | 120 | 2540x6 | 125 | 2000 | l50 | 330 | 300 | 10 | 41-6-41 | 2700x1700x2500 |
| PHPB-1625 | 160 | 2540x8 | 125 | 2000 | 200 | 375 | 300 | l5 | 40-6-40 | 2700x1800x2500 |
| PHPB-1630 | 160 | 3125x6 | 125 | 2500 | 200 | 375 | 300 | l5 | 40-6-40 | 3300x1800x2500 |
| PHPB-2025 | 200 | 2540x10 | 250 | 2000 | 200 | 375 | 300 | 20 | 37-5-37 | 2700x2000x2600 |
| PHPB-2030 | 200 | 3125x8 | 250 | 2500 | 200 | 375 | 300 | 20 | 37-5-37 | 3300x2000x2600 |
| PHPB-2040 | 200 | 4000x6 | 250 | 3000 | 200 | 375 | 300 | 20 | 37-5-37 | 4200x2000x2600 |
| PHPB-2060 | 200 | 6000x4 | 250 | 5000 | 200 | 375 | 300 | 20 | 37-5-37 | 6200x2000x2600 |
| PHPB- 2530 | 250 | 3125x10 | 250 | 2500 | 200 | 375 | 300 | 25 | 40-5-40 | 3300x2100x2700 |
| PHPB-2540 | 250 | 4000x8 | 250 | 3000 | 200 | 375 | 300 | 25 | 40-5-40 | 4200x2100x2700 |
| PHPB-2550 | 250 | 5000x6 | 250 | 4000 | 200 | 375 | 300 | 25 | 40-5-40 | 5200x2100x2700 |
| PHPB-3025 | 300 | 2540x16 | 275 | 2000 | 200 | 425 | 300 | 30 | 36-5-36 | 2700x2150x2900 |
| PHPB-3040 | 300 | 4000Xl0 | 275 | 3000 | 200 | 425 | 300 | 30 | 36-5-36 | 4200x2150x2900 |
| PHPB-3060 | 300 | 6000x6 | 275 | 5000 | 250 | 425 | 300 | 30 | 36-5-36 | 6200x2150x2900 |
| PHPB-4025 | 400 | 2540 x20 | 300 | 2000 | 250 | 425 | 350 | 40 | 34-5-34 | 2700x2200x3000 |
| PHPB-4030 | 400 | 3125x16 | 300 | 2500 | 250 | 450 | 350 | 40 | 34-5-34 | 3300x2200x3000 |
| PHPB-5030 | 500 | 3125x20 | 350 | 2500 | 250 | 450 | 400 | 50 | 28-5-28 | 3300x2300x3200 |
| PHPB-5040 | 500 | 4000x16 | 350 | 3000 | 250 | 450 | 400 | 50 | 28-5-28 | 4200x2300x3200 |
| PHPB-5060 | 500 | 6000x10 | 350 | 5000 | 250 | 450 | 400 | 50 | 28-5-28 | 6200x2300x3200 |
We have been considered as the industry leader in hydraulic press brake machines manufacturing since the establishment of our company. Our team is committed to providing our customers with the most powerful sheet metal bending solutions with its core technology and delivering machines with superior performance so that you may increase your profit margin and expand your business. This machine provides you with a strong control system, less labour and more efficiency.
3D angled front view with all parts labeled for Hydraulic Press Brake Machine
Key Features:
| Hydraulic System Uses hydraulic cylinders to apply uniform pressure along the length of the sheet. | Rigid Frame Heavy-duty steel frame ensures stability and precision during bending. |
| Punch & Die Setup Metal sheets are pressed between a punch (upper tool) and die (lower tool) to achieve accurate bends. | Control System Equipped with manual, NC (Numeric Control), or CNC (Computer Numeric Control) for precision bending operations. |
| Safety Mechanisms Includes emergency stop, light curtains, and interlocks for operator safety. |
Automotive
Aerospace
Construction
Electrical and automotive parts production
