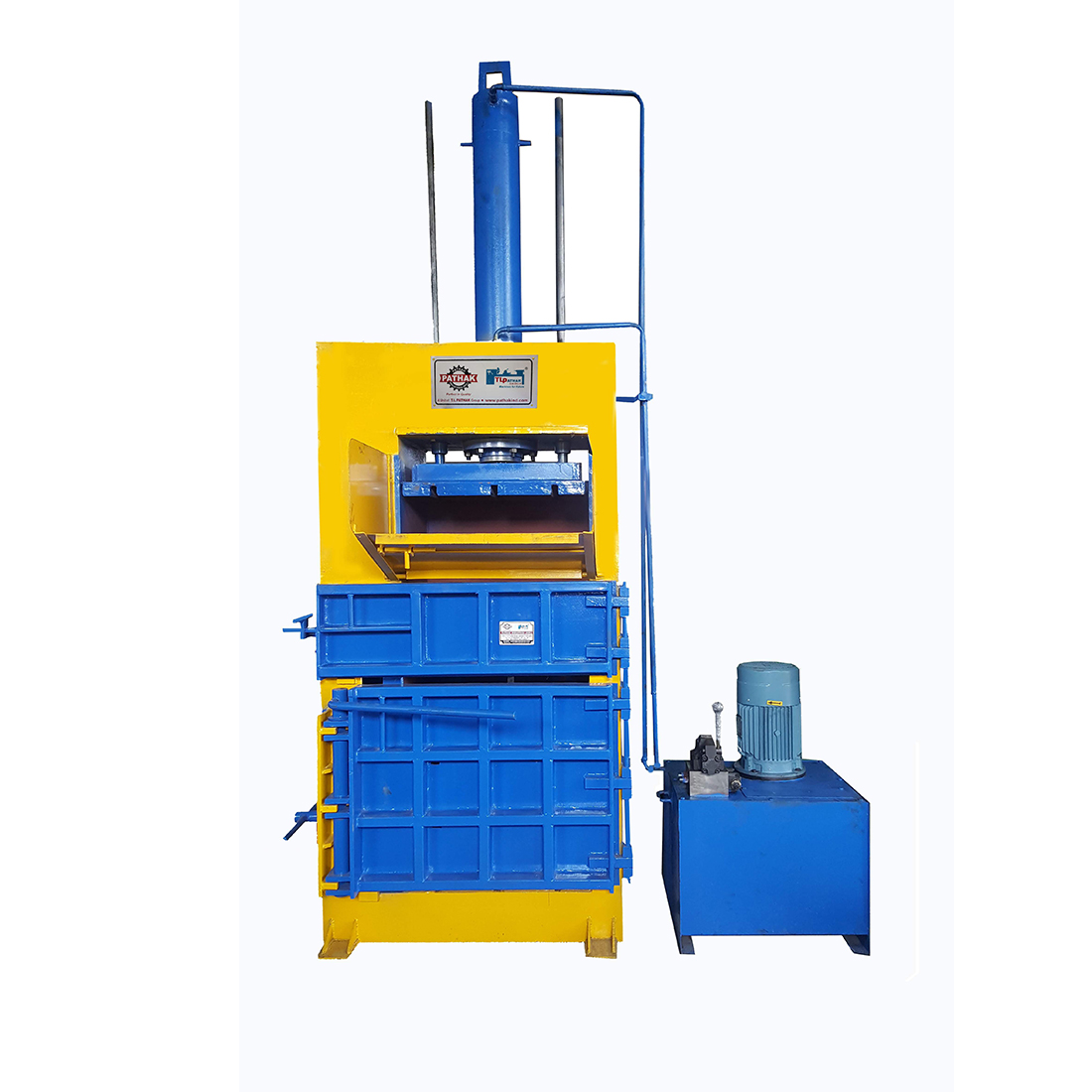

Vertical Scrap Baling Press
Scrap Baling MachinesThe TL Pathak Group introduces the Vertical Scrap Baling Press, an advanced solution for compacting and baling various types of scrap materials. This vertical design optimizes space utilization, making it suitable for facilities with limited floor space. The machine incorporates a robust hydraulic system, ensuring efficient compression and baling of scrap materials, resulting in compact and manageable bales for easy handling and transportation.
The Vertical Scrap Baling Press by TL Pathak Group is designed with user-friendly controls, prioritizing safety and ease of operation. Its durable construction and high-quality components contribute to a reliable performance and reduced maintenance requirements, enhancing overall operational efficiency.
This innovative solution aligns with TL Pathak Group's commitment to sustainable waste management practices. By investing in the Vertical Scrap Baling Press, businesses can streamline their scrap processing operations, reduce environmental impact, and contribute to a more circular and responsible approach to waste management in various industries.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Model | PVB 25 | PVB 40 | PVB 50 | PVB 15T |
| Capacity | 25 Ton Pressure Capacity.Single Chamber Single Cylinder Baler Machine | 40 Ton Pressure Capacity.Single Chamber Single Cylinder Baler Machine | 50 Ton Pressure Capacity.Single Chamber Single Cylinder Baler Machine | - |
| Bale Size | 30(L)x26(W) in inch | 34(L)x26(W) in inch | 34(L)x26(W) in inch | 12"x12" |
| Bale Weight | Plastic Bottle 50 to 60 kg,Cartoon Box 100 kg | Plastic Bottle 100 to 130 kg/Cartoon,Paper 100 to 150 kg | Plastic Bottle 150 to 160 kg,Cartoon,Paper 150 to 200 kg | 35 kg to 50 kg |
| Chamber Size | 30(L)x26(W)x45(H) in inch | 34(L)x26(W)x52(H) in inch | 34(L)x26(W)x62(H) in inch | 12"x12"x45" |
| No of Cylinder | 1 Nos. | 1 Nos. | 1 Nos. | - |
| No. of Tie | 3 Nos. | 3 Nos. | 3 Nos. | - |
| No. of Door | 2 Nos. | 2 Nos. | 2 Nos. | - |
| Cylinder Size | 140 (Bore)x160 (OD)x90 (Ram)x1000 (Stroke) mm | 160 (Bore)x195 (OD)x105 (Ram)x1200 (Stroke) mm | 170 (Bore)x205 (OD)x110 (Ram)x1300 (Stroke) mm | - |
| Bale Eject | Swing Plate | Swing Plate with Screw Systems | Swing Plate with Screw Systems | - |
| Oil Tank Capacity | 80 lit. | 200 lit. | 200 lit. | - |
| Production Rates | 10 to 15 minutes | 20 to 25 minutes | 20 to 25 minutes | - |
| Hydraulic System | Gear Pump Systems | Vane Pump Systems | Double Pump Systems | - |
| Day Light Gap | 45 inch | 52 inch | 62 inch | - |
| Operation | Hand Levers Operate Systems | Hand Levers Operate Systems | Hand Levers Operate Systems | Manual/Semi-Auto |
| Electric Motor Make ISI | 5 HP Motor,3 Phase,1440 RPM,50 HZ | 10 HP Motor,3 Phase,1440 RPM,50 HZ | 10 HP Motor,3 Phase,1440 RPM,50 HZ | 2 HP Motor |
| Overall Dimension | 70(L)x50(W)x120(H) in inch | 90(L)x36(W)x130(H) in inch | 90(L)x36(W)x150(H) in inch | - |
| Body Plate | 8 mm,10 mm,25 mm | 8 mm,12 mm,30 mm | 8 mm,12 mm,30 mm | - |
