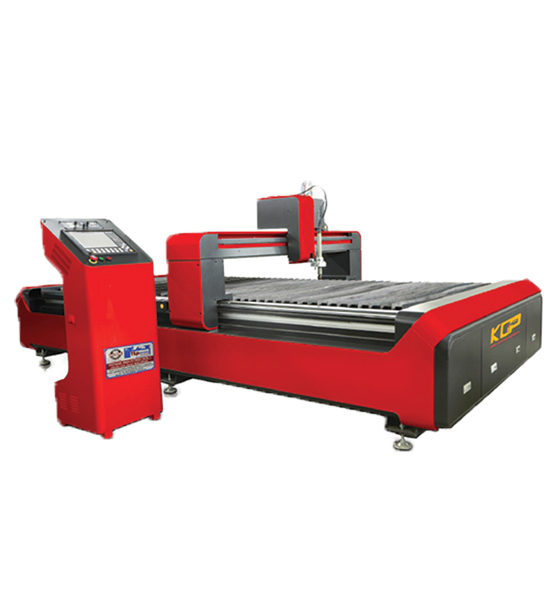

Arc Mate Advance CNC Plasma Cutting Machine
CNC MachinesWe provide our
customers with an extensive range of Arcmate Advance CNC Plasma Cutting Machine,
which you will not be able to find anywhere in the market at minimal rates with
the best quality. With the usage of this machine you will be able to cut 2mm to
25mm mild steel with a wireless remote for the x-y alignment of the axis.
From ₹
1,455,000
To
1,765,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
Oxy Fuel Cutting Torch
| Specification | Description | |
| Machine Type | Advance Table Top | |
| Model No | Arcmate Advance TT PC1530ST | Arcmate Advance TT PC1530SR |
| Advance Feature | Wireless remote for x-y- axis alignment | |
| Driving Configuration | Dual drive 86 series stepper motor | Dual drive 400w servo motor with planetary reducer |
| Cutting Head | Plasma with Auto z-axis up-down movement and Oxyfuel with manual up down switch | |
| Max. Travel Speed | 6000mm/min | 12000mm/min |
| Input Power | Single phase 220V, 50Hz + Plasam (depends on power source slection) | |
| Gases Required | Compressed air for plasma cutting / LPG and Oxygen for Oxy-fuel cutting | |
| Z- axis (torch) Lifiting Distance | <100mm | |
| Working Accuracy | +/-01.15mm | |
| Cutting Capacity | 2mm to 25 mm (Mild steel) depending on Plasam power source selection / 10mm to 150mm for Oxy-fuel cutting | |
| Controller | 10.4" wide colour screen CNC automation dedicated controller for plasma and oxy-fuel. | |
| Nesting Software | Fast Cam basic | |
| Cutting Table Base | Standard material collection table with weight carrying capacity of 1200kg | |
| Req. Installation Area | W 2.2 *L 4.2m *H1.5m | |
