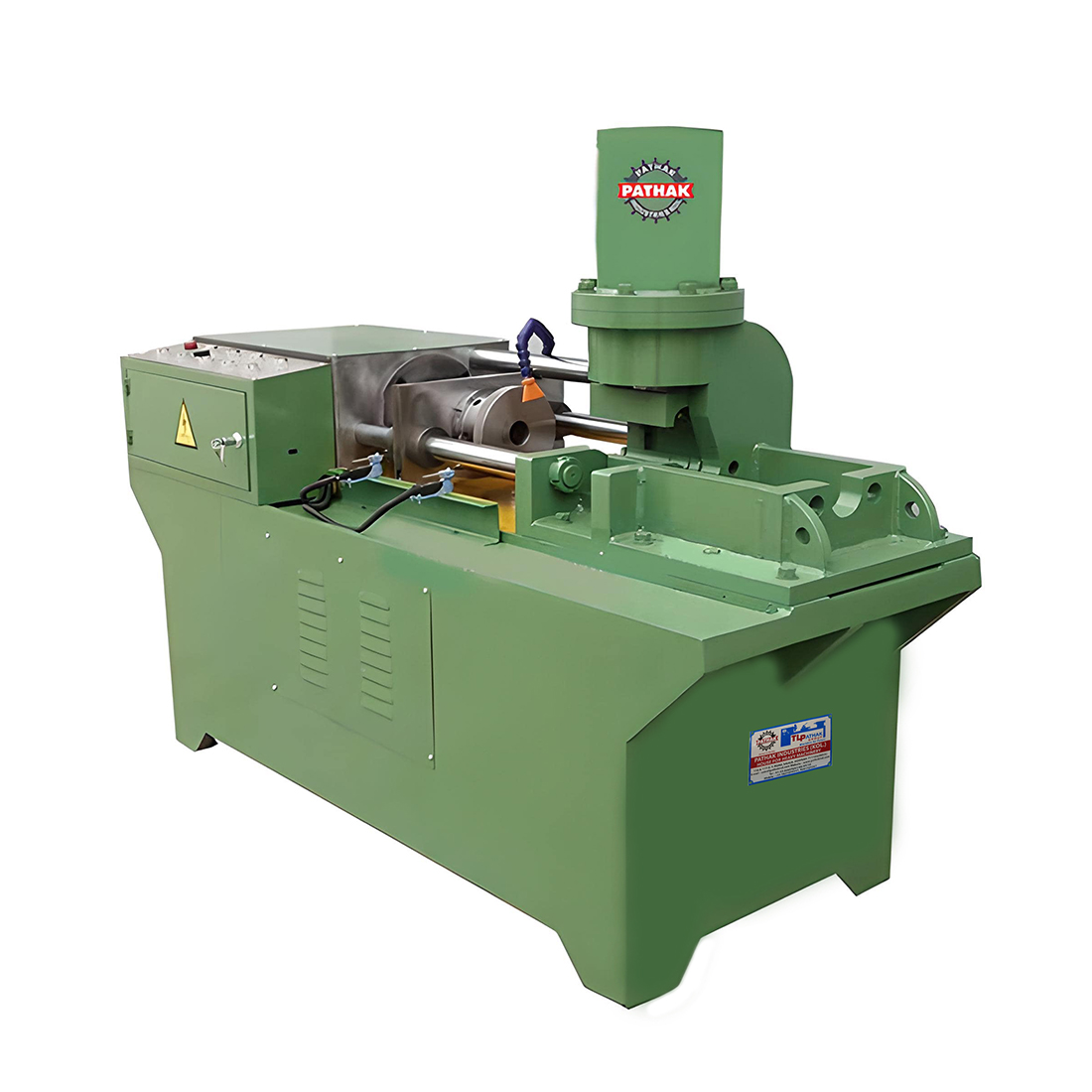

Rod Reducing Machine
Special Purpose Machines (SPM'S)TL Pathak Group's rod reducing machine is a cutting-edge solution designed for precision and efficiency in the metalworking industry. This innovative equipment is meticulously engineered to reduce the diameter of rods with utmost accuracy, meeting the highest industry standards. The machine boasts advanced features, including state-of-the-art automation, ensuring seamless operation and minimizing human intervention. Its robust construction and cutting-edge technology make it a reliable choice for various applications, enhancing productivity and cost-effectiveness. TL Pathak Group's commitment to quality and performance is evident in this rod reducing machine, making it an indispensable asset for businesses seeking top-tier solutions in metal processing.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Model | TLPRR-24 | TLPRR-36 | TLPRR-42 | TLPRR-50 | TLPRR-60 |
| Diameter Range | 12-24 mm | 12-36 mm | 12-42 mm | 12-50 mm | 12-60 mm |
| Max Pressure | 16 Mpa | 20 Mpa | 25 Mpa | 25 Mpa | 25 Mpa |
| Length | 0-200 mm | 10-300 mm | 0-300 mm | 0-350 mm | 0-400 mm |
| Motor Power | 11 KW | 15 KW | 18.5 KW | 18.5 KW | 22 KW |
| Productivity | 5-8/min | 4-7/min | 4-7/min | 4-7/min | 4-7/min |
| Shrink Cylinder | 30 T | 40 T | 60 T | 75 T | 80 T |
| Clamping Cylinder | 40 T | 50 T | 45 Tx2 | 45 Tx2 | 50 Tx3 |
| Dimensions | 1.7x1.0x1.4 mm | 1.9x1.0x1.4 mm | 2.0x1.5x1.6 mm | 2.2x1.5x1.7 mm | 2.6x1.5x1.7 mm |
| Weight | 1000 kg | 1600 kg | 2100 kg | 2600 kg | 3000 kg |
