Pet Bottle Vertical Press

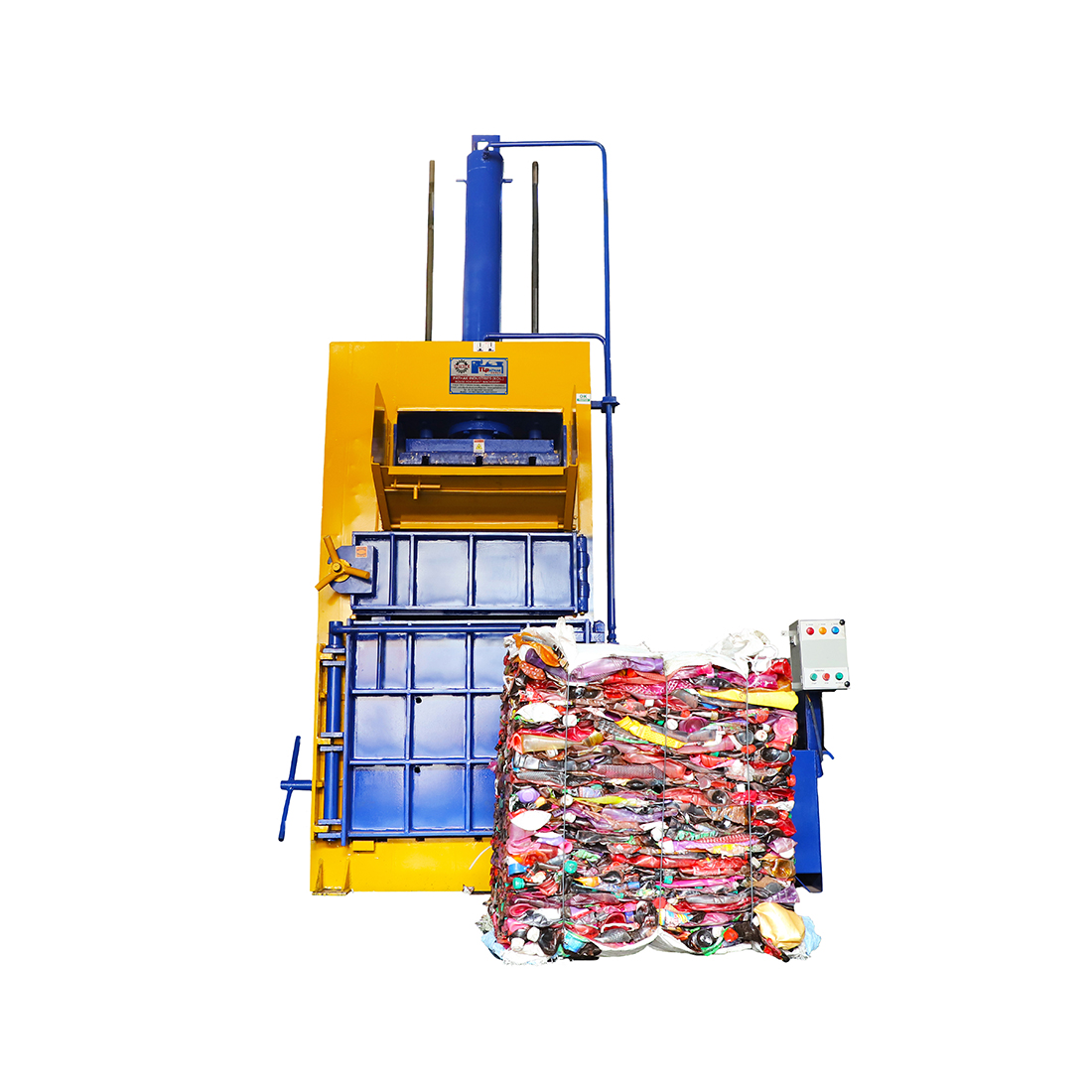

Scrap Baling MachinesTL Pathak Group presents the Pet Bottle Vertical Press, a compact and efficient solution for compressing and baling PET bottles. This vertical design optimizes space, making it ideal for facilities with limited room. The machine utilizes a robust hydraulic system to compress PET bottles effectively, producing compact and manageable bales for easy storage and transportation. User-friendly controls ensure safe and straightforward operation, while the high-quality construction enhances durability and minimizes maintenance needs.
The Pet Bottle Vertical Press exemplifies TL Pathak Group's commitment to sustainable waste management in the plastics industry. By investing in this innovative solution, businesses can streamline their PET bottle recycling processes, contributing to a circular economy and reducing the environmental impact of plastic waste. TL Pathak Group continues to pioneer eco-friendly solutions in waste management machinery.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Model | PETVB 30 | PETVB 40 | PETVB 50 | PETVB 75 |
| Capacity | 30 Ton Pressure Capacity.(O frame) Single Chamber Single Cylinder Baler Machine | 40 Ton Pressure Capacity.(O frame) Single Chamber Single Cylinder Baler Machine | 50 Ton Pressure Capacity.(O frame) Single Chamber Single Cylinder Baler Machine | 75 Ton Pressure Capacity.(O frame) Single Chamber Single Cylinder Baler Machine |
| Bale Size | 30(L)x20(W) in inch | 30(L)x20(W) in inch | 30(L)x20(W) in inch | 30(L)x20(W) in inch |
| Bale Weight | Plastic Bottle 50 to 80 kg | Plastic Bottle 50 to 100 kg | Plastic Bottle 100 to 150 kg | Plastic Bottle 150 to 200 kg |
| Chamber Size | 30(L)x20(W)x50(H) in inch | 30(L)x20(W)x56(H) in inch | 30(L)x20(W)x64(H) in inch | 30(L)x20(W)x70(H) in inch |
| No of Cylinder | 1 Nos. | 1 Nos. | 1 Nos. | 1 Main+1 Pusher (2 Nos.) |
| No. of Tie | 3 Nos. | 3 Nos. | 3 Nos. | 4 Nos. |
| No. of Door | 2 Nos. | 2 Nos. | 2 Nos. | 2 Nos. |
| Cylinder Size | 150 (Bore)x180 (OD)x100 (Ram)x1100 (Stroke) mm | 160 (Bore)x195 (OD)x105 (Ram)x1200 (Stroke) mm | 170 (Bore)x205 (OD)x110 (Ram)x1300 (Stroke) mm | 200 (Bore)x245 (OD)x135 (Ram)x1500 (Stroke) mm |
| Bale Eject | Swing Plat with Screw Systems | Swing Plat with Screw Systems | Swing Plat with Screw Systems | Cylinder Systems |
| Oil Tank Capacity | 150 lit. | 200 lit. | 200 lit. | 400 lit. |
| Production Rates | 20 to 25 minutes | 20 to 25 minutes | 20 to 25 minutes | 20 to 25 minutes |
| Hydraulic System | Gear Pump Systems | Vane Pump Systems | Double Pump Systems | Double Pump Systems |
| Day Light Gap | 50 inch | 56 inch | 64 inch | 70 inch |
| Operation | Hand Levers Operate Systems | Hand Levers Operate Systems | Hand Levers Operate Systems | Hand Levers Operate Systems |
| Electric Motor Make ISI | 7.5 HP Motor,3 Phase,1440 RPM,50 HZ | 10 HP Motor,3 Phase,1440 RPM,50 HZ | 10 HP Motor,3 Phase,1440 RPM,50 HZ | 15 HP Motor,3 Phase,1440 RPM,50 HZ |
| Overall Dimension | 84(L)x36(W)x120(H) in inch | 84(L)x36(W)x140(H) in inch | 84(L)x36(W)x150(H) in inch | 90(L)x70(W)x160(H) in inch |
| Body Plate | 8 mm,12 mm,30 mm | 8 mm,12 mm,30 mm | 8 mm,12 mm,30 mm | 8 mm,12 mm,30 mm |
