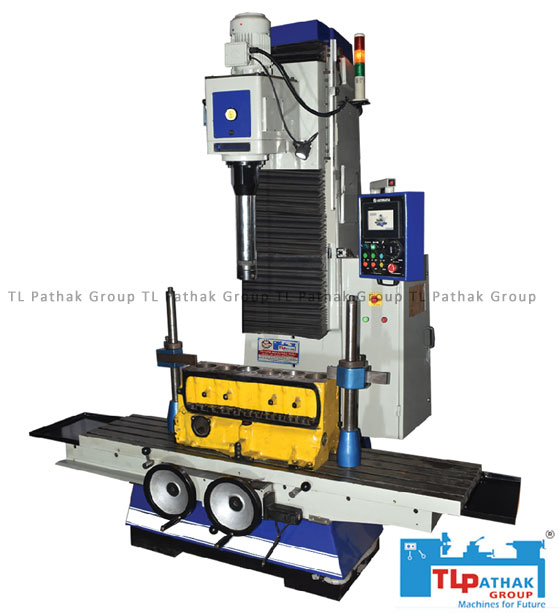

Vertical Cylinder Fine Boring Machine

Garage Machines
Our engineers manufacture the best quality vertical cylinder fine boring machine with easy operations mainly designed for fine and accurate machining cylinder bores. Its latest technology allows it to smooth functioning, and premium quality raw material provides durability and long functional life.
Send Enquiry
Download Catalog Request Catalog

Order By Phone

Shipping Information Usually dispatched With In business days

+91-9124009247 OR Call Me Back
Specifications
MODEL PCFBM 2500 PCFBM 2200 PCFBM 1500V PCFBM 1500V PCFBM 1200V PCFBM 1200V
Boring Capacity 62-265 MM 62-265 MM 48-220 MM 48-220 MM 62-135 MM 62-135 MM
Boring Capacity With Extra Spindle
-
 38-350 MM 38-310 MM 38-310 MM 38-190 MM 38-190 MM
Milling Length 2300 MM 1800 MM 1350 MM
-
 1250 MM
-
Milling Width 400 MM 400 MM 350 MM
-
 350 MM
-
Maximum Boring Head Travel 850 MM 850 MM 700 MM 700 MM 600 MM 600 MM
Maximum Distance Head To Table 1500 MM 1500 MM 1340 MM 1340 MM 1300 MM 1300 MM
Maximum Distance Between Outer Cylinder Center 2500 MM 1800 MM 1200 MM 1200 MM 900 MM 900 MM
Max Work Piece on Table
-
 2500 KG 1000 KG 1000 KG 750 KG 750 KG
Spindle Speed Motor 2.2 KW / 3 HP 2.2 KW / 3 HP -1440 RPM 1.5 KW / 2 HP 1.5 KW / 2 HP 1.5 KW / 2 HP 1.5 KW / 2 HP
Motor Rapid & Feed
-
 0.4 KW Servo Control Motor 0.37 kw / 0.5HP 0.37 kw / 0.5HP 0.37 kw / 0.5HP 0.37 kw / 0.5HP
Motor Table Traverse Longitudinal 2700 MM 0.37 kw / 0.5HP 0.37 kw / 0.5HP
-
 0.37 kw / 0.5HP
-
Spindle Speeds 50-750 RPM 50 TO 750
(Infinitely Variable)		 50 TO 750
(Infinitely Variable)		 (Infinitly Variable)
50 TO 750 RPM 		(Infinitly Variable)
50 TO 750 RPM 		(Infinitly Variable)
50 TO 750 RPM
Spindle Feeds
-
 10 TO 100 MM / MIN 12 - 100 MM / MIN 12 - 100 MM / MIN 12 - 100 MM / MIN 12 - 100 MM / MIN
Maximum Distance From Spindle Center To Column 500 MM 500 MM 410 MM 410 MM 360 MM (14.17'') 360 MM
Working Table Size (L X W) 2500 X 600 MM 2200 MM X 600 MM 1500 X 450 MM 1500 X 450 MM 1200 X 360 MM 1200 X 360 MM
Table Traverse - Longitudinal 2700 MM 2050 MM 1850 MM 1350 MM 1300 MM 850 MM
Table Traverse - Cross Wise 150 MM 150 MM 120 MM 120 MM 75 MM 75 MM
Length of The Machine 3300 MM 3300 MM 2800 MM 2500 MM 2200 MM 1900 MM
Width of The Machine 1800 MM 1800 MM 1440 MM 1420 MM 1300 MM 1300 MM
Height of The Machine 3050 MM 3050 MM 2525 MM 2525 MM 2440 MM 2440 MM
Work Space Required (L X W) 4500 X 1850 MM 4500 X 1850 MM 4050 X 1520 MM 4050 X 1520 MM 2880 X 1400 MM 2880 X 1400 MM
Net Weight 5000KGS 4800 KGS 3500 KGS 3000 KGS 2650 KGS 2500 KGS
Cross Weight 6000KGS 5800 KGS 4000 KGS 3500 KGS 3300 KGS 3200 KGS
Shipping Volume 15m3 15m3 9.5M3 9 M3 9 M3 7M3
