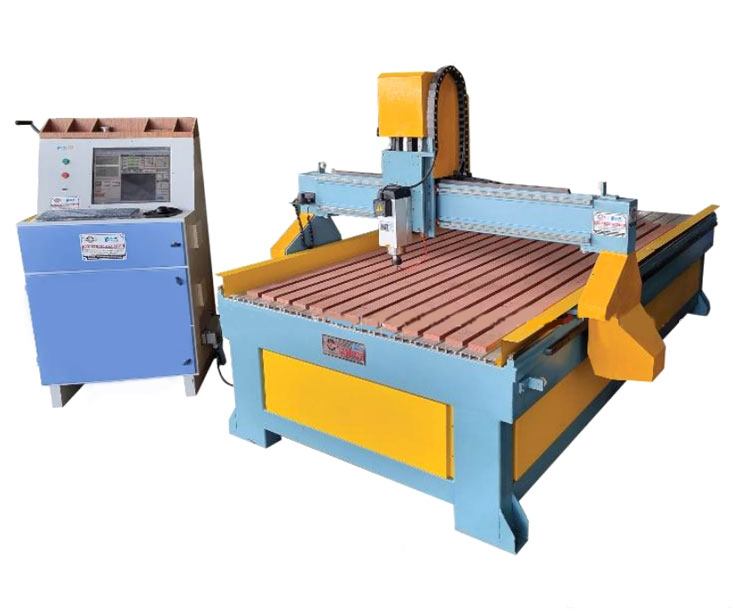

Cnc Router Machine
CNC MachinesT.L Pathak leading manufacturer & exporters of CNC Router Machine
Features
- Inbuilt computer system
- Auto tool height sensor
- Control system from U.S.A
- Variable speed and feed range
- Easy to use software
150 GB Data Provided Presaved Approx 18000 Designs With Catalogue
From ₹
588,000
To
750,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
| Working Area | 4x8 Feet (Standard router) |
| 6 Feet L & 5x5 dia (Router with Rotary) | |
| Z Height | 250mm |
| Transmission X/Y | Helical Rack |
| Table Structure | 100x200 Fabrication Pipe |
| Bed Structure | T Slot Aluminum |
| Spindle Power | 4.5 KW Air Cooled |
| Motion Motor | Stepper |
| Max motion speed | 7000 mm/min |
| Gear Box | Casting Gear Box |
| Rail guide & ball screw | Hiwin (Taiwan) |
| Spindle Drive | Fuji (Japan) |
| Controller | Mach3 |
| Opeating Tool | Computer Panel |
| Machine accuracy | <0.1 mm |
| Opeating Power | Three phase |
| Machine Wight | 1200 kg |
| Auto Tool Zero | Yes |
| Fixture Save Feature | Yes |
| Spindle Speed | Analog Speed |
