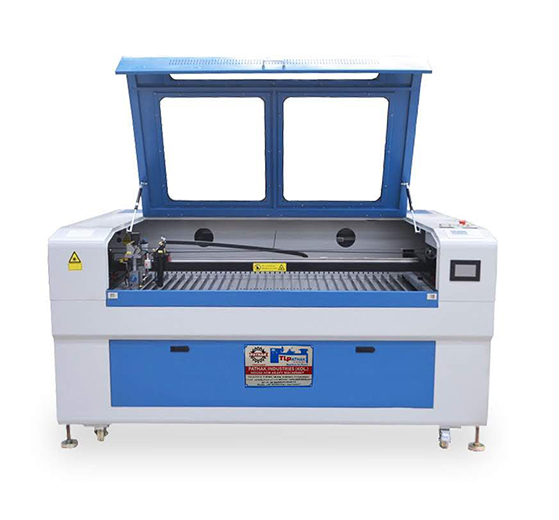

CO2 Laser Cutting Machine
CNC MachinesAs one of the most popular and non-manufacturing producers of CO2 laser cutting machines in the market, we provide our clients with the best quality machines at affordable prices. Our machines are made from modern and sophisticated technology which are used in the all screening pipe to prevent the sediment from entering into the pipe and cutting of even beams.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| DESCRIPTION | CO2L-6040 |
CO2L-960 |
CO2L-1080 |
CO2L-1390 |
CO2L-1325 |
| Working Area | 600x400 | 900x600 | 1000x800 | 900x1300 | 1300x2500 |
| Laser Power | 30-150 W | 30-150 W | 30-150 W | 30-150 W | 30-150 W |
| Cutting Speed | 60,000 mm/mn | 60,000 mm/mn | 60,000 mm/mn | 60,000 mm/mn | 60,000 mm/mn |
| Power Supply | 220 V /50 Hz | 220 V /50 Hz | 220 V /50 Hz | 220 V /50 Hz | 220 V /50 Hz |
| Graphic formet supported | DST,PLT,BMP,DXT | DST,PLT,BMP,DXT | DST,PLT,BMP,DXT | DST,PLT,BMP,DXT | DST,PLT,BMP,DXT |
| Software Supportec | Coreldraw, Photoshop Autocad |
Coreldraw, Photoshop Autocad | Coreldraw, Photoshop Autocad | Coreldraw, Photoshop Autocad | Coreldraw, Photoshop Autocad |
| Driving Motor | Stepper Motor | Stepper Motor | Stepper Motor | Stepper Motor | Stepper Motor |
| Operating temperature | - |
- |
0-45'C |
- |
- |
| Operating humidity | 5-95 % | 5-95 % | 5-95 % | 5-95 % | 5-95 % |
| Equipment Size | 1360x800x1080mm | 1460x800x1080mm | 1560x1250x1080mm | 2080x1300x1300mm | 3000x1300x1600mm |
| Weight | 250 KG | 280 KG | 320 KG | 360 KG | 1100 KGS |
