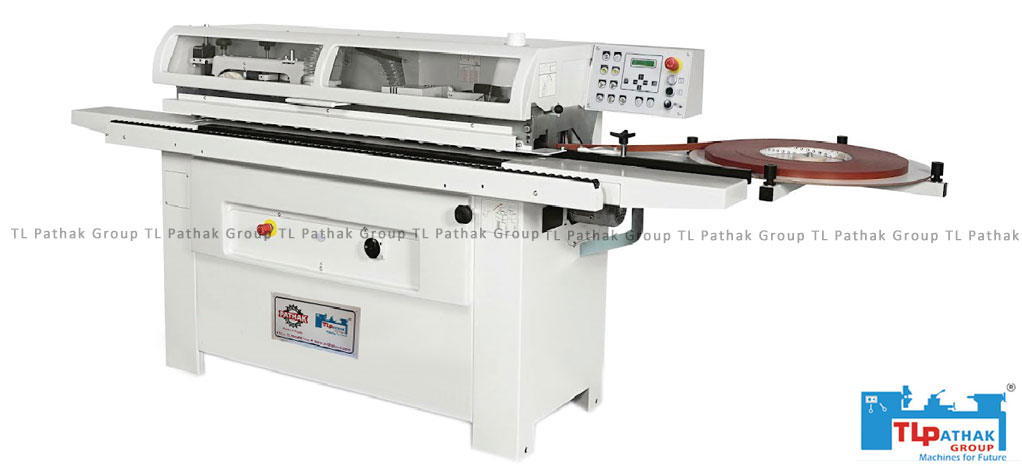

Automatic Edge Bander
Wood Working MachinesPathak is a leading brand that manufactures the best quality, automatic edge bands machines mainly used to cover the exposed sides of materials such as plywood, particleboard or MDF, made with premium quality material and the latest technology provides durability and efficiency to customers. The machine also helps in increasing output and provides smooth functioning.
From ₹
525,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
DESCRIPTION |
TF-5 / TF-6 |
| Panel Thickness Without Round Trimming | 10-60 mm |
| Panel Thickness With Round Trimming | 10-45 mm |
| Panel Width Without Round Trimming | Min.60mm |
| Panel Width With Round Trimming | Min. 130mm |
| Panel Length Without Round Trimming | Min.120mm(PVC) |
| Panel Length With Round Trimming | Min.140mm |
| Edge Thickness Without Tound Trimming | 0.4 15mm |
| Edge Thickness With R Round Trimming | 0.4 to 3mm |
| Edge Width Without Round Trimming | 10-65mm |
| Edge Width With Round Trimming | 15-50mm |
| Feeding Speed Without Round Trimming | 13-18m/min |
| Feeding Speed With Round Trimming | 13m/min |
| Installed Power | 8.58KW |
| Pneumatic pressure | 6-8kg/Cm2 |
