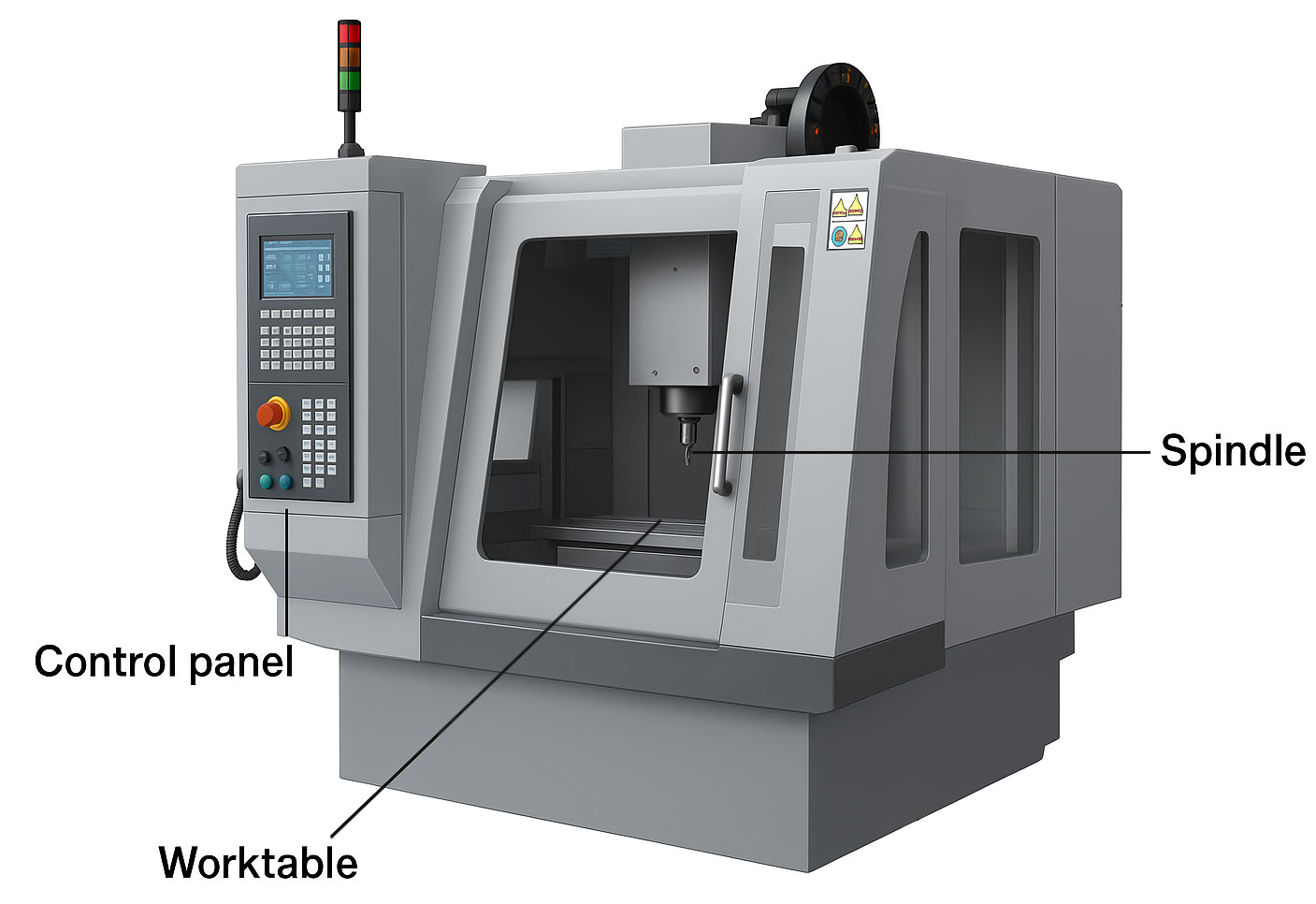

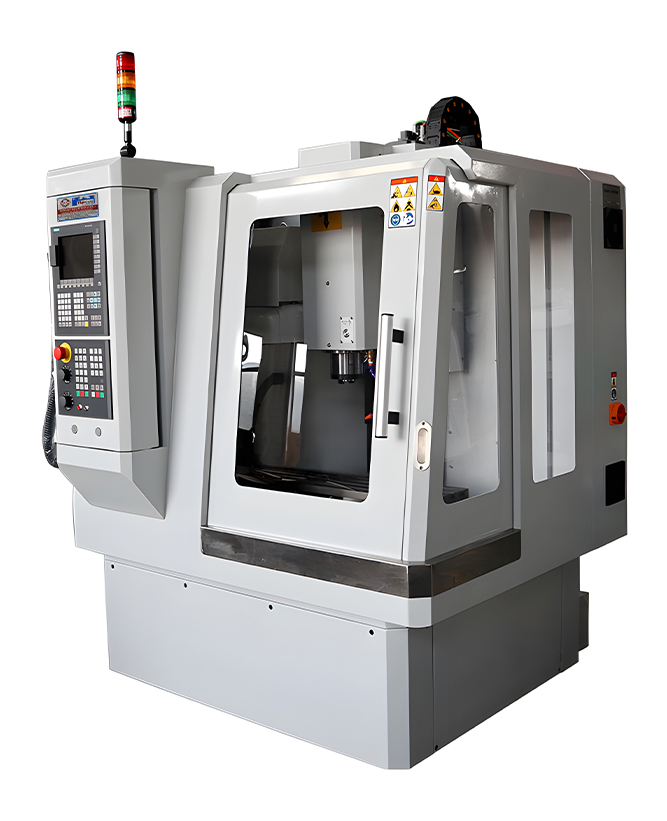

CNC Milling Machine
Milling MachinesTL Pathak Group's CNC Milling Machine epitomizes cutting-edge machining technology, offering unparalleled precision and efficiency. This high-performance machine is designed to cater to a wide range of milling applications, ensuring superior accuracy and surface finish. The CNC control system provides seamless programming capabilities, allowing for intricate and complex machining tasks. The machine's robust construction ensures stability during high-speed operations, making it suitable for diverse industries such as aerospace, automotive, and toolmaking. The innovative features, including advanced tool-changing systems and spindle technologies, enhance productivity and reduce setup times. TL Pathak Group's CNC Milling Machine stands as a testament to their commitment to delivering state-of-the-art solutions, meeting the evolving demands of modern manufacturing with precision, reliability, and versatility.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Model Name | TLPCM 122 | TLPCM 126 | TLPCM 132 | TLPCM 136 |
| Worktable Size | 700x210 mm | 800x260 mm | 800x320 mm | 1250x360 mm |
| T-Slots (NxWxD) | 5-18x100 mm | 3-16x75 mm | 3-16x100 mm | 3-18x80 mm |
| X/Y/Z Axis Travel | 400/220/350 mm | 450/320/450 mm | 600/400/450 mm | 900/350/500 mm |
| Distance From Spindle Center to Column | 270 mm | 360 mm | 400 mm | 460 mm |
| Distance From Spindle Nose to Worktable Surface | 75-520 mm | 90-540 mm | 100-550 mm | 100-600 mm |
| Spindle Taper | BT30 | BT40 | BT40 | BT40 |
| Spindle Power | 2.2-3.7 K.W. | 3.7 K.W. | 5.5 K.W. | 5.5 K.W. |
| Max. Spindle Speed | 8000 RPM | 8000 RPM | 8000 RPM | 8000 RPM |
| Max. Feed Speed | 18 m/min | 10 m/min | 10 m/min | 10 m/min |
| Rapid Feed Speed (X/Y/Z) | 10/10/10 m/min | 15/15/15 m/min | 20/20/18 m/min | 10/10/8 m/min |
| AC Servo Motor Torque (X/Y/Z) | 6/6/6 N.m. | 6/6/15 N.m. | 7.7/7.7/15 N.m. | 7.7/7.7/15 N.m. |
| X/Y/Z Feed Motor Power | 0.75/0.75/1 K.W. | 1/1/2 K.W. | 1.5/1.5/2 K.W. | 1.5/1.5/2 K.W. |
| Power | 4.5 K.W. | 8 K.W. | 11 K.W. | 11 K.W. |
| X/Y/Z Ball Screw | 2505 | 2510 | 3210 | X-3206,Y-4006 |
| Tool Magazine Capacity | 8T/12T (optional) | 12T | 12T/16T (optional) | 16T |
| Tool Length | 175 mm | 200 mm | 200 mm | 200 mm |
| Tool Change Time | 7 S. | 7 S. | 7 S. | 7 S. |
| Positioning Accuracy (X/Y/Z) | 0.02 mm | 0.02 mm mm | 0.01 mm mm | 0.02 mm mm |
| Re-Positioning Accuracy (X/Y/Z) | 0.01 mm | 0.01 mm | 0.005 mm | 0.01 mm |
| Overall Dimension (LxWxH) | 1470x1550x2080 mm | 2100x1850x2250 mm | 2200x1950x2300 mm | 3000x2150x2450 mm |
| Machine Weight | 1300 kg | 2200 kg | 2400 kg | 3500 kg |
