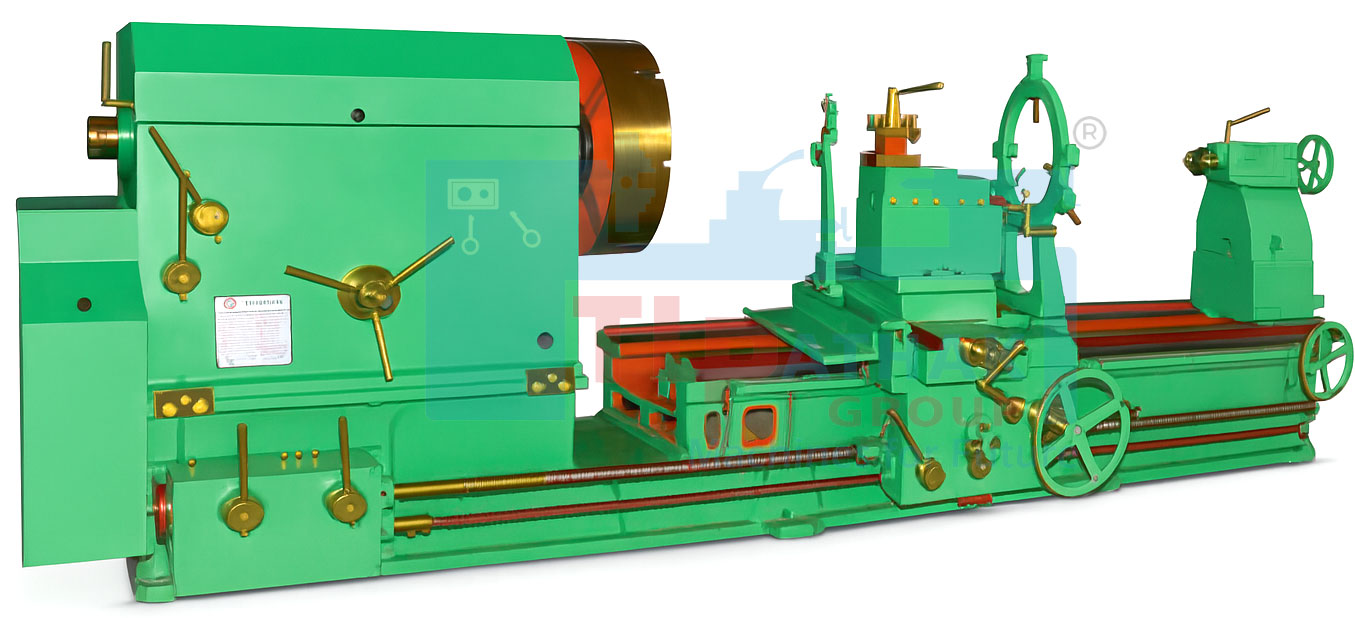

Roll Turning Lathe Machine / Oil Country Lathe
Lathe MachinesDownload Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
Face Plate
Chuck Plate
Set Of 22 Change Gears
Stationery Steady
Follow Rest Assembly
Dead Centers
Electric Coolant Pump
Electric Motor & Starter
3jaw self centering chuck
Gears To Cut Metric Threads
Taper Turning Attachment
Tool Post Grinder
4jaw Independent Chuck
Norton Gear Box
Digital Read Out
Revolving Center
Keyway Cutting Attachment
| Model | PRTL-12 | PRTL-16 | PRTL-20 | PRTL-24 |
| Length of Bed (With Head Stock) | 12' | 16' | 20' | 24 |
| Width of Bed | 26" | 26" | 28" | 28 |
| Height of Center | 24" | 24" | 25" | 26 |
| Swing over Bed dia. | 47" | 47" | 51 | 51 |
| Swing in Gap dia. | 72" | 72" | 76 | 76 |
| Width of gap intent of face plate | 14" | 14" | 15 | 16 |
| Swing over saddle center | 37" | 37" | 41 | 41 |
| Admit between center | 70" | 70" | 155 | 213 |
| Spindle hollow | 41/8" | 41" | 41/8 | 41/8 |
| No. of Spindle speed | 6 | 6 | 6 | 6 |
| Size of Morse taper | MTS | MTS | MTS | MTS |
| Lead screw pitch | 2PTI | 2PTI | 2PTI | 2PTI |
| Power required in H.P. | 7.5 | 10 | 15 | 20 |
| R.P.M motor approx. | 960 | 960 | 960 | 960 |
| Approx. weight in Kgs. | 5000 | 6000 | 7200 | 8000 |
We are considered one of the leading companies for providing a wide variety of applications in lathe machines such as oil country, steel and paper mills, power plants, shipbuilding, mining, and textile industry. Our rugged machines are very useful for production-oriented users and are very much superior in their close-grained iron casting that is seasoned to time.
Key Features
| Large Spindle Bore Ideal for turning thick pipes and long shafts. |
| Heavy-Duty Bed Provides rigidity and vibration resistance during large-scale operations. |
| Extra Length Between Centers Supports long roll turning or oil tool applications. |
| High Torque Gearbox Enables high power transmission for heavy-duty cutting. |
| Power Chuck & Steady Rests Securely hold large workpieces like oil pipes and rolls. |
| Hydraulic / Manual Tailstock Ensures support at the end of long workpieces. |

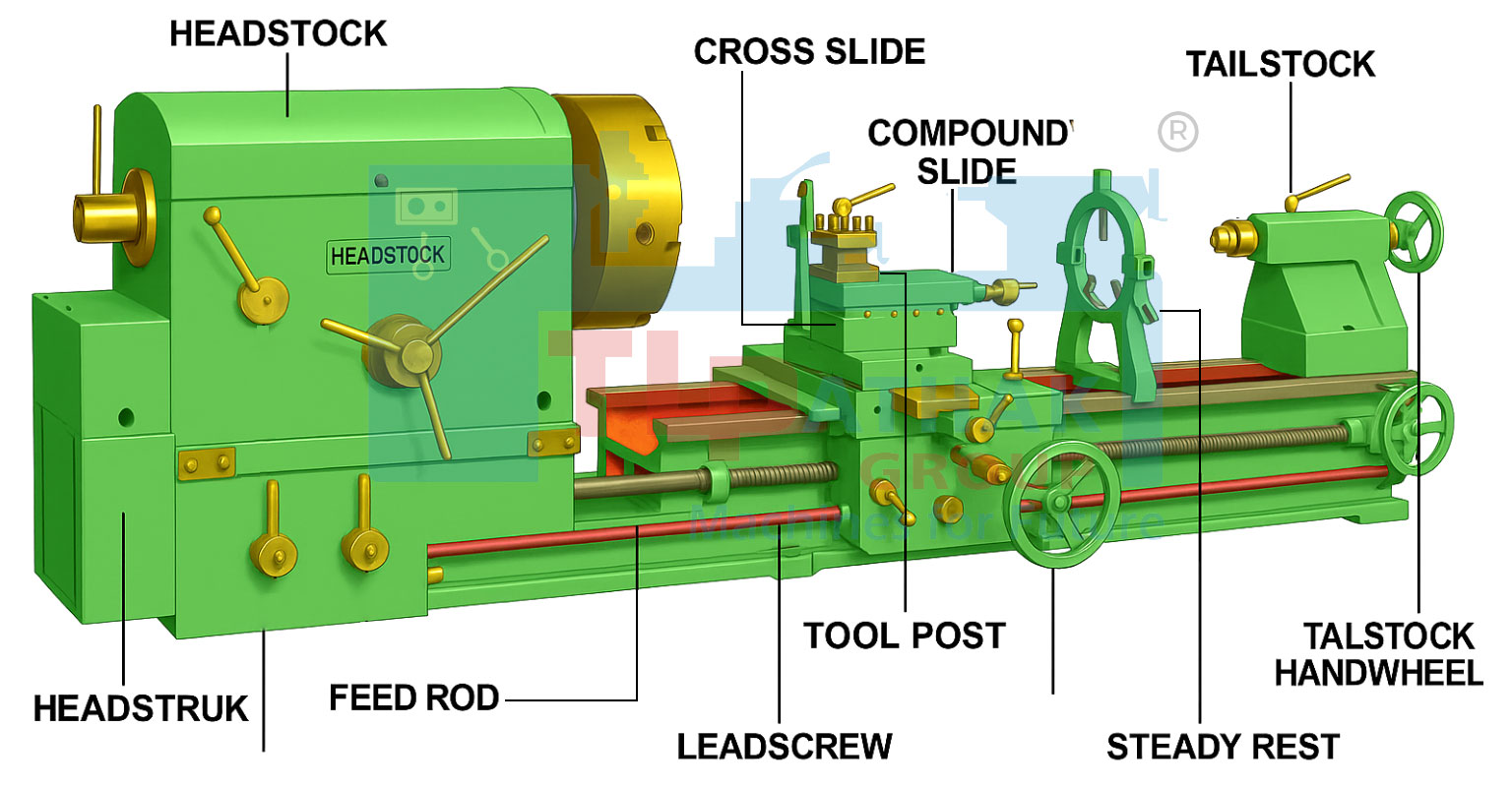

3D angled front view with all parts labeled for Roll Turning Lathe Machine / Oil Country Lathe
Roll turning lathe machine applications and use
A roll turning lathe machine is a specialized type of heavy-duty lathe designed primarily for turning large industrial rolls, such as those used in rolling mills, paper mills, steel plants, and rubber processing industries. These machines are capable of handling very large and heavy cylindrical workpieces with high precision.
Applications of Roll Turning Lathe Machines:
| Steel and Aluminum Rolling Mills: Turning and machining of work rolls and backup rolls. Ensures precise surface finish and correct profile for metal forming processes. |
| Paper Mills: Machining of calendar rolls and press rolls used in paper production. Helps maintain smoothness and uniformity in paper thickness. |
| Rubber and Plastic Industries: Turning rolls used in extrusion and calendaring machines. Provides accurate dimensions and balance to avoid vibration. |
| Textile Industry: Used to machine rolls involved in fabric processing and finishing machines. |
| Power Generation Industry: Used in the manufacture and maintenance of large generator rotors and turbine shafts. |
| Shipbuilding and Heavy Engineering: Turning large propeller shafts and other cylindrical components. |
Uses & Functions of Roll Turning Lathe Machine / Oil Country Lathe
| Rough and finish turning of large-diameter, long-length rolls. |
| Profile turning (e.g., crown, taper) to achieve specific roll shapes. |
| Grooving for rolls used in metal forming. |
| Facing and threading of ends of long shafts or rolls. |
| Balancing preparation, by precisely machining the roll surface. |
Country Oil
Ship Building
Power Plants
Steel & Paper Mills
Mining Industries
Textile Industries
Rolling Mill
