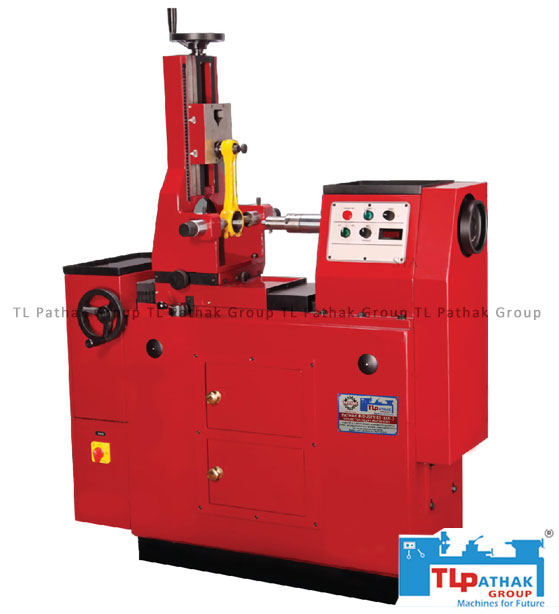

Connecting Rod Boring Machine
Garage MachinesPathak manufacturing best quality Connecting Rod Boring Machine mainly available with rigid and vibration-free structure with variable speed and accurate tool setting. It provides long functional life and works efficiently and smoothly with a low maintenance cost, and its latest technology helps provide various features that a buyer needs.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
| MODEL | ARB 500 |
| Minimum And Maximum Bore Center of Con-Rod | Min 80 - Max 600 mm |
| Boring Spindle Speeds (Variable - VFD) | Infinitely variable, 100-1600 rpm |
| Boring Range | Min 015 - Max 0175 |
| Feed Both Direction | Infinitely Variable |
| Table Traverse - Crosswise | 50 mm |
| Table Movement - Longitudinal | 450 mm |
| Spindle Speed Motor | 1 HP 3PH 50 Hz |
| Motor Table Feed (Variable Drive - VFD) | 0.5HP 3PH 50Hz |
| Length of The Machine | 1200mm |
| Width of The Machine | 650mm |
| Height of The Machine | 2000mm |
| Net Weight | 750kg (approx) |
| Gross Weight | 900kg (approx) |
| Shipping Volume | 3 m3 |
