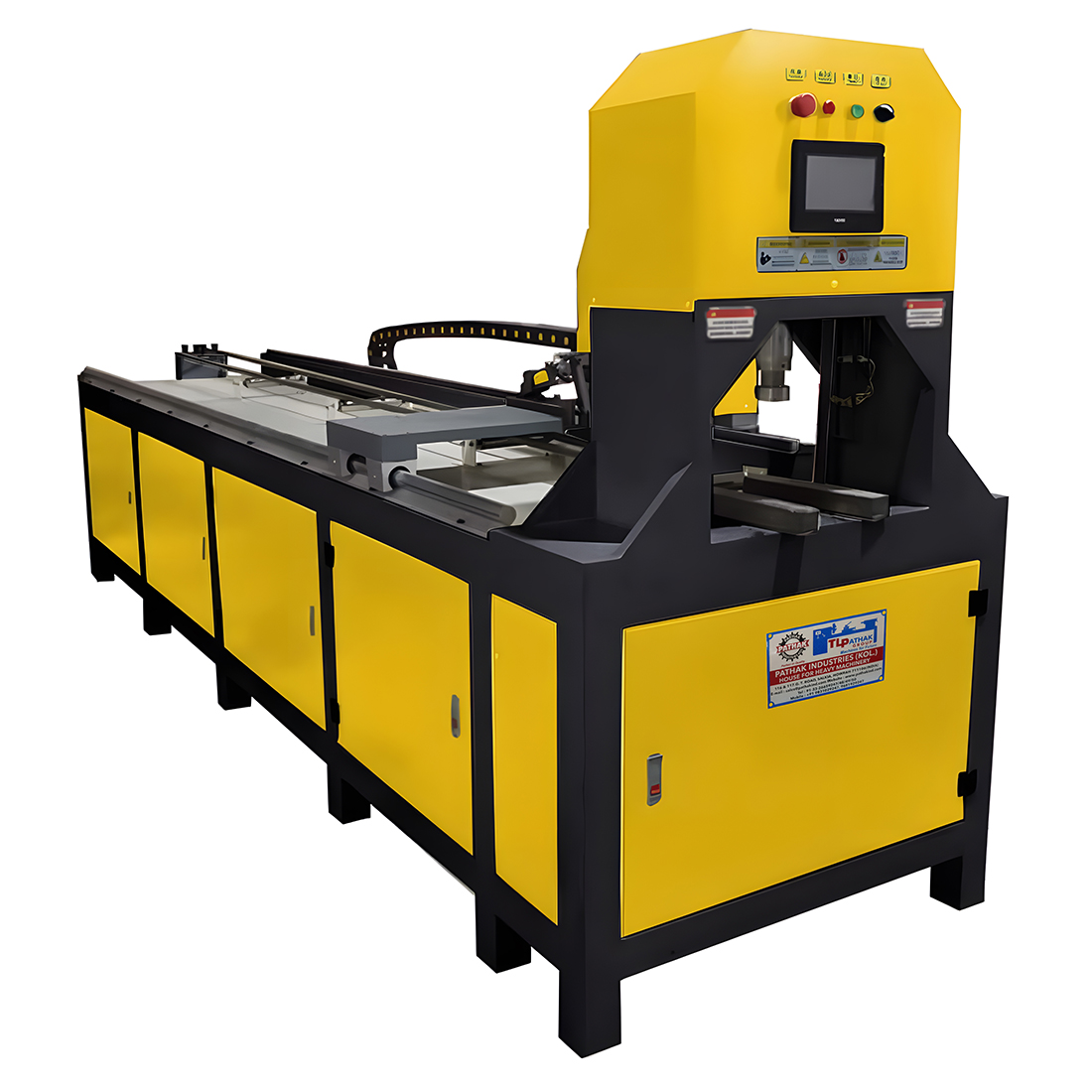

CNC Angle Notching Machine
Pipe/Tube Working MachineThe CNC Angle Notching Machine by TL Pathak Group is a cutting-edge solution designed for precision notching of angles in various materials. This technologically advanced machine features computer numerical control (CNC) capabilities, allowing for automated and highly accurate notching operations. With user-friendly controls, it enables operators to program and execute complex angle notching tasks with ease. The machine's robust construction ensures stability and durability, while its versatile design accommodates different angle sizes and specifications. Whether used in metalworking, fabrication, or structural engineering, this CNC Angle Notching Machine from TL Pathak Group delivers efficiency, reliability, and the precision required for intricate notching applications, contributing to enhanced productivity in manufacturing processes.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Model | TLPCAN-01 | TLPCAN-02 | TLPCAN-03 |
| Product Size | 1100-100-1600 mm | 1100-100-1600 mm | 1100-100-1600 mm |
| Main Motor Power | 3 KW | 4 KW | 5.5/7.5 KW |
| Power Supply/Frequency | 220 V/50 Hz | 380 V/50 Hz | 380 V/50 Hz |
| Specification of Cylinder | 80/100/125 mm | 80/100/125 mm | 100/125/150 mm |
| Stroke of Punch | 100 mm | 100 mm | 100-120 mm |
| Force of Impact | 150 Kn/12 Mpa | 150 Kn/14 Mpa | 150 Kn/16 Mpa |
| Stamping Material and Object | Aluminium,Iron,Stainless Steel | ||
| Thickness of Punch | 1.5 mm | 2.0 mm | 3.0 mm |
| Control Stress | DC 24V | DC 24V | DC 24V |
| Frequency of Punch | 1-3 | 1-3 | 1-3 |
| Tank Capacity | 30 L | 30 L | 30 L |
| Length of Work | 0-3000 mm | 0-3000 mm | 0-3000 mm |
