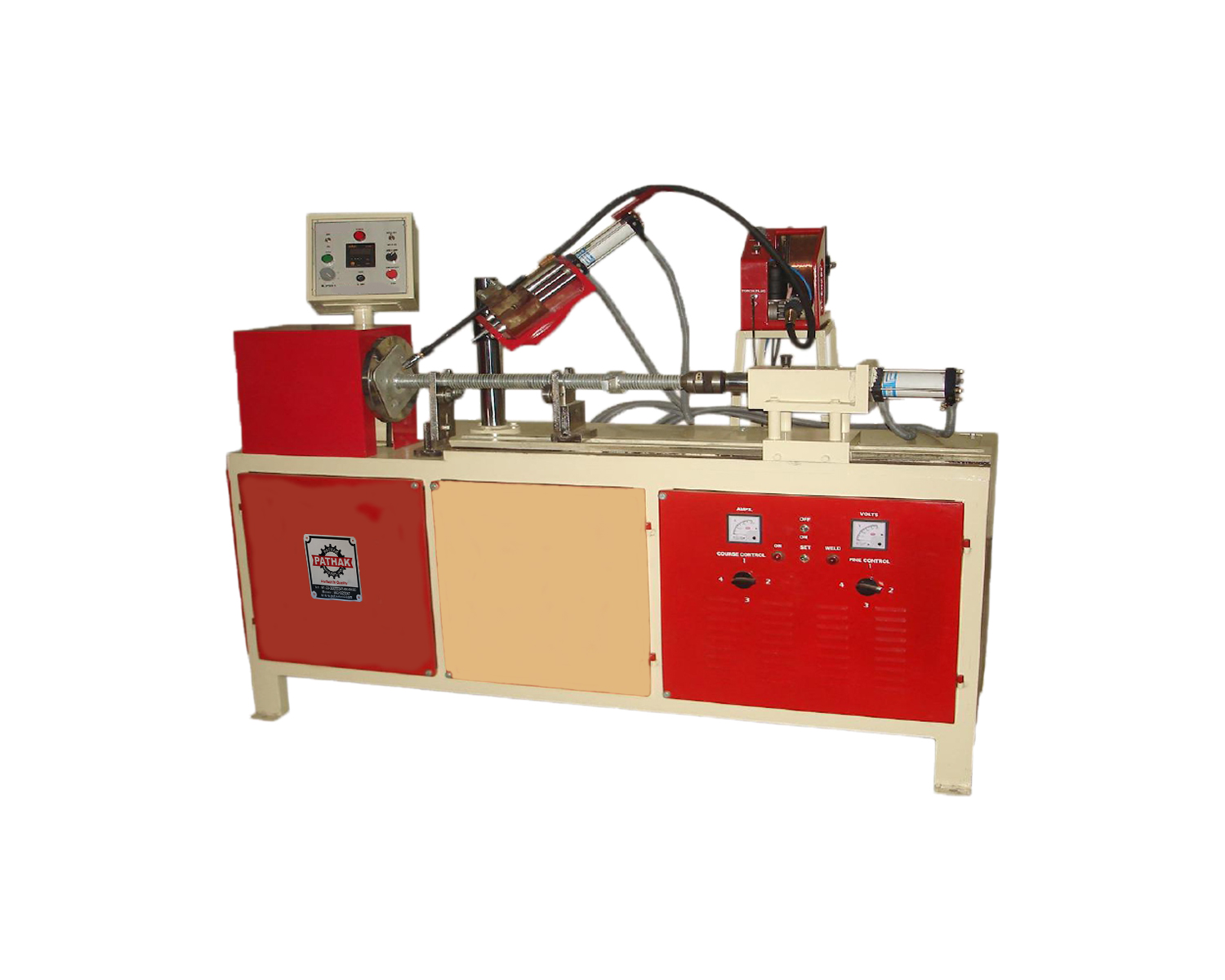

Base U-Head Jack Welding Machine Machine

Scaffolding Machines

Base Jack welding system is designed to increase production and quality of welding on Solid threaded bar and Hollow threaded pipes with Base plate of any size and shape and U-base of any size and shape, however the machine has capability to weld up to 1200 pieces in 10 Hours of Working Shift, there is no need to make welding tag pipe or Solid with Base Plate and U-base, On the other hand machine has the adjustment if any ovallity comes in Job, Suitable for the length from 300mm to 1000mm and Sizes from 28mm to 48mm, length adjustment with screw drive .Machine having 300 Amps of Mig welding installed inside of welding positioner to save space and this makes it user friendly because all controls of machine are in front of the operator one can adjust accordingly. This System comes with all Standard accessories required for make welding operation

From ₹
425,000

Request Catalog

Order By Phone

Shipping Information Usually dispatched With In business days

+91-9124009247 OR Call Me Back
Specification Base / U-Head Jack Welding Machine Machine
Input voltage 3-phase 380- 415 V
Control system power 1kw
Motor power .86 kw
Speed 6-25 s/round
Poling 0.5-3m( 4-8 pics)
Welding torch distance Adjustable
Motion way Pneumatic
Welding angle 0-600°
Maximum workpiece number 1 pics
Dimension 180Å~800Å~1700 mm
Machine area 1 Å~2. m
Weight 800 Kg
Control system input voltage 3-phase 380- 415 V
Equipment characteristics Equipment suitable
