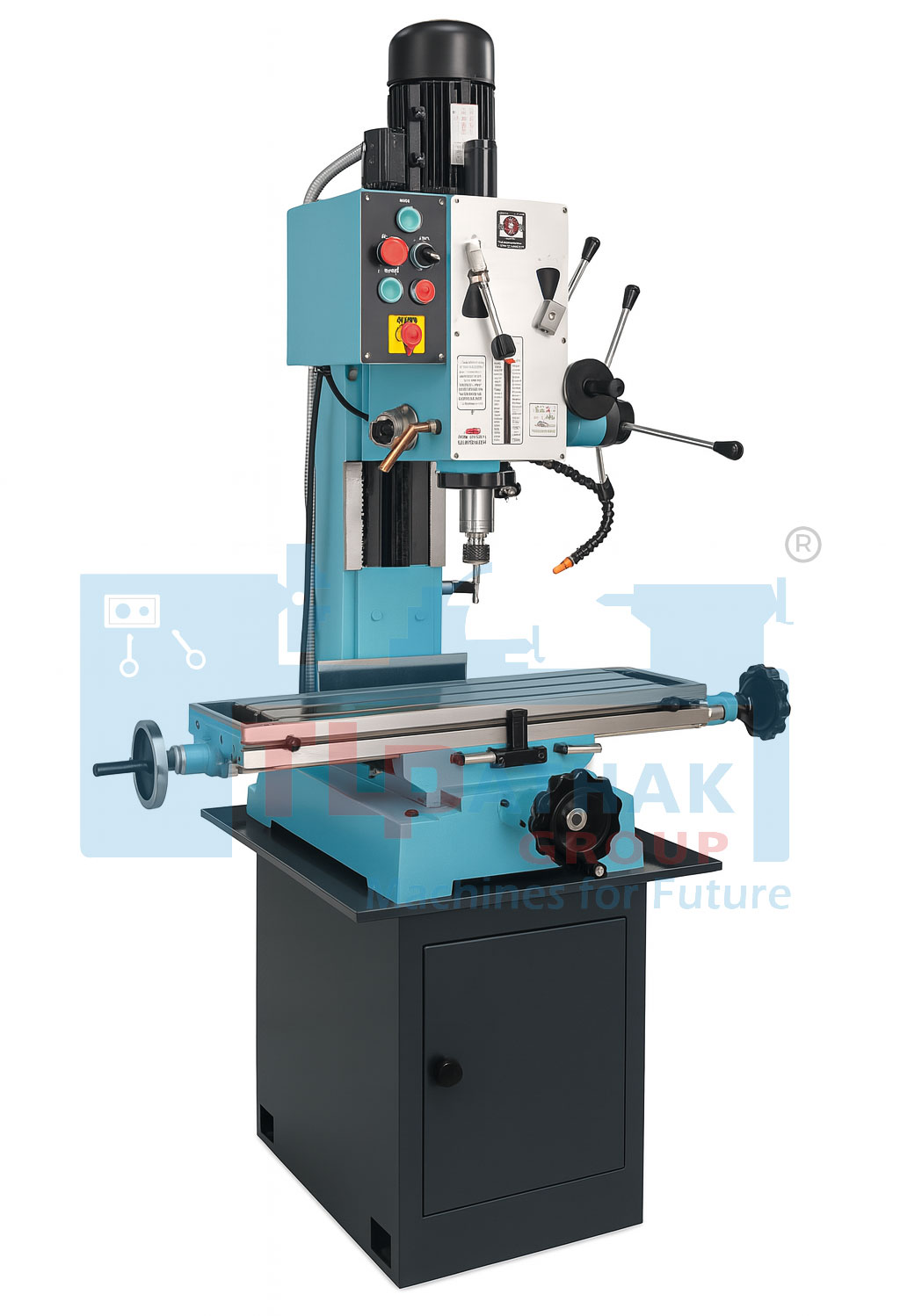

Drilling Cum Milling Machine With Stand
Drill MachinesThe drilling cum milling machine with stand offered by TL Pathak Group in India is a versatile machine that can perform both drilling and milling operations. It is designed for precision work and is suitable for use in a variety of industries, including automotive, aerospace, and manufacturing.
The machine is equipped with a powerful motor and features variable speed control, allowing for a range of cutting speeds to be achieved. The machine also has a large work table that can be adjusted in height and angle, making it suitable for a variety of workpieces.
The drilling cum milling machine with stand is constructed with high-quality materials and is built to withstand the rigors of heavy use. It also features a range of safety features to protect the operator during operation.
Overall, the drilling cum milling machine with stand from TL Pathak Group is a reliable and versatile machine that can help increase productivity and precision in a variety of industries.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
| Drilling Capacity | 45 mm |
| Face Milling Capacity | 80 mm |
| End Milling Capacity | 32 mm |
| Tapping Capacity | 4 mm to 20 mm |
| Distance:Spindle Nose to Table | 450 mm |
| Min Distance:Spindle Axis to Column | 260 mm |
| Spindle Travel | 130 mm |
| Spindle Tapper | MT 4 |
| Step of Spindle Speed | 6 |
| Range of Spindle Speed | 80-1250 RPM |
| Swivel Angle of Head Stock Vertically | +- 90 degree |
| Table Size | 800x240 mm |
| Forward and Backward Travel of Table | 200 mm |
| Left and Right Travel of Table | 500 mm |
| Motor Power | 1.50 KW/2 H.P. |
| Net Weight/Gross Weight | 450 Kg |
A Drilling Cum Milling Machine with Stand is a versatile multipurpose machine designed for both drilling and light to medium-duty milling operations. Equipped with a sturdy stand for enhanced stability and ease of use, it is widely used in workshops, tool rooms, and small-scale manufacturing units.
Key Features:
| Dual Functionality: Combines drilling and milling in one machine, saving space and increasing versatility. |
| Sturdy Stand: Integrated or detachable stand ensures vibration-free operation and ergonomic working height. |
| Geared Head or Belt Drive: Allows adjustment of spindle speed to suit various materials and operations. |
| Adjustable Table: Precision cross-slide work table for accurate positioning in both longitudinal and transverse directions. |
| Tilting Head (optional): Some models offer a tilt head for angular drilling and milling. |
| Manual or Motorized Feed: Feed options for spindle and table allow precise material removal. |

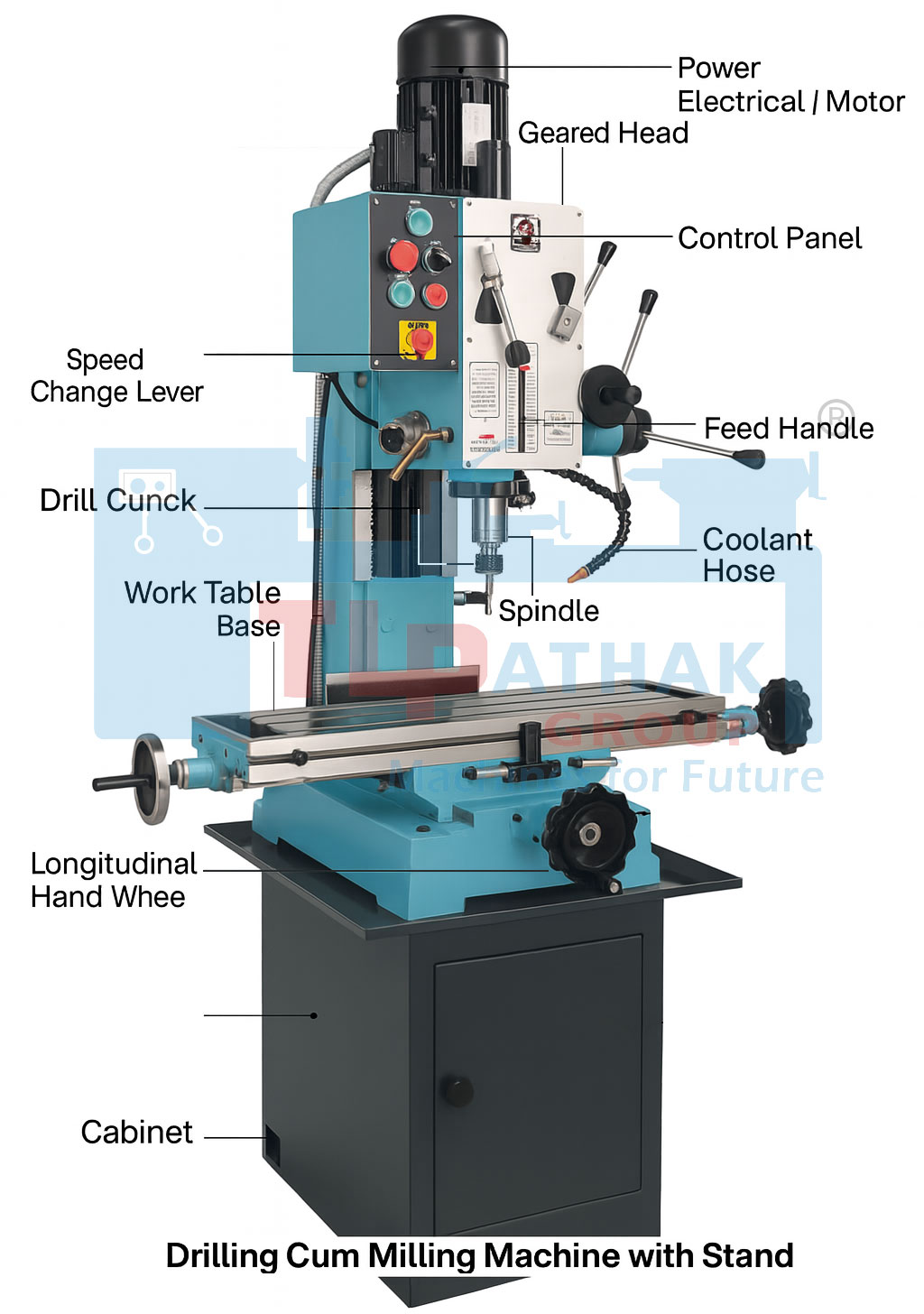

3D angled front view with all parts labeled for Drilling Cum Milling Machine With Stand
Small component fabrication in metal and plastic
Tapping and countersinking
Face and end milling
Slotting and keyway cutting
Precision drilling
