Busbar Bending Punching Cutting Machine

Busbar Machine

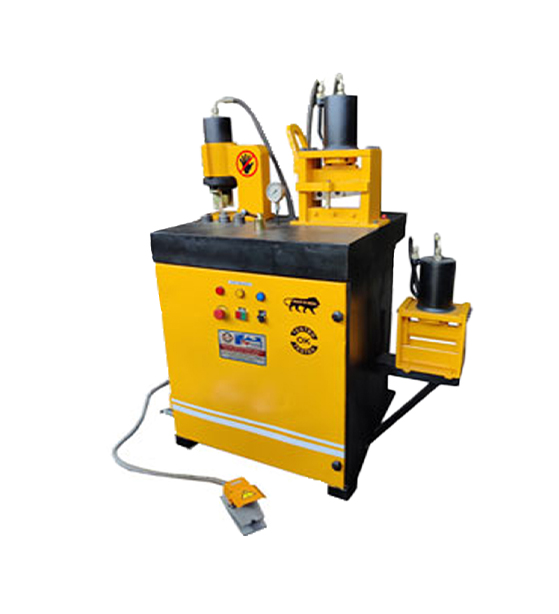

The Busbar Bending Punching Cutting Machine offered by TL Pathak Group in India is a multifunctional tool used for bending, punching, and cutting copper and aluminum busbars used in switchboards, transformers, and other electrical applications. It is a hydraulic machine that can perform these three operations quickly and accurately, thereby reducing the production time and increasing the productivity of the electrical application. The machine has a sturdy construction, is easy to operate, and has a compact design that saves space and allows for easy transportation. Overall, TL Pathak Group's Busbar Bending Punching Cutting Machine is a reliable and efficient solution for bending, punching, and cutting busbars and improving the productivity of electrical applications.

From ₹
288,000 To 345,000

Download Catalog Request Catalog

Order By Phone

Shipping Information Usually dispatched With In business days

+91-9124009247 OR Call Me Back
Punching INDIE 70
Punching capacity of copper row/aluminum row
200*12mm (width thickness) punching mold (mm) 010.5 013.8 017.5 020.5
Punching Force 35T
Cutting CWC-200
cutting capacity of copper row/aluminum row
200*12mm(width thickness) Cutting Force 20T
Bending 200A
Bending capacity of copper row/aluminum row
200*12mm (width thickness) Bending Force 20T
Motor Power 0.75KW
Voltage 220V 50Hz
Table size : (mm) 700(L)*700(W)*850(H)
Oil delivery low2 5L/min, high 0.9L/min
Pressure rating low 0-20, high 20 700kgf cm
Weight 207kg
Packing wooden box tray packaging
Dimension (mm) 750*960*1220mm
