Suspended Platform

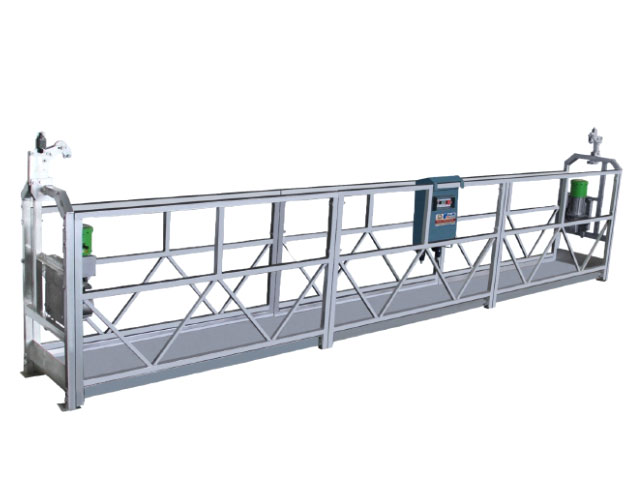

Construction MachinesThe TL Pathak Group's Suspended Platform Machine is an innovative and reliable solution for elevated construction and maintenance tasks. This state-of-the-art equipment ensures safe and efficient access to high-rise structures, allowing workers to perform their tasks with precision and confidence. The platform is suspended by robust wire ropes and equipped with safety features such as emergency brakes and overload protection, ensuring a secure working environment at various heights. With a user-friendly design and advanced technology, this machine enables easy maneuverability and precise positioning, enhancing productivity in construction, painting, cleaning, and maintenance projects. TL Pathak Group's Suspended Platform Machine is a testament to their commitment to delivering top-notch, safety-focused solutions for vertical access challenges in the construction and maintenance industries.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Model | TLPSP | |
| Platform Dimension | 8mm | (1500+1500+2000+2500) x 700x1100mm |
| Suspension Mechanism | Projecting Length | 1300-1500 (adjustable distance 200)mm |
| Adjustable Height | 1200-1600 (adjustable distance 100)mm | |
| Length | 6000mm | |
Weight |
Platform | 335 kg |
| Suspension Mechanism | 210 kg (without counter weight) | |
| Hoist | Type - LTD80 | |
| Capacity - 1.8 KW | ||
| Voltage - 380 V | ||
| Speed - 8-10 m/min | ||
| Rated Lifting Force - 8KN | ||
| Hoist Weight - 48kg x 2 | ||
| Safety Box Specification | Type - LSF 30 | |
| Permission Force of Impact - 30 KN | ||
| Locking Cable - 30-80 | ||
| Weight - 5.5kg x 2 | ||
| Electrical Control Box | 14 kg | |
| Steel Wire Rope | 4 rope x 25 kg | |
| Electric Wire (4x50) | 22kg | |
| Safety Rope | 13 kg | |
| Complete Machine (without count weight) | 800 kg | |
| Front Basket Fence Height | 1050 mm | |
| Back Basket Fence Height | 1200 mm | |
