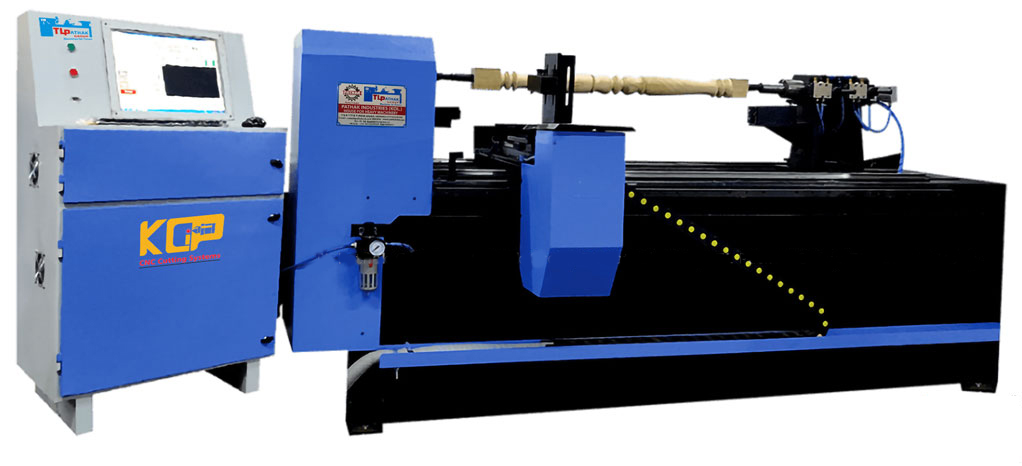

Cnc Wood Turning Machine for Roman Pillar Column
CNC MachinesWe are one of the Best producers and manufacturers of computer numerical control wood turning machines for Roman pillar columns in the market for the past few years and we provide the best quality machines at a very affordable price. The machine is manufactured with two chisels; one is made to use for roughing and other one is made for finishing the work.
Applicable Field
CNC wood turning machine EA-TL1530ST is ideal for the production of wood Roman pillars, columns handrails, baseball bats, India clubs, and more. The Quality of the surface turned by lathe is smooth and clean; please refer to the following photo.
Features
- Autocenter - Fully Automatic
- Single Cutter Turning
- Auto Tool Zero
- Easy Design Software Training
From ₹
658,000
To
932,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Model No. | KCP-CWT1 |
| Lathe Type | Wood Working CNC Lathe |
| Machining Capacity | Wood Turning only |
| Applicable Wood Turning Blank Diameter | 20 to 300mm (0.78" - 11.8:) |
| Applicable Wood Turning Black Length | 100 to 1,500 mm (4"-59") |
| Rotary Axis Quantity | One - Turns one piece of wood at a time |
| Chisels Quantity | Two- one roughing tool and one finishing tool |
| Electric Spindle | Without |
| Rotary Motor Driver | VFD Inverter |
| Motor for Linear Motion | Stepper |
| Controller | Rich Auto Now A132 |
| Communication Language | *** dxf, ---mmg |
| Tail Stock | Air actuated tailstock |
| Compressed Air Requirement | 0.6 to 0.8 Mpa |
| Machine Working Power | AC380V/3Ph, or AC220V/3Ph, or AC220V/Single Ph. or Others (Running Current : 16A) |
| Machine Working Frequency | Both 50Hz and 60Hz |
| Cicruitry Protection | Short Pass Protection |
| Net Weight | 1460 KGS |

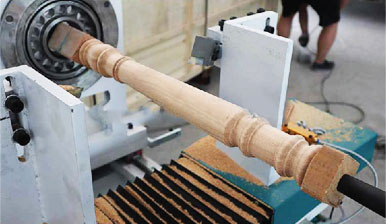

CNC Wood Turning Machine Application Image
