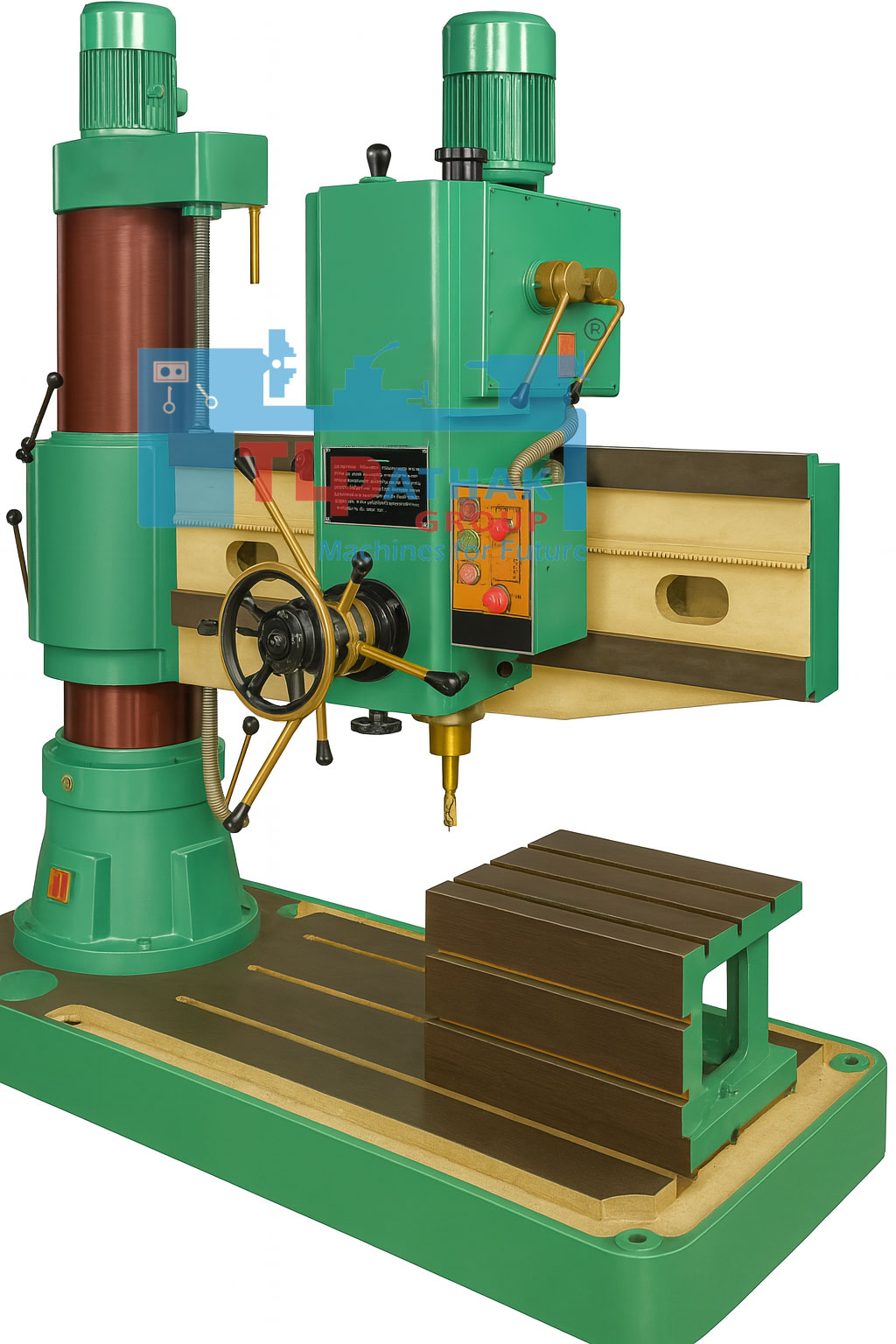

All Geared Radial Drill Machine RD Series
Drill MachinesThe All Geared Radial Drill Machine (RD Series) is a high-performance drilling machine used in heavy-duty industrial applications for drilling, tapping, reaming, and boring operations on a variety of materials including cast iron, steel, and other hard metals. Its radial arm and gear-driven head allow for precise and powerful drilling over a wide area, making it ideal for large and heavy workpieces.
Advantages:
- High drilling capacity for tough metals like stainless steel, cast iron, and alloys.
- Saves time by enabling movement of the drilling head instead of repositioning workpieces.
- Precision control through gear settings and adjustable feed.
- Durable and long-lasting, suitable for continuous industrial use.
From ₹
550,000
To
750,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
| MODEL | RD40 | RD50 | RD65 |
| Drilling Capacity (mm) | 40 | 50 | 65 |
| Drilling capacity in cast - IRON (C.I.) | 46 | 56 | 70 |
| Tapping in steel | 27 | 42 | 50 |
| Spindle travel (mm) | 150 | 250 | 300 |
| Spindle Taper | MT-4 | MT-4 | MT-5 |
| No. of spindle speed /Range | 9 (50-805) | 9 ( 50-805) | 9 (50-805) |
| Range of power feed | 0.115 | 0.115 | 0.115 |
| Optional feed 6 | 0.13-1.10 | 0.13-1.10 | 0.13-1.10 |
| Column Diameter (mm) | 228 | 280 | 330 |
| Max /Min Dist.Spindle center to Col . Center | 1160/550 | 1325/615 | 1700/700 |
| Horizontal Movement of Drilling Head | 510 | 710 | 1000 |
| Max/Min Dist.Spindle Nose to Base plate | 1030/450 | 1080/480 | 1120/460 |
| Vertical Movement of Radial Arm | 580 | 600 | 660 |
Working surface of table (mm) |
560 x 460 | 560 x 460 | 400 |
| Height of Box Table | 400 | 400 | 1400x850 |
| Working surface of base plate (mm) | 800 x 670 | 1020 x 800 | 210 |
| Height of the Base plate | 170 | 190 | 5/1440 |
| Drilling Head motor (HP/RPM) | 2/1440 | 3/1440 | 3/1440 |
| Elevator Motor(HP/RPM) | 1/1440 | 2/1440 | 2050 x 990 |
| Base plate dimension (L x W) | 1330 x 820 | 1680 x 930 | 2440 |
| Total Height of the Machine (Approx) | 2250 | 2360 | 3100 kg. |
| Weight (Approx) kg. | 1750 | 2350 | 2950 |
We are known for our quality as we manufacture our machines using the high strength cast and alloy steel material. Our geared radial drill machine with RD series is compatible, well-built, dependable, efficient, and durable. However, there is no need to pay much for its maintenance cost. The price of this machine is affordable.

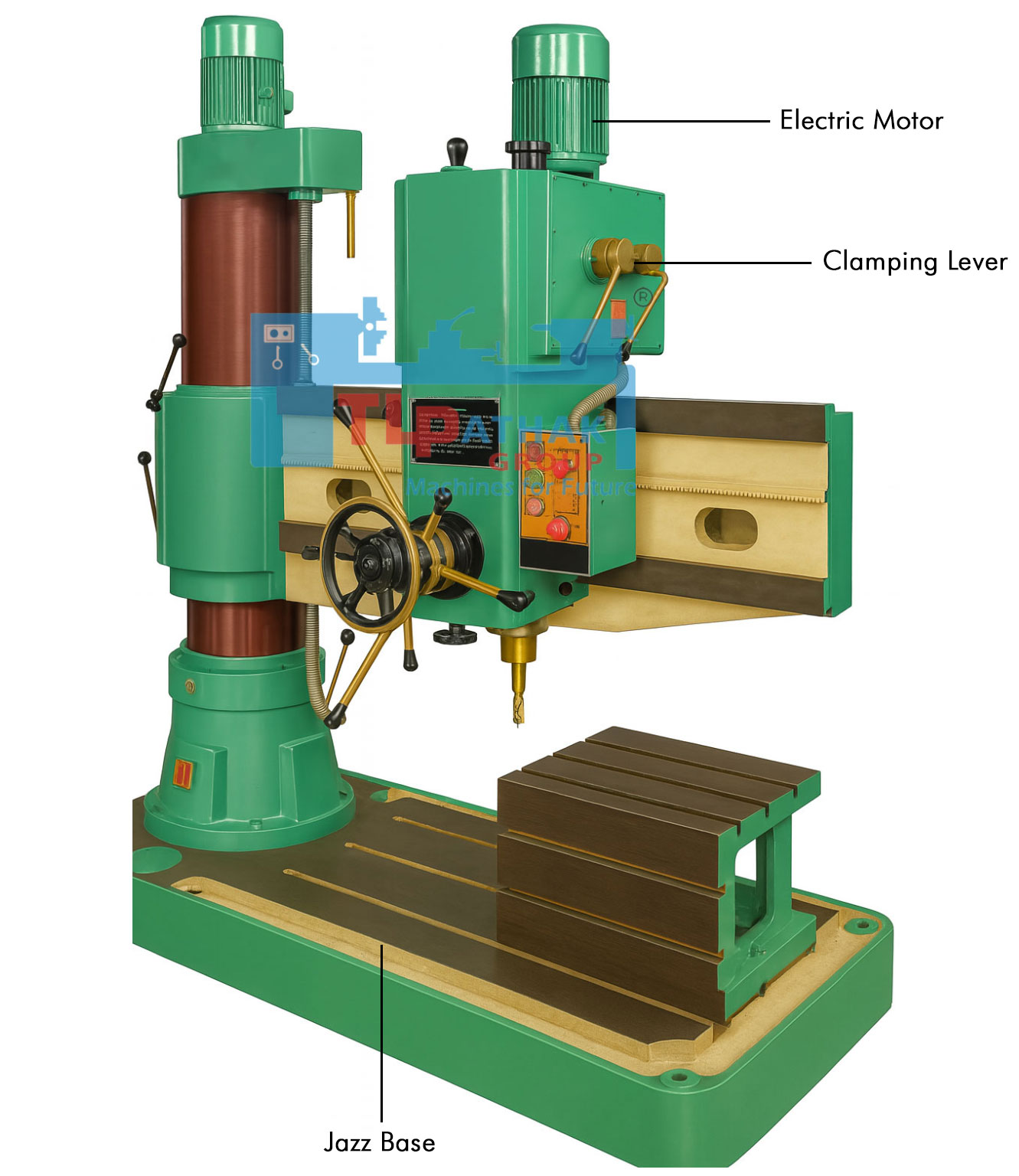

3D angled front view with all parts labeled for All Geared Radial Drill Machine RD Series
Key Features:
| All Geared Drive System: Ensures consistent power transmission and allows easy speed changes for various materials and operations. |
| Radial Arm Movement: The arm rotates 360° and can be raised or lowered along the column, allowing flexibility in positioning the drill head. |
| High Drilling Capacity: Suitable for large-diameter drilling often up to 50 mm or more depending on the model. |
| Auto Feed System (Optional in Some Models): Provides controlled and consistent feed rate, improving accuracy and reducing operator fatigue. |
| Heavy-Duty Base & Structure: Ensures stability and vibration-free operation even under high load conditions. |
| Swiveling & Tilting Drill Head: Enables angular drilling and enhanced versatility for complex machining jobs. |
Ship Building
Mining Industries
Tool Rooms
Workshops
Small & Medium Scale Industries
Fabrication Workshops
Railway Workshops
Face and end milling
Precision drilling
Fabrication units
Drilling metal
Drilling wood
Drilling plastic
