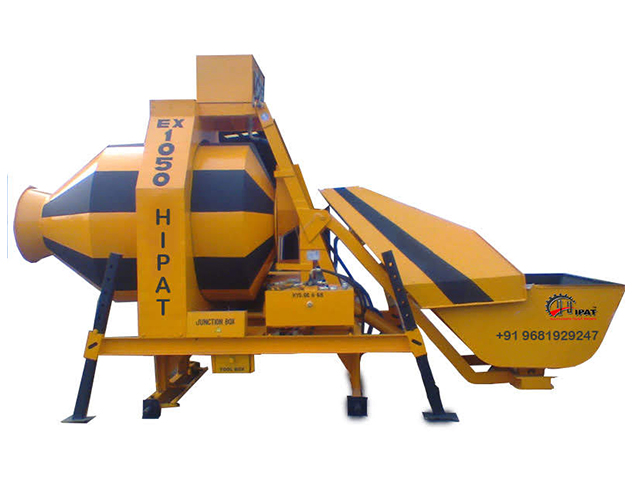

Reversible Drum Mixer Machine
Construction MachinesThis machine comes with a special design Hooper vibrator and a centralized, well-maintained lubricating System. Its main motto is to get all the results perfectly. This machine also comes with printing features. It gets connected with USB servers and plays an important part in printing all the results.
From ₹
425,000
To
688,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
PRODUCT DETAIL |
|||
MODEL |
EX 850-E | EX 1050-E | EX 1400-E |
| Hopper Capacity (DRY) | 850 kg | 1100 kg | 1400 kg |
| Batch Capacity (WET) | 0.4 m3 | 0.5 m3 | 0.66m3 0.4m3 |
| Machine Output/hour * | 9 m3/hr | 15 m3/hr | 18m3/hr |
| Power | 10 HP (7.5 kw) Elec.Motor | 15 HP (7.5 kw) Elec.Motor | 15 HP (11 kw) Geared Motor |
| Weighing Type | 3 Bin | 3 Bin | 3 Bin |
| Water Dozing | Digital | Digital | Digital |
| Water Tank Capacity | 150 Litres | 200 Litres | 250 Litres |
| Weighing System | Local Cell Based Weighing System with Digital Display |
||
| Hydraulic Pump | 19 Ipm @ 170 bar |
19 Ipm @ 200 bar | 27 Ipm @ 200 bar |
| Gear Ring & Roller | Accurately Machine With Gear Cutting Operation Supported by Heavy Duty Guide Rollers | ||
Pneumatic Wheels (4 Nos) |
Pneumatic Wheels (4 Nos) | Pneumatic Wheels (4 Nos) | |
Wheels 526 |
6'' x 16'' | 6'' x 16'' | 7'' x 19'' |
| Jack Leveling | Pin Type (4 Nos.) | Pin Type (4 Nos.) | Pin Type (4 Nos.) |
| Dimensions (L x W x H) | 4000 x 1650 x 2700 mm | 4690 x 1890 x 2900 mm | 4816 x 2000 x 3100 mm |
| Weight (Approx) | 1830 kg | 2280 kg | 2950 kg |
| Special Attachment Fitted Each Machine |
Special Design Hopper Vibrator B) Centralized Lubricating System |
||
| Optional Features | Printing System with USB B) Admixer Dozing C) With Conveyor System |
||
