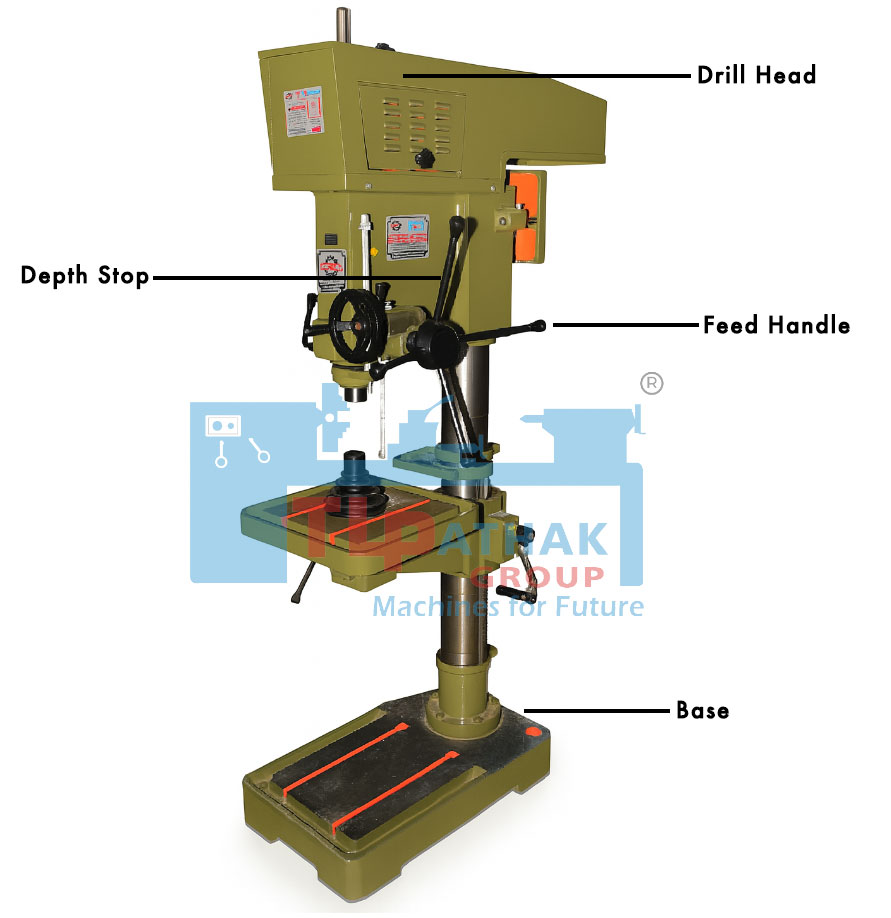

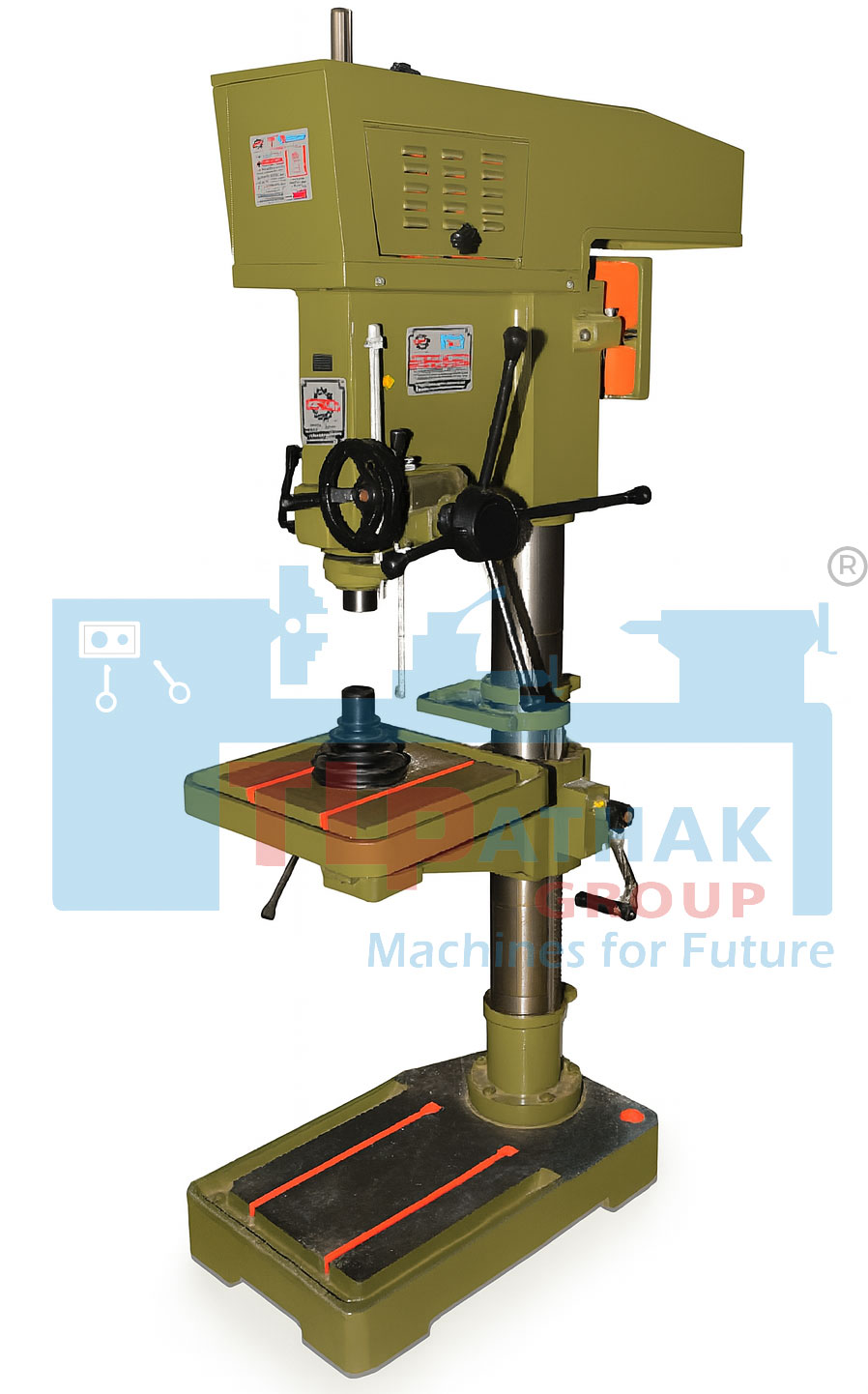

Pillar Drill Machine ps-20
Drill MachinesWe are considered one of the leading manufacturers and exporters of pillar drill machines. Our pillar drill machine PS-20 can drill up to 20 mm into mild steel and has a tapping capacity of 16 mm. It is a very powerful machine and needs the lowest maintenance from your end. However, our technicians did not charge any installation price.
From ₹
40,000
To
58,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Model | PS-20 |
| Titling working table | Fixed |
| Drilling capacity | 20 mm |
| Pilllar diameter | 74.30 mm |
| Spindle nose to table distance | 660 mm |
| Distance from spindle nose to base distance | 900 mm |
| Distance from spindle centre to pillar surface (in mm) | 200 (max) |
| Table level | 200mm |
| Taper in spindle | MT-2 |
| number of speed | 8 speed |
| Range of speed (RPM) | 87 to 3324 |
| Table size (in mm) | 260 x 260 |
| Base size (m/c area in mm) | 480 x 300 |
| Overall base size (in mm) | 490 x 310 |
| Spindle travel | 130 mm |
| Pillar length | 1170 mm |
| Overall height with pulley gurad | 1420 mm |
| V-belt section | A-42 |
| Weight (Approx) | 100 kgs |
| Motor 1440 RPM 3 Phase 440 Volts | 1 H.P |
| Shipping wooden case | 660x380 |
| Inner size LxWxH | 1400 mm |
