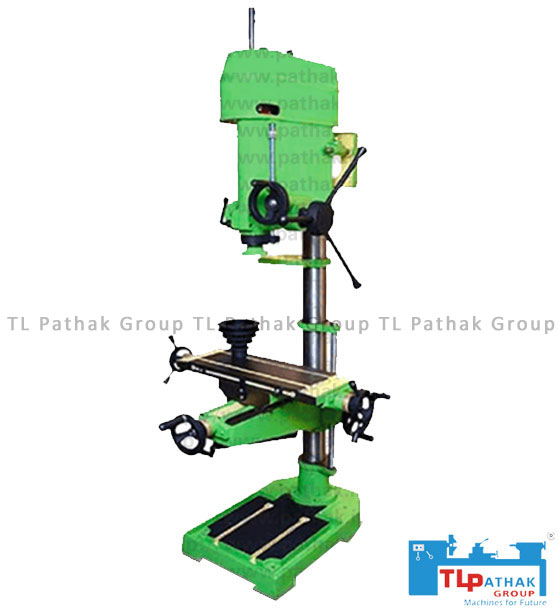

Drilling Cum Milling Machine DM 25
Drill MachinesWe have built a good reputation in the development and innovation in the field of machine tools as we provide world-class machines accurately and quickly to our customers. These drilling machines are assembled by our dedicated team of skilled craftsmen under the guidance of our experts. This machine can be used for a range of jobs from freely swivelling joints to clamped.
From ₹
58,000
To
88,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| MODEL | DM 25 |
| Drilling Capacity | 25 MM |
| Spindle Speed | SIX SPEED |
| Speed Range | 73 to 1850 RPM |
| Spindle Nose | MT-3 |
| Spindle Center to Column | 225 MM |
| Spindle Travel | 150 MM |
| Table Travel | 480 MM |
| Maxi. Distance Spindle to Table | 700 MM |
| Maxi.Distance Spindle to Base | 940 MM |
| Working Surface of Base | 300 X 320 |
| Working Surface of Table | 160 X 520 |
| Column Diameter | 74 MM |
| Machine Base | 470 X 320 |
| Motor | 1 HP / 1440 RPM |
| V Belt Size | B-46 |
| Weight of Machine (Approx.) | 150 kg |
| MILLING DETAILS | |
| Cross Travel (Left to Right ) | 300 MM |
| Longitudinal Travel | 150 MM |
| Table Size | 160 x 520 MM |
