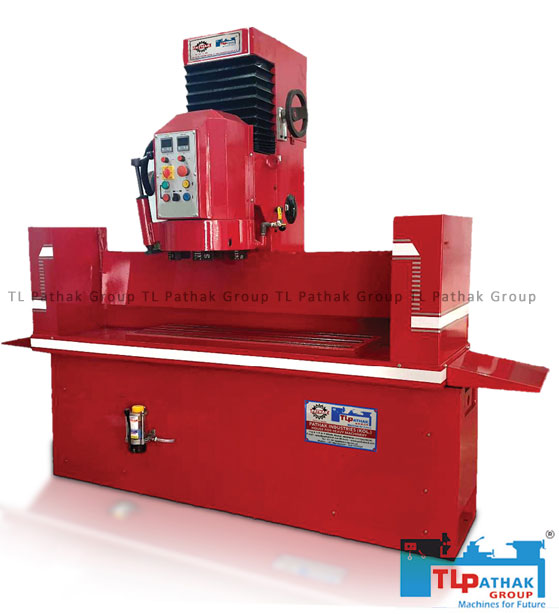

Vertical Head Surface Grinder
Garage MachinesPathak is a leading brand manufacturing best quality Vertical Head Surface Grinder mainly used to provide precision ground surfaces, either to a critical size or surface finish in automobile industries. The machine is made with the latest technology and premium quality raw material under the supervision of our technical team, which allows it to perform smooth functioning.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| TECHNICAL SPECIFICATION | PVSG-1300 | PVSG-1500 |
| Max.Automatic Table Traverse | 1300 mm (51'') | 1500 mm (59'') |
| Head Vertical Traverse | 600 mm (24'') | 700 mm (28'') |
| Max.Grinding Width | 350 mm (14'') | 350 mm (14'') |
| Max.Grinding Length | 1000 mm (40'') | 1200 mm (47'') |
| Distance Between Table/ Grinding Wheel Min./max. | 0-600 mm (0-24'') | 0-700 mm (0-28'') |
| Distance From Column To Table Center | 350 mm (14'') | 350 mm (14'') |
| Segment Wheel Dia | 350 mm (14'') | 350 mm (14'') |
| Grinding Spindle Rotating Speed | 1500 rpm | 1500 rpm |
| Min./max.Table Feed Speed (Steplessly Variable) P/m | 0.2000 mm/ min | 0.2000 mm/min |
| Grinding Spindle Shaft Motor | 5.0 HP | 5.0 HP |
| Head Quick Feed Motor | 0.75 HP | 0.5 HP |
| Hydraulic System Motor | 1.0 HP | 1.0 HP |
| Electric Coolant Pump Motor | 0.12 HP | 0.12 HP |
| Length of Machine | 2400 mm (95'') | 2600 mm (103'') |
| Width of The Machine | 1200 mm (47.25'') | 1200 mm (47.25'') |
| Height of The Machine | 1900 mm (75'') | 2050 mm (81'') |
| Work Space Required (LXW) | 2800 x 1500 mm (110''x 59'') | 3100 x 1500 mm (122''x 59'') |
| Work Height Required | 2050 mm (81'') | 2150 mm (85'') |
| Net Weight | 1500 kgs. (approx) | 1850 kgs. (approx) |
| Gross Weight | 2500 kgs. (approx) | 2850 kgs. (approx) |
| Shipping Volume | 7M | 8M |
