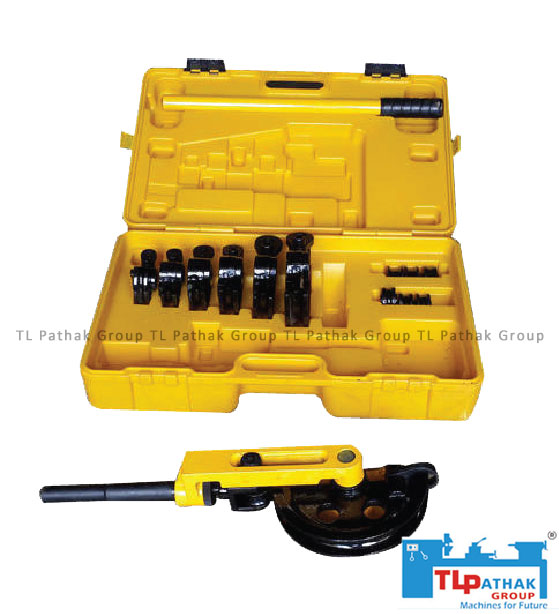

Manual Pipe Bender
Section Bending MachineIt is a manual bending machine that is designed for many purposes like gas pipes, thick steel pipes. It should be bent for more than 5 mins to get the required result. And the angle for bending should be almost 90 degree. It has dual active holders that help in getting the perfect result. This machine operates on a twin active cylinder.
From ₹
16,000
To
35,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Pipe Diameter Range | 10mm-25mm |
| Bending Formers (inc.) | 3/8" ,1/2" ,9/16" ,5/8" , 3/4" ,7/8" , 1'' |
| Bending Formers (mm) | 10mm,12mm,14mm,16mm,19mm,22mm,25mm |
| External Diameter of Half Circle | 80mm,100mm,125mm,140mm,150mm,195mm,195mm |
| Package Dimensions | 540 x 210 x 160mm (21.26'' x 8.27'' x 6.30'') |
| Wall Thickness of Pipe | 0.8-2.0mm |
| Total Length (w/ Handle on) | 86cm (33.5'') |
| Net Weight | 23kg (50.7ibs) |
| Cross Weight | 25kg (55.1ibs) |
Manual Pipe Bender Application
